Modular Prosthetic Knee Joint

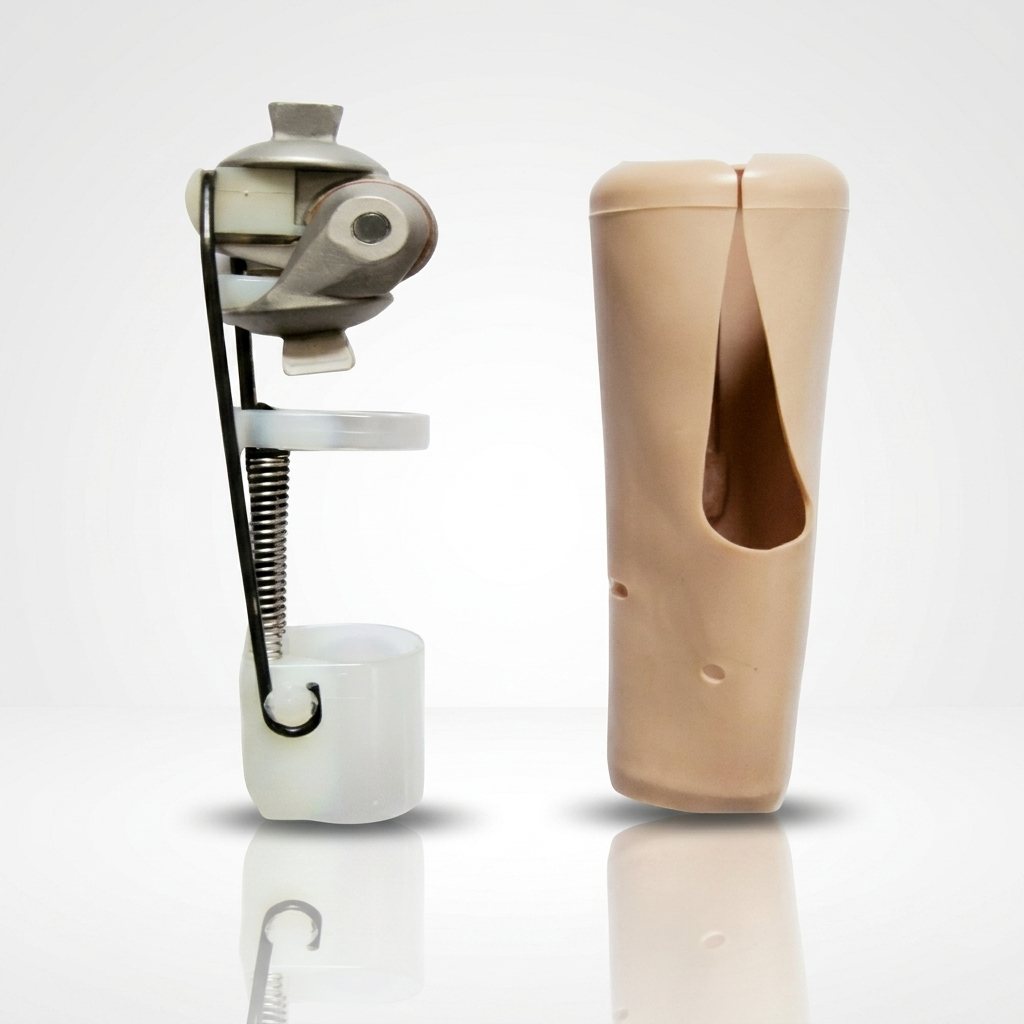

Cosmos-01 (Adjustable constant friction with extension assist mechanism)

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-J01	Casting Steel	645 g	Export Quality	80 kg

Recommendation:
For trans-femoral amputees
With moderate functional levels
Moderate stance phase stability
Moderate swing phase control
Very suitable for longer stump lengths
Not Suitable for amputees with higher functional levels
Description:
The knee axis connects the upper and lower joint sections with bushings. Stance phase stability is achieved by placing the knee axis posterior to the weight-bearing line. Control of the swing phase is independently provided by the Extension Assist and by adjustment of the axis friction.
Technical Data: Knee flexion range: approx. 155 degrees, Height (knee centre- upper edge): mm

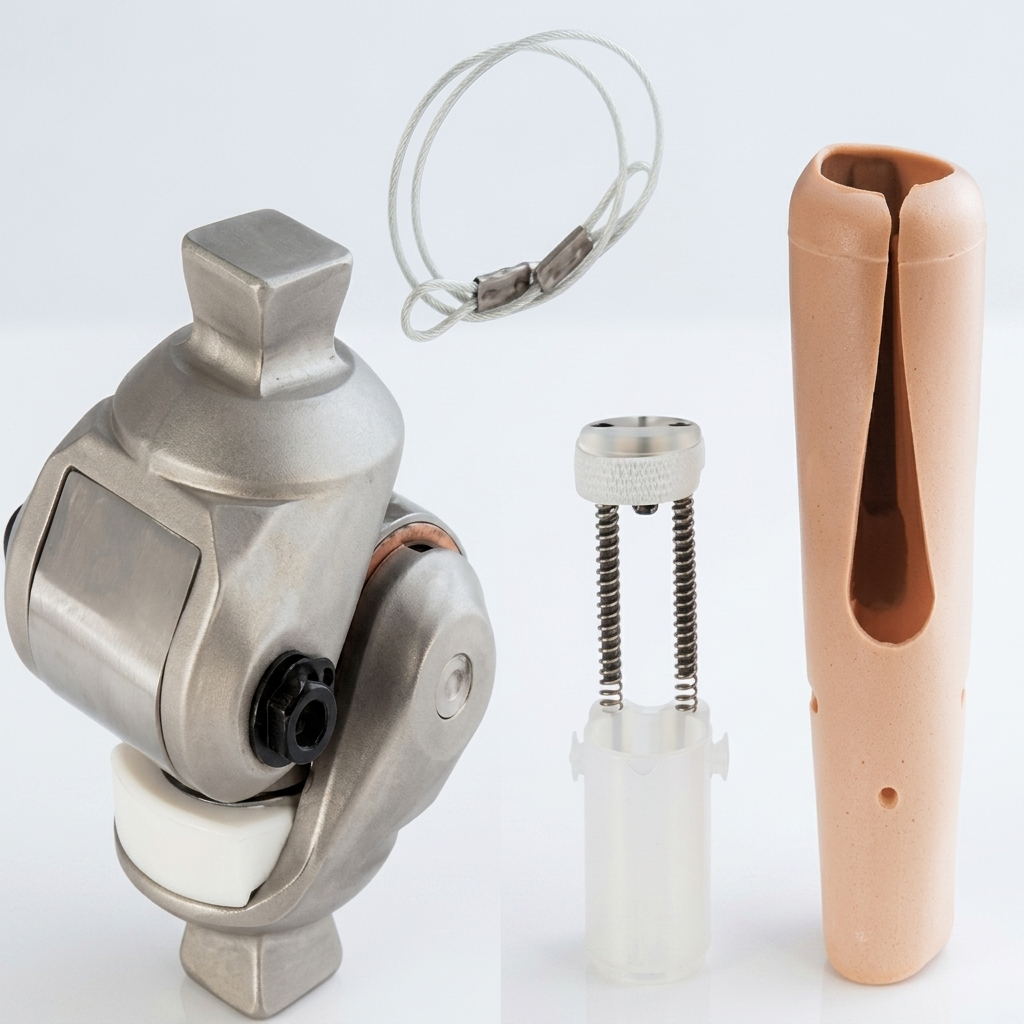

Cosmos-02 (Load actuated locking mechanism)

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-J02	Casting Steel	530 g	Export Quality	100 kg

Recommendation:
For trans-femoral amputees
With moderate functional levels
High stance phase stability
Moderate swing phase control
Not Suitable for amputees withe higher functional levels
Description: The connection between upper and lower joint section is generated by the swing- and friction axis operates as a load depended brake. this secures, in combination with the posterior positioning, the stance phase. The adjustment of the axis friction and spring load control the swing phase.
Technical Data: Knee flexion range: approx 150 Degree, Height (knee center- upper edge): mm

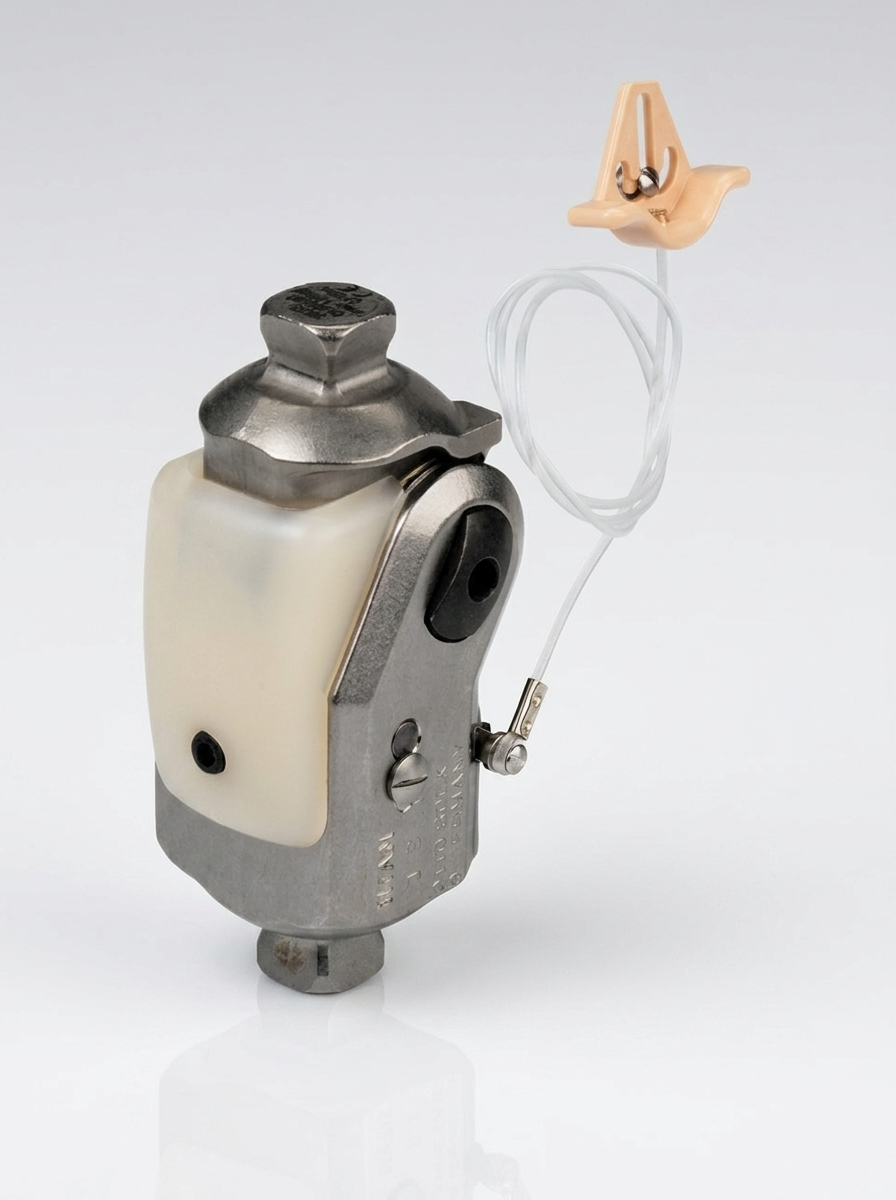

Cosmos-03 (Manual locking with exchangeable extension assist spring mechanism)

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-J03	Casting Steel	590 g	Export Quality	100 g

Recommendation:
For trans-femoral amputees
With moderate functional levels
High stance phase stability
No swing phase control
Not Suitable for amputees with moderate and higher functional level
Description: The knee axis connects the upper and lower joint section with bushing and ball bearings. The adjustable lock secures the knee in extension. de- block of flexion via lock cable. self- acting lock at full extension with the help of the of the extension assist.
Technical Data: Knee flexion range: approx 120 Degree, Height (knee axis center- upper edge): mm

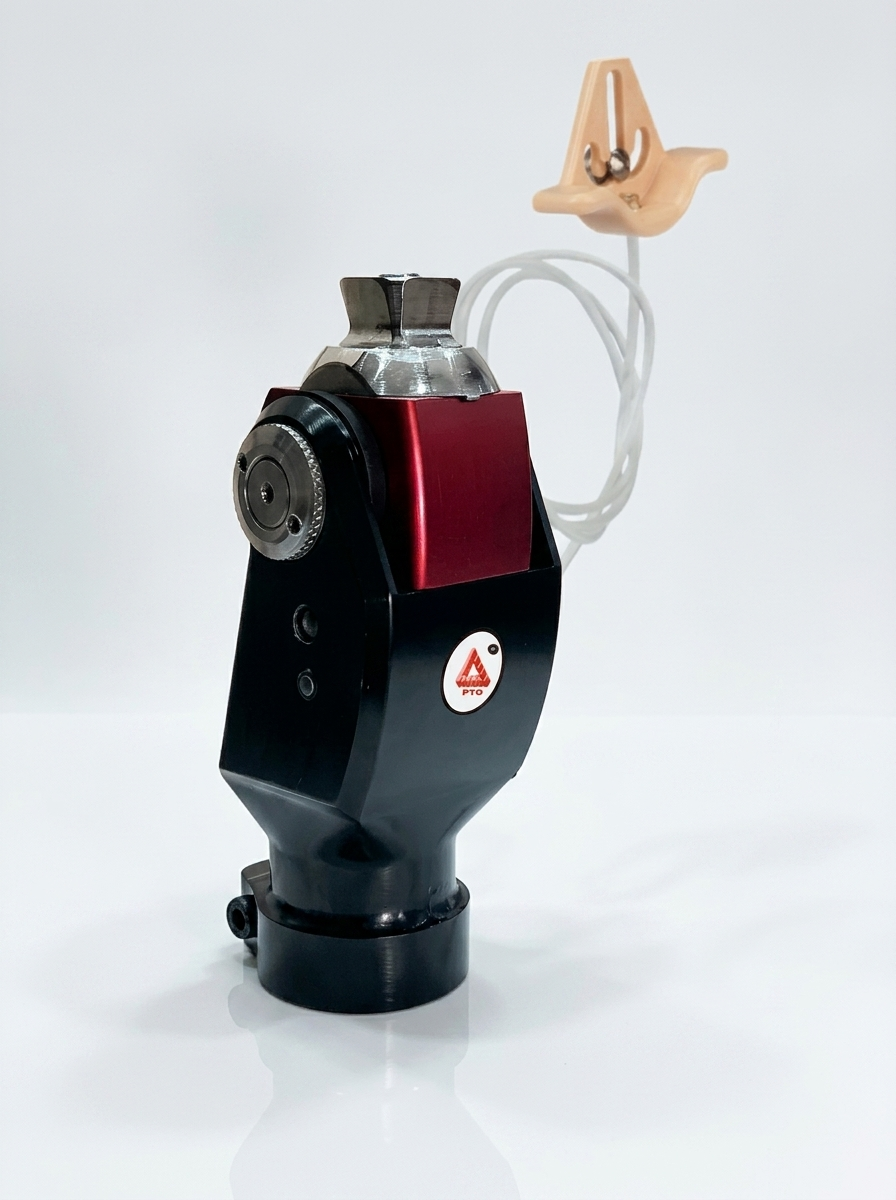

Cosmos-04 (Manual locking with exchangeable extension assist spring mechanism)

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-J04	Casting Steel	590 g	Export Quality	100 kg

Recommendation:
For trans-femoral amputees
With moderate functional levels
High stance phase stability
No swing phase control
Not Suitable for amputees with moderate and higher functional level
Description: The knee axis connects the upper and lower joint section with bushing and ball bearings. The adjustable lock secures the knee in extension. de- block of flexion via lock cable. self- acting lock at full extension with the help of the of the extension assist.
Technical Data: Knee flexion range: approx 120 Degree, Height (knee axis center- upper edge): mm

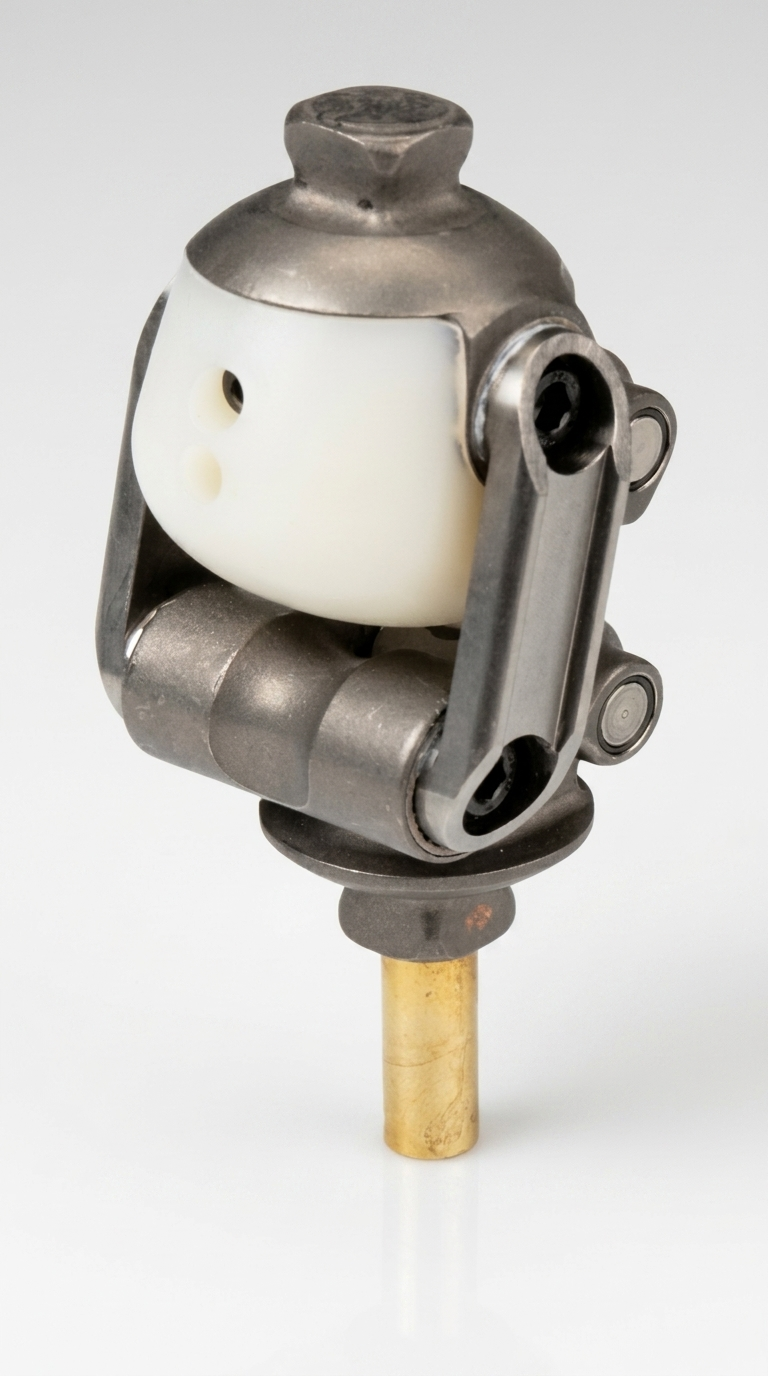

Cosmos-05 (Integrated spring extension assist mechanism)

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-J05	Casting Steel	670 g	Export Quality	100 kg
PTO-J05T	Titanium	N/A	Export Quality	100 kg

Recommendation:
For trans-femoral amputees
With lower functional levels
Medium stance phase stability
Suitable also for hip disarticulating amputees
Not Suitable for amputees with higher functional levels
Description: Upper and lower joint section is connected with linkage bars. The stance phase stability is achieved with the polycentric kinematic (adjustment of the instant center of rotation by adjustment of the stop). The step-less adjustment of the axis friction and of the extension assist spring controls the swing phase.
Technical Data: Knee flexion range: approx 120 Degree, Height (knee axis center- upper edge): mm

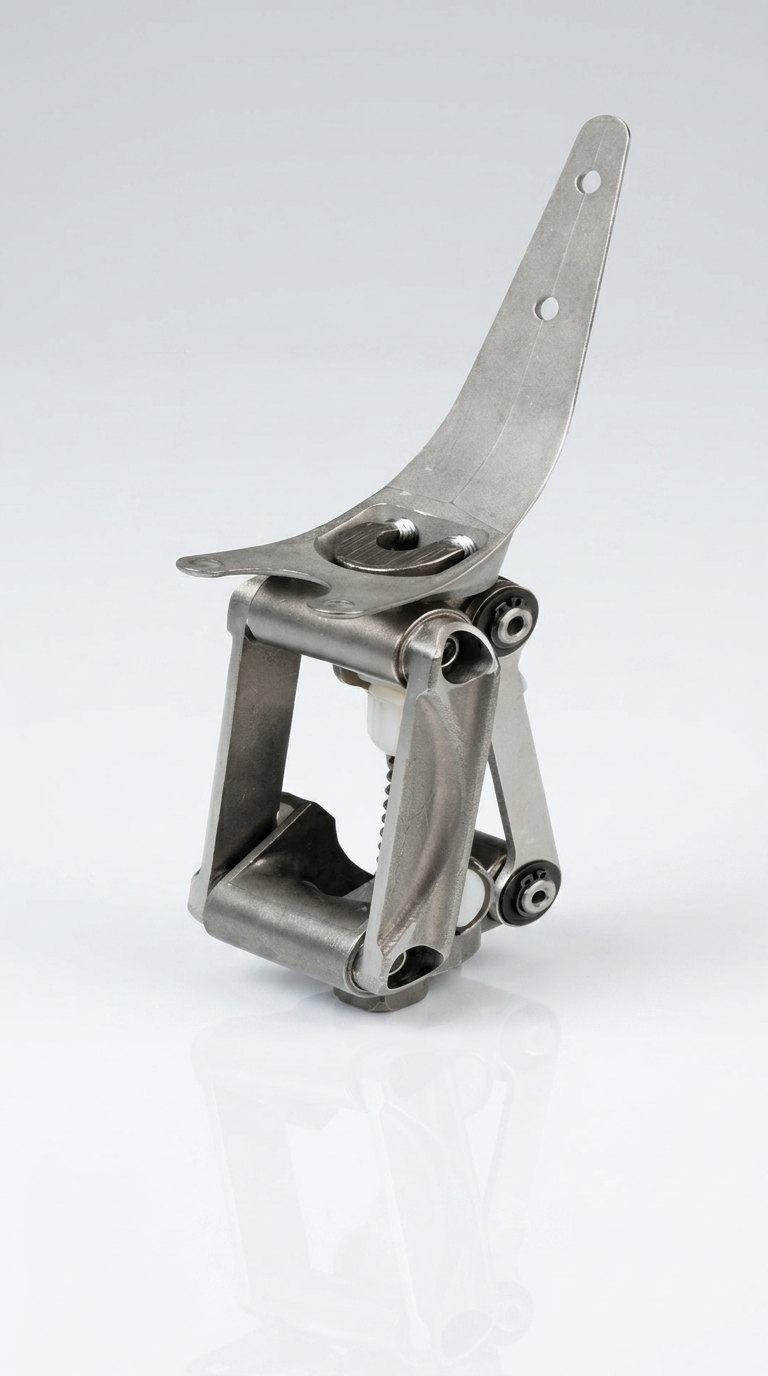

Cosmos-06 (Knee Disarticulation Joint with J-shape socket adaptor, adjustable extension assist)

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-J06	Casting Steel & Titanium	845 g	Export Quality	100 kg

Recommendation:
For knee disarticulating (Polycentric)
With mechanical extension assist
Suitable for max. 100 kg body weight
For knee disarticulating amputees
With lower functional levels
Normal stability
Not Suitable for insecure amputees and those with higher functional levels
Description: The upper joint section with adjustment core and the lower joint section with anterior and posterior linkage bars. The lamination anchor is the detachable connection to the socket. The stance phase stability is achieved through polycentric kinematic. Extension assist and axial friction are booth adjustable.
Technical Data: Knee flexion range: approx 110 Degree, Height (knee axis center- upper edge): 18 mm

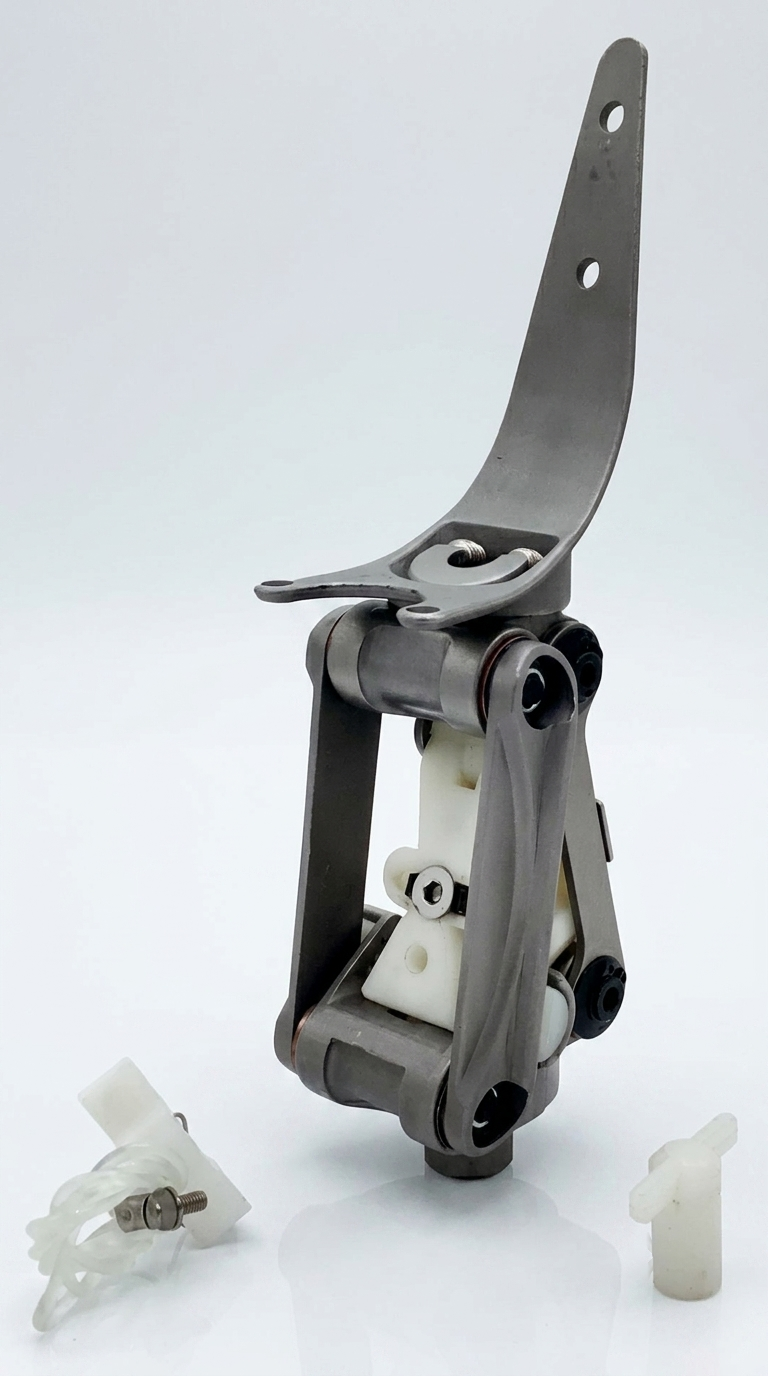

Cosmos-07 (Polycentric Knee Joint (ideal for Knee Disarticulation with J-shape socket adaptor, adjustable extension assist) (WITH LOCK) - CS)

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-J07	Casting Steel	845 g	Export Quality	100 kg

Recommendation:
For knee disarticulating (Polycentric)
With mechanical locking extension assist
Suitable for max. 100 kg body weight
For knee disarticulating amputees
With lower functional levels
Normal stability
Suitable for insecure amputees
Description: The upper joint section with adjustment core and the lower joint section with anterior and posterior linkage bars. The lamination anchor is the detachable connection to the socket. The stance phase stability is achieved through polycentric kinematic. Extension assist and axial friction are booth adjustable.
Technical Data: Knee flexion range: approx 110 Degree, Height (knee axis center- upper edge): mm

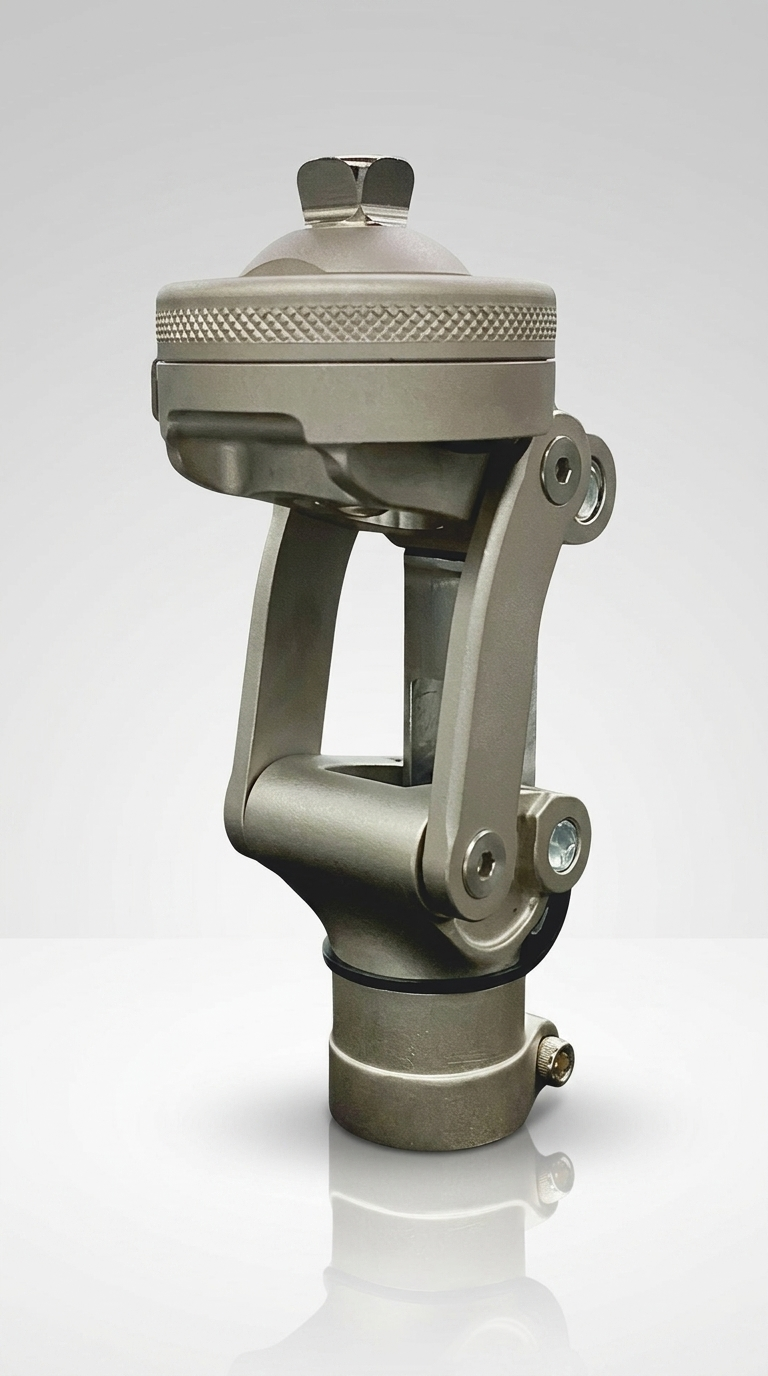

Cosmos-08 (Mechanical Polycentric Knee Joint with Rotator (KENDALL))

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-J08	Aluminum	700 g	Export Quality	100 kg

Features:

Top Rotator Design
Friciton Swing Phase Control
Extension Spring A djustment
Knee Protection Cover Design
Flexion Angle – 145°

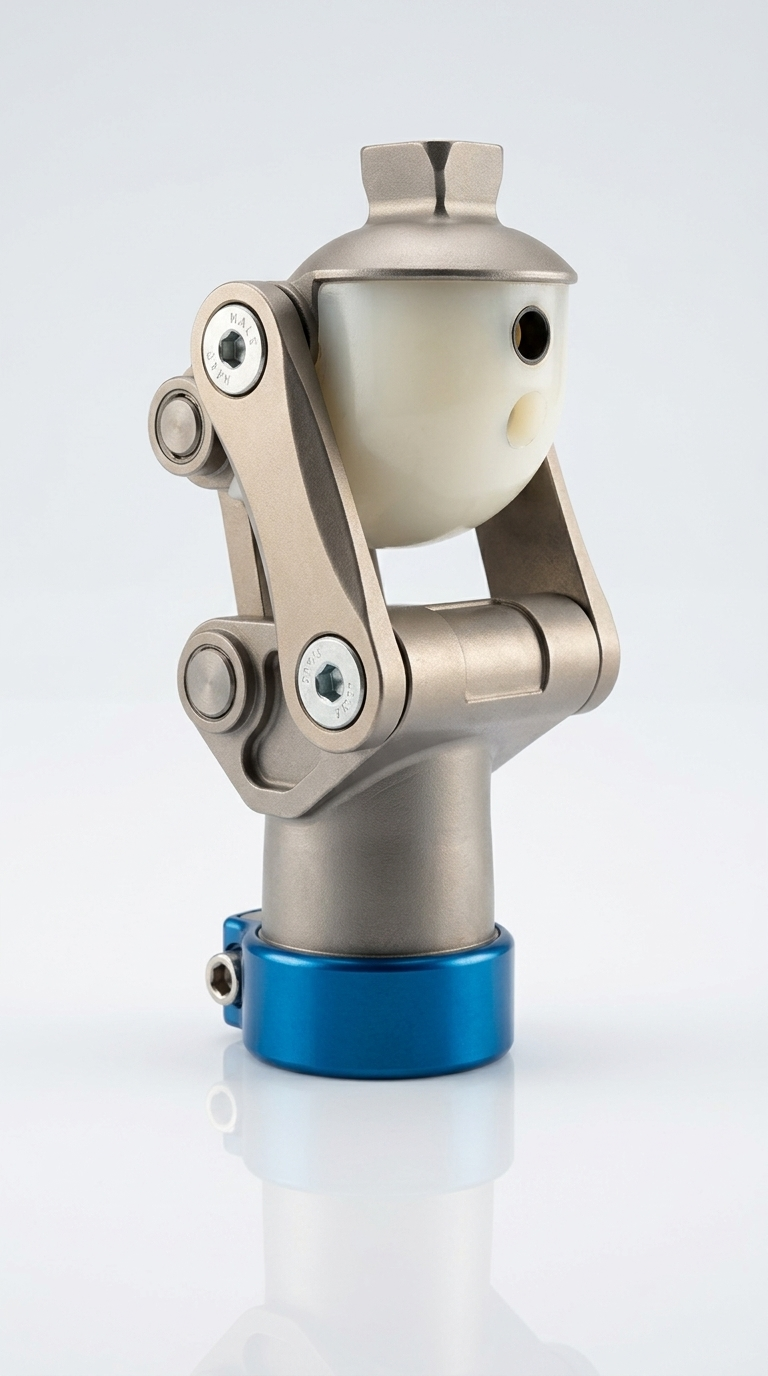

Cosmos-09 (Polycentric Knee Joint (integrated spring loaded extension assist mechanism with pyramidal top and lower end is integral tube adaptor)

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-J09	Casting Steel	670 g	Export Quality	100 kg

Recommendation:
Polycentric
With integrated extension assist
Suitable for max. 100 kg body weight
For trans-femoral amputees
With moderate functional levels
Medium stance and swing phase stability
Suitable also for hip disarticulating amputees
Not Suitable for amputees with higher functional levels
Description: Upper and lower joint section is connected with linkage bars. The stance phase stability is achieved with polycentric kinematic (adjustment of the instant center of rotation by adjustment of the stop). The step-less adjustment of the axis friction and of the extension assist spring controls the swing phase.
Technical Data: Knee flexion range: approx 120

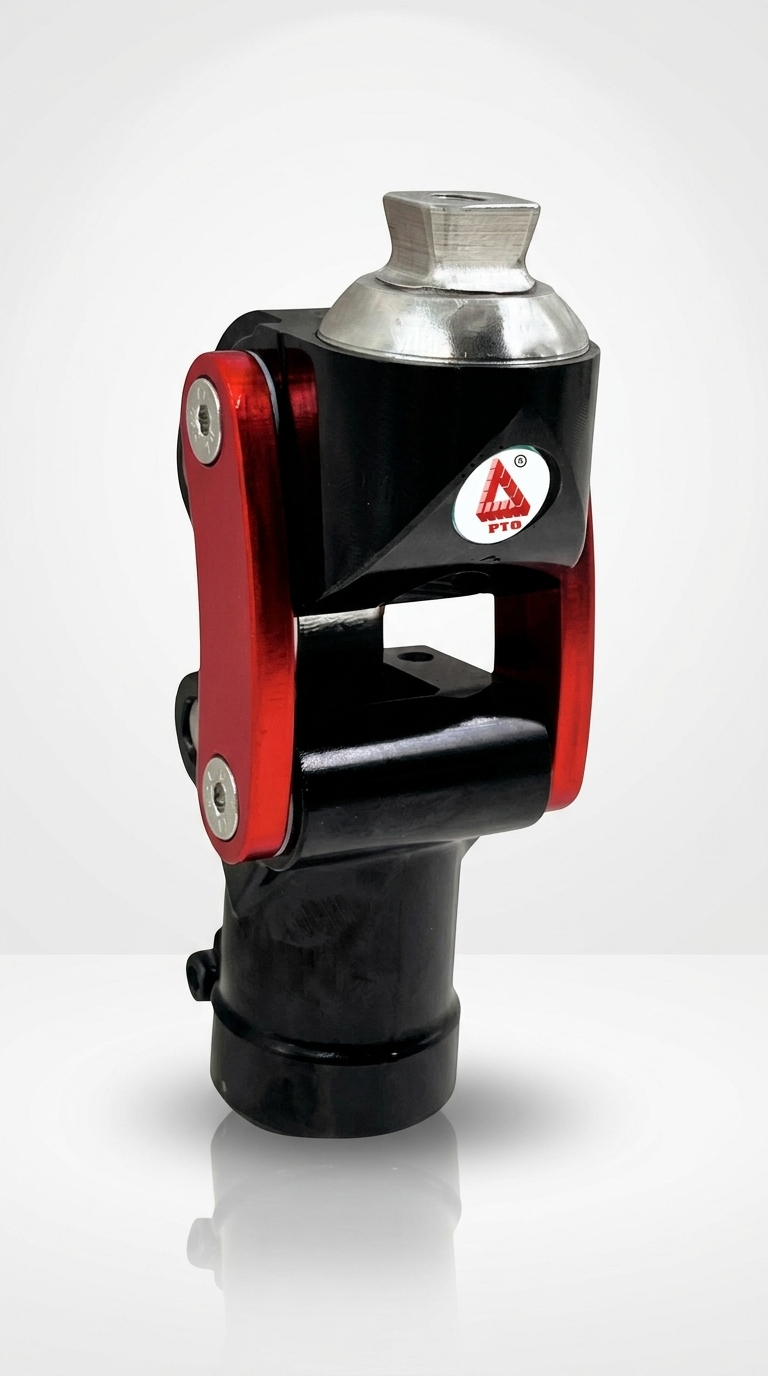

Cosmos-10 (Polycentric Knee Joint (integrated spring loaded extension assist mechanism with pyramidal top and lower end is integr

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-J09	Casting Steel	670 g	Export Quality	100 kg

Recommendation:
Polycentric
With integrated extension assist
Suitable for max. 100 kg body weight
For trans-femoral amputees
With moderate functional levels
Medium stance and swing phase stability
Suitable also for hip disarticulating amputees
Not Suitable for amputees with higher functional levels
Description: Upper and lower joint section is connected with linkage bars. The stance phase stability is achieved with polycentric kinematic (adjustment of the instant center of rotation by adjustment of the stop). The step-less adjustment of the axis friction and of the extension assist spring controls the swing phase.
Technical Data: Knee flexion range: approx 120

Cosmos-10-A Polycentric Knee Joint (integrated spring loaded extension assist mechanism with pyramidal top and lower end is integral tube adaptor) -AL

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-J10-A	Aluminum	600 g	Export Quality	100 kg

Recommendation:
With adjustment core on both sides
Polycentric
With mechanical extension assist
Suitable for max. 100 kg body weight
For trans-femoral amputees
With moderate functional levels
Medium stance and swing phase stability
Not Suitable for amputees with higher functional levels
Description: Upper and lower joint section is connected with linkage bars. The stance phase stability is achieved with the polycentric kinematic (adjustable of the instant center of rotation by adjustment of the stop). The step-less adjustment of the axis friction and of the extension assist spring controls the swing phase.

Cosmos-11 (Locking Polycentric Knee Joint (integrated spring loaded extension assist mechanism with pyramidal top and lower end is integral tube adaptor) -AL)

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-J11	Aluminum	620 g	Export Quality	100 kg

Recommendation:
Polycentric
With integrated extension assist
Suitable for max. 100 kg body weight
For trans-femoral amputees With moderate functional levels
Medium stance and swing phase stability
Suitable also for hip disarticulating amputees
Not Suitable for amputees with higher functional levels

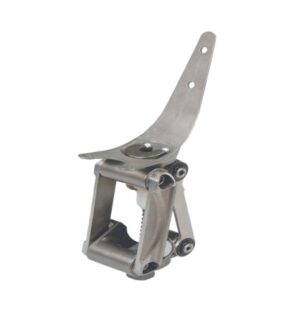

Cosmos-12 (Four Bar Linkage Hip Disarticulating Joint)

Part Code	Material	Part weight	Standard	Body Weight Limit
PTO-J12	Casting Steel	1 kg	Export Quality	100 kg

Recommendation:
With adjustment core on both sides
Polycentric
With mechanical extension assist
Suitable for max. 100 kg body weight
For trans-femoral amputees
With moderate functional levels
Medium stance and swing phase stability
Not Suitable for amputees with higher functional levels
Description: Upper and lower joint section is connected with linkage bars. The stance phase stability is achieved with the polycentric kinematic (adjustable of the instant center of rotation by adjustment of the stop). The step-less adjustment of the axis friction and of the extension assist spring controls the swing phase.

Galaxy-P-1&P-2 (Four Bar Pneumatic Knee Joint)

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-J13AL-P1	Aluminum	800 g	Export Quality	100 kg
PTO-J13AL-P2	Aluminum	800 g	Export Quality	100 kg

Features:

Adjustable flexion and extension control
Pneumatic swing phase control
Extension assist
Adjustable stability control

Galaxy-P-1&P-2 (Four Bar Pneumatic Knee Joint)

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-J14AL	Aluminum	1030 g	Export Quality	125 kg

Features:
Adjustable flexion and extension control
Pneumatic swing phase control
Extension assist
Adjustable stability control

Galaxy-P-1&P-2 (Four Bar Pneumatic Knee Joint)

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-J14AL-P	Aluminum	800 g	Export Quality	120 kg
PTO-J14AL-P-KD	Aluminum	800 g	Export Quality	120 kg

Features:
Adjustable flexion and extension control
Pneumatic swing phase control
Extension assist
Adjustable stability control

Pneumatic Polycentric Knee Joint with Pyramid. (KENDAL)

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-J15	Aluminum	750 g	Export Quality	100 g

Features:
Extension / Flexion Adjustment
Pneumatic Swing Phase Control
Extension Assist
Stability Adjustment
Flexion Angle – 145°

Pneumatic Polycentric Knee Joint with Rotator (KENDAL )

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-J16	Aluminum	934 g	Export Quality	100 kg

Features:
Top Rotator Design
Extension / Flexion Adjustment
Pneumatic Swing Phase Control
Extension Assist
Flexion Angle – 145°

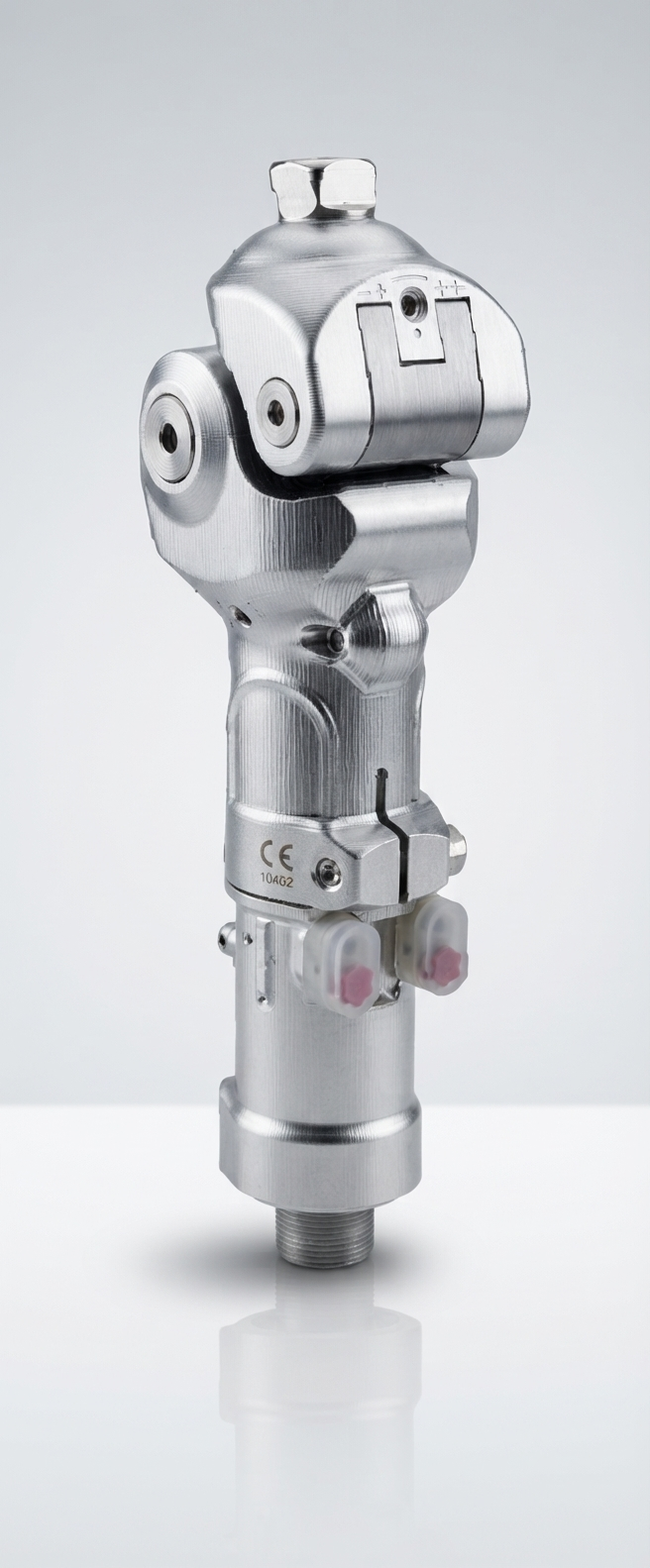

Hydraulic Knee Joint - Single Axis (KENDAL)

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-J22	Aluminum	866 g	Export Quality	100 kg

Features:
Brake Sensitivity Adjustment
Extension Spring Adjustment
Extension / Flexion Adjustment
Weight Activated Stance Control
Easy To Replace Hydraulic Cylinder
Flexion Angle – 145°

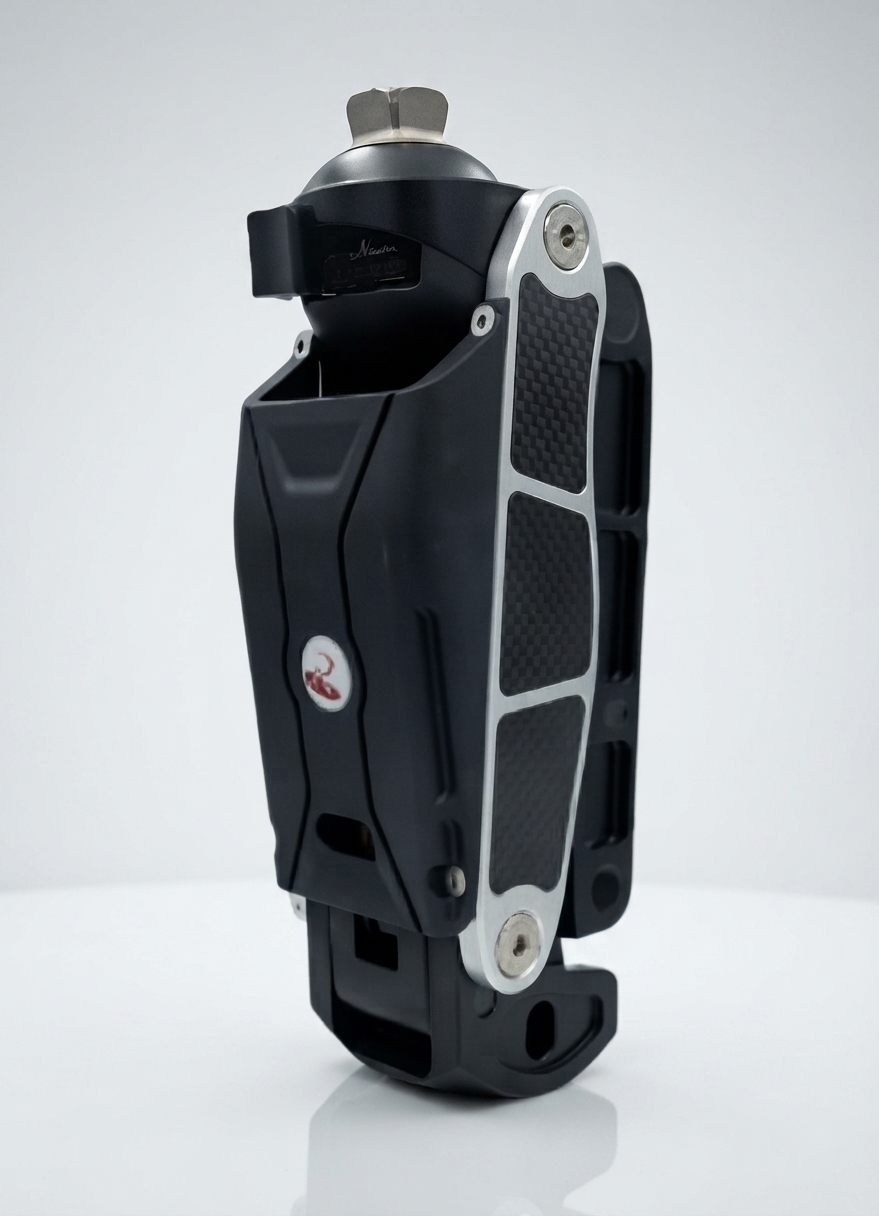

Six Bar Linkage EBS Hydraulic Knee Joint

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-J23	Aircraft Grade Aluminum & Magnesium Alloy	960 g	Export Quality	125 kg

Features:
This Joint has EBS function during the stance phase, which reduces the vibration of the stump with the ground at the moment of landing and increases the aesthetics and comfort.
This Joint is equipped with a manual safety lock mode, which provides excellent safety during the initial adaptation of the prosthesis and when walking on complex surfaces.
Independent hydraulic cylinder design, 10 levels of adjustable flexion and extension damping, suitable for 1-3 levels of activity.
This Joint is waterproof and resistant to freshwater, seawater and chlorinated water.
The Joint with low-temperature resistance to ensure normal use in temperatures as low as -40°C.

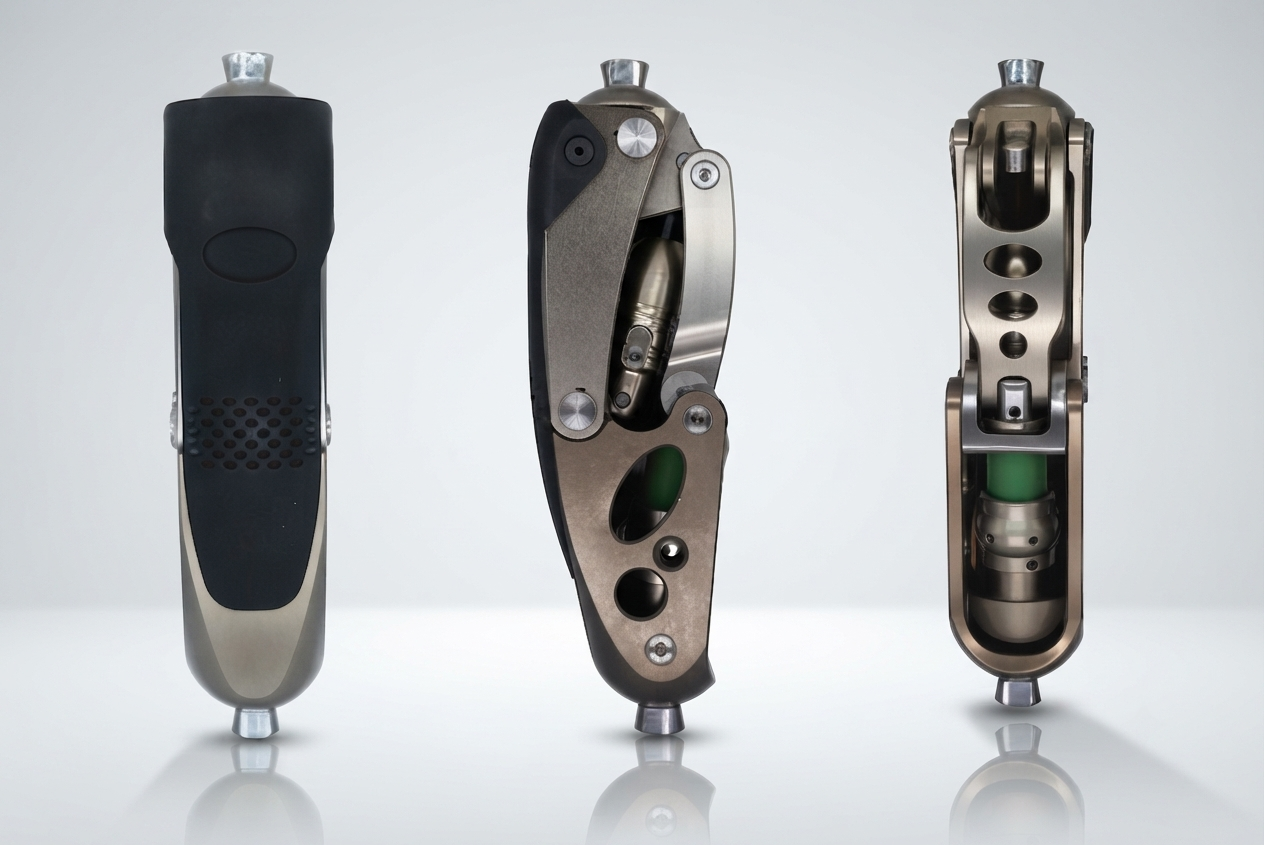

Hydropneumatic Joint

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-J24	Aluminum	867 g	Export Quality	125 kg

Features:
Brake system with spacial bearing design.
Assistance extension spring adjustment.
E/F adjustment.
Hydraulic cylinder easy to replace.

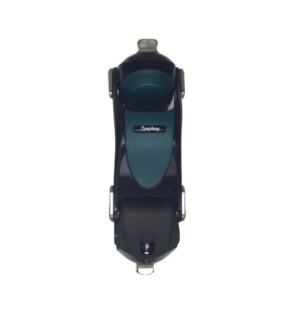

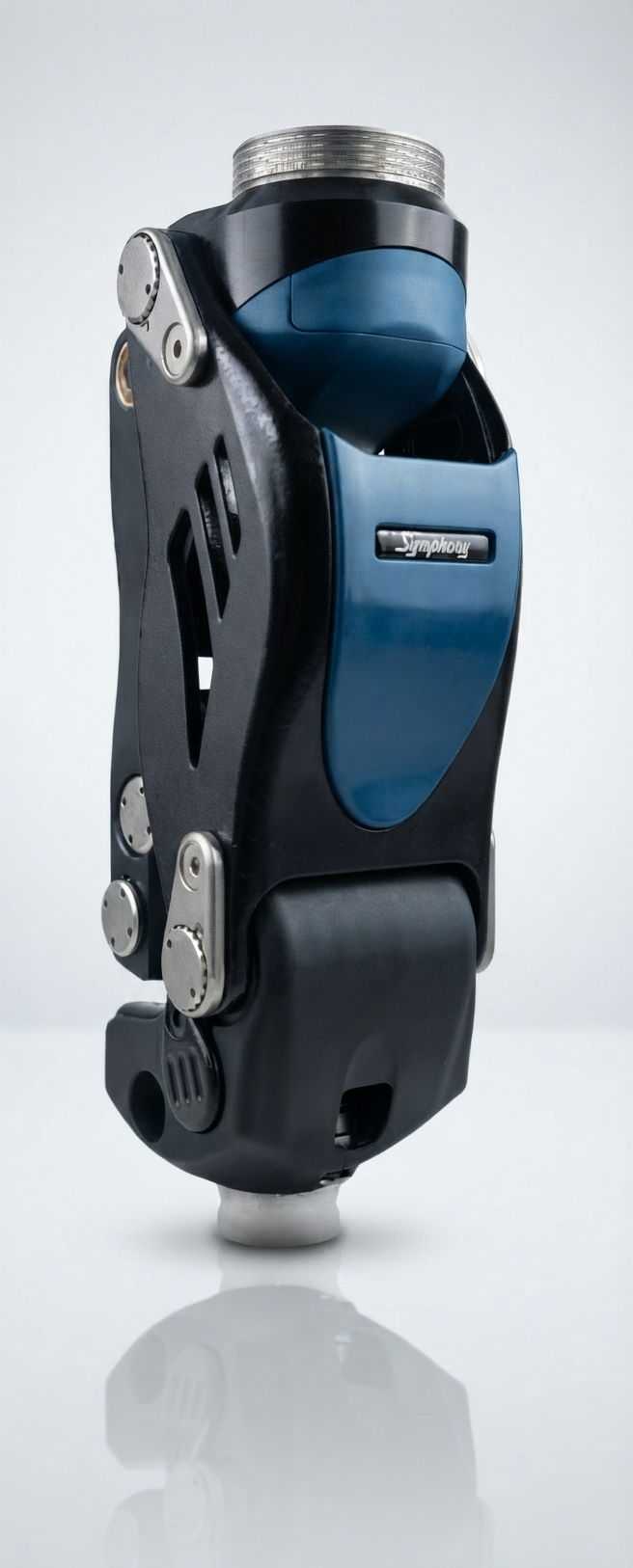

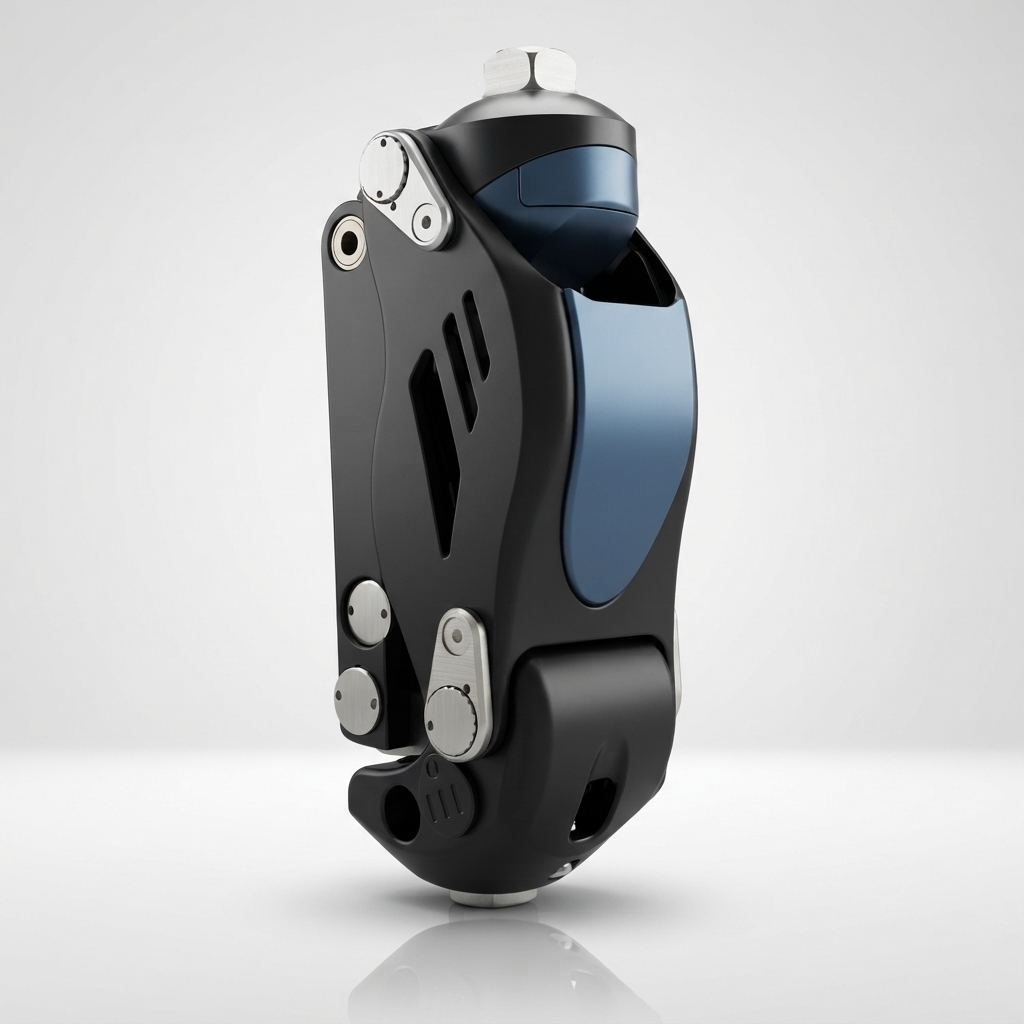

SYMPHONY (6 Bar Hydraulic Knee Joint) NK-6/NK-6SH

Part Code	Part Weight	Standard	Body Weight Limit
PTO-J17	920 g	Export Quality	125 kg
PTO-J17-1	920 g	Export Quality	125 kg

NK-6 : Great Balance between stability in stance & Smoothness in swing. Upper End of Joint – Pyramidal & Threaded (Screw Headed)
Swing Phase Control – Hydraulic Cylinder + Adjustable extension Assist.
Stance Phase Control – Stance Flexion adjustable by a screw.

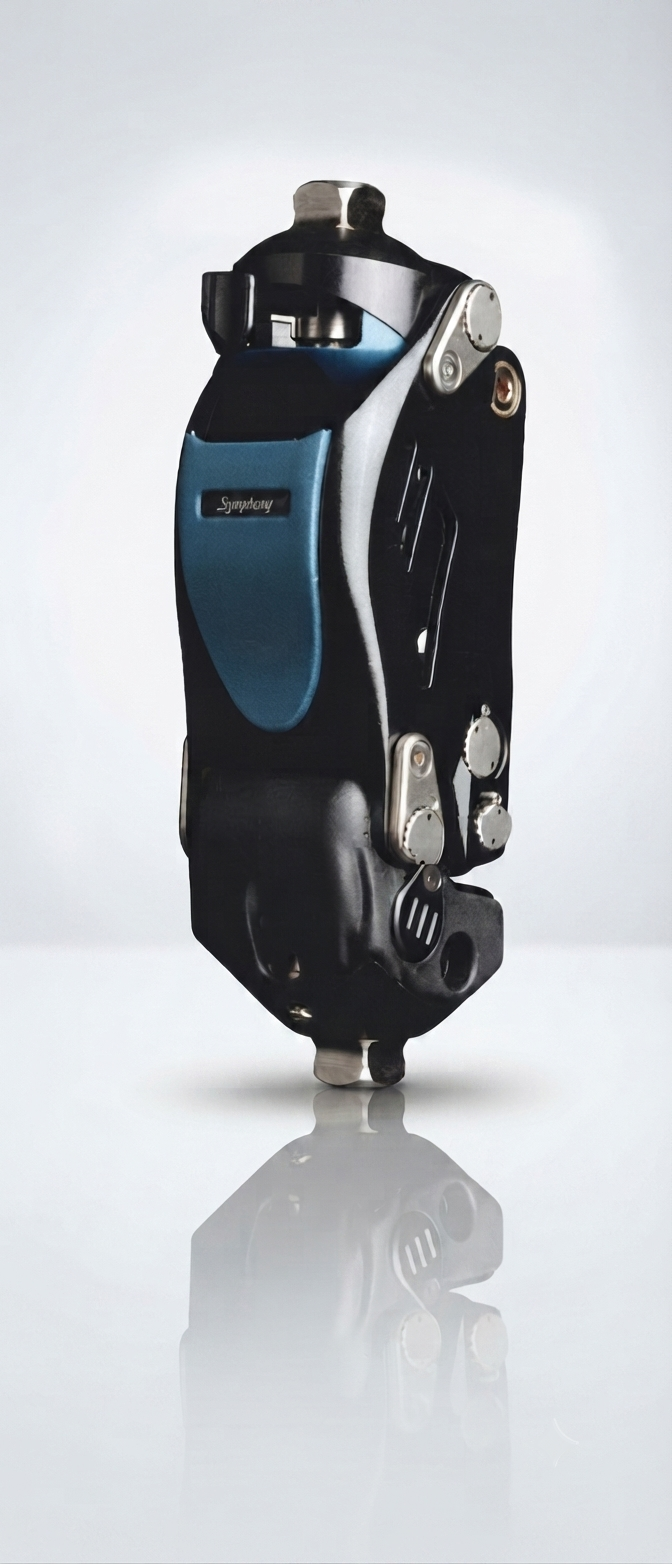

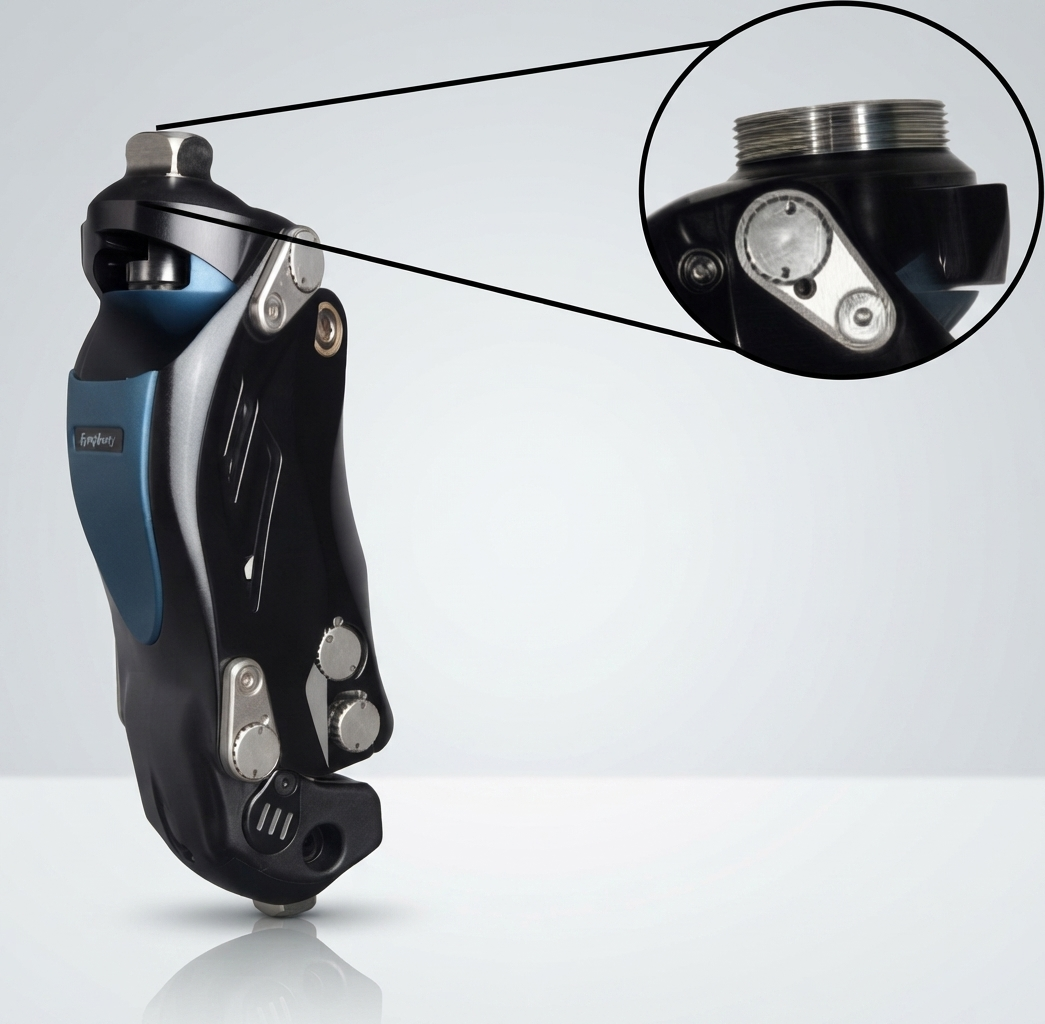

SYMPHONY (6 Bar Hydraulic Knee Joint) NK-6/NK-6SH

Part Code	Part Weight	Standard	Body Weight Limit
PTO-J17-2	920 g	Export Quality	125 kg
PTO-J17-3	920 g	Export quality	125 kg

Upper End of Knee Joint – Pyramidal & Threaded (Screw Headed)
Swing Phase Control – Hydraulic Cylinder + Adjustable extension Assist.
Stance Phase Control – Stance Flexion adjustable by a screw Selective Lock System.

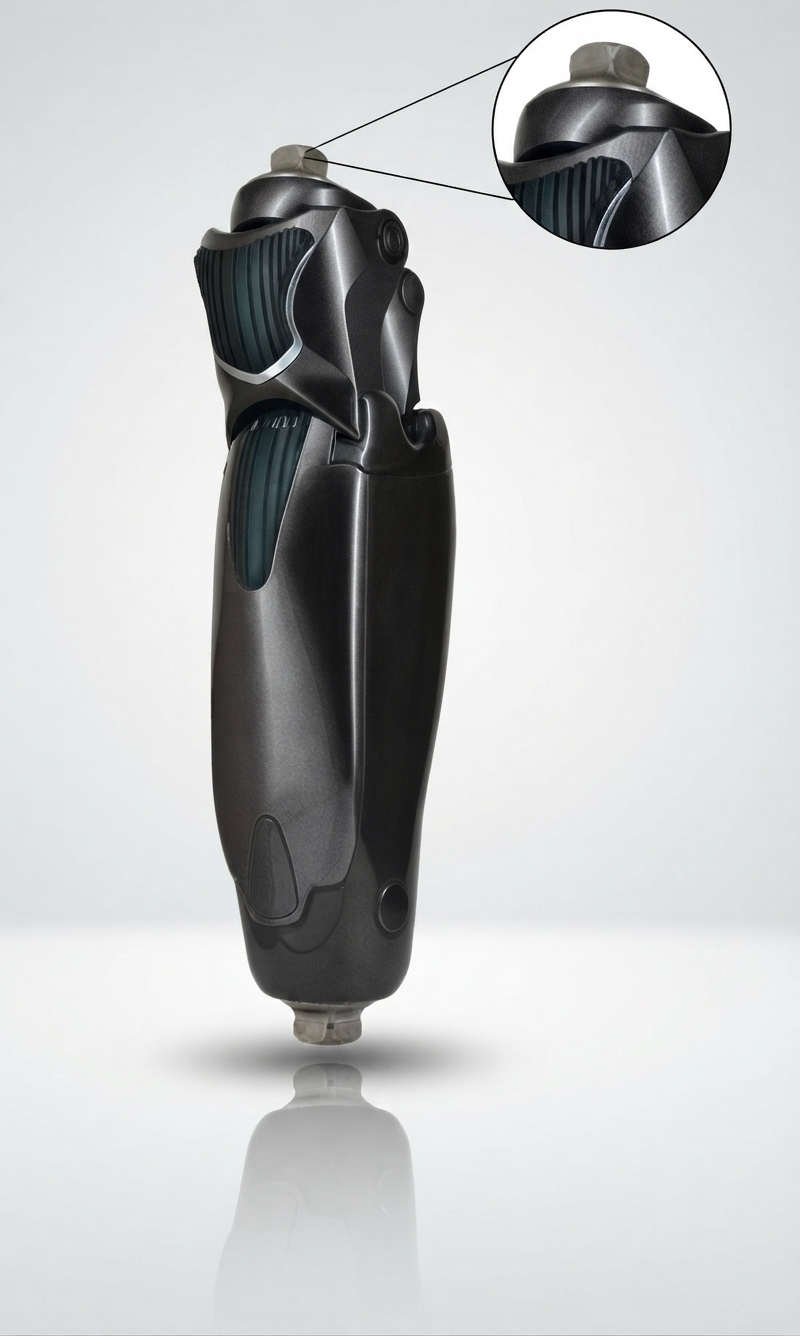

ALLUX 2 (MPK) Microprocessor-Controlled Hydraulic Knee Joint

Part Code	Part Weight	Standard	Body Weight Limit
PTO-J18	1510 g	Export Quality	125 kg

Key Features:
Microprocessor-Controlled Stability: Provides enhanced safety through dynamic control of stance and swing phases, adjusting in real-time to changes in terrain and walking speed.
Optimized Gait & Energy Efficiency: Enables a smoother, more natural gait pattern while helping reduce energy expenditure for the user.
Polycentric Design (4-Bar Linkage):- Ensures high stability during stance and increased toe clearance during swing, especially beneficial for varied terrain and stair negotiation.
Activity Level Compatibility: Suitable for K3 – K4 users who have the ability or potential for variable cadence and community ambulation.
Extended Flexion Range: Maximum flexion angle of 180°**, allowing for a full range of motion to accommodate active lifestyles.
Adjustability for Patient Needs: Easily customizable to individual gait patterns via adjustment settings for both stance and swing phases.
Long Battery Life: Operates up to 4 days on a single charge, assuming 5000 steps per day on the prosthetic side.
Technical Specifications:
Unit Weight:- 1510g
Max User Weight:-125kg
Unit Size:- 265mm
Proximal Connection:- Pyramid adapter
Smart Connectivity: Bluetooth-enabled for seamless communication with adjustment tools and user interface apps.
Application Software: Adjustment App for Prosthetists (iOS & Android), Remote Control App for Users (iOS & Android)

Modular Prosthetic Knee Joint

Cosmos-01 (Adjustable constant friction with extension assist mechanism)

Cosmos-02 (Load actuated locking mechanism)

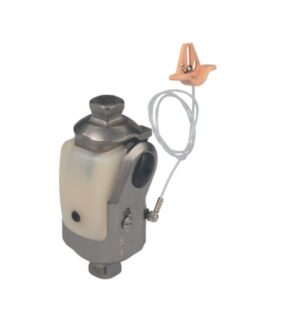

Cosmos-03 (Manual locking with exchangeable extension assist spring mechanism)

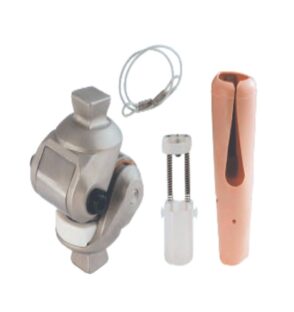

Cosmos-04 (Manual locking with exchangeable extension assist spring mechanism)

Cosmos-05 (Integrated spring extension assist mechanism)

Cosmos-06 (Knee Disarticulation Joint with J-shape socket adaptor, adjustable extension assist)

Cosmos-07 (Polycentric Knee Joint (ideal for Knee Disarticulation with J-shape socket adaptor, adjustable extension assist) (WITH LOCK) - CS)

Cosmos-08 (Mechanical Polycentric Knee Joint with Rotator (KENDALL))

Cosmos-09 (Polycentric Knee Joint (integrated spring loaded extension assist mechanism with pyramidal top and lower end is integral tube adaptor)

Cosmos-10 (Polycentric Knee Joint (integrated spring loaded extension assist mechanism with pyramidal top and lower end is integr

Cosmos-10-A Polycentric Knee Joint (integrated spring loaded extension assist mechanism with pyramidal top and lower end is integral tube adaptor) -AL

Cosmos-11 (Locking Polycentric Knee Joint (integrated spring loaded extension assist mechanism with pyramidal top and lower end is integral tube adaptor) -AL)

Cosmos-12 (Four Bar Linkage Hip Disarticulating Joint)

Galaxy-P-1&P-2 (Four Bar Pneumatic Knee Joint)

Galaxy-P-1&P-2 (Four Bar Pneumatic Knee Joint)

Galaxy-P-1&P-2 (Four Bar Pneumatic Knee Joint)

Pneumatic Polycentric Knee Joint with Pyramid. (KENDAL)

Pneumatic Polycentric Knee Joint with Rotator (KENDAL )

Hydraulic Knee Joint - Single Axis (KENDAL)

Six Bar Linkage EBS Hydraulic Knee Joint

Hydropneumatic Joint

SYMPHONY (6 Bar Hydraulic Knee Joint) NK-6/NK-6SH

SYMPHONY (6 Bar Hydraulic Knee Joint) NK-6/NK-6SH

ALLUX 2 (MPK) Microprocessor-Controlled Hydraulic Knee Joint

Request A Callback

Request A Callback

Stay Updated on Mobility & Innovation

Quick Links

Popular Categories

Contact Info
