Machineries & Equipments

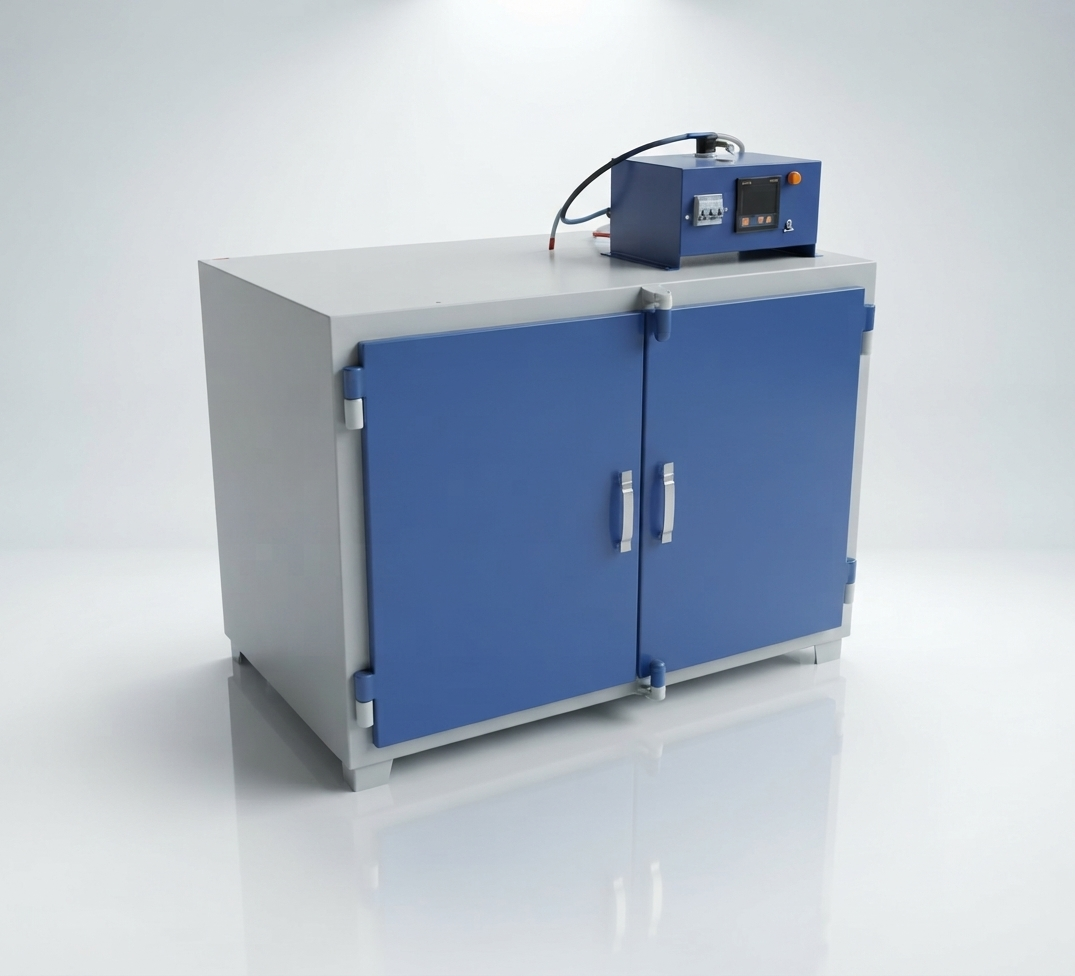

Electric Oven (Mini)

Part Code
PTO-MC01-1

Electric Oven (Mini) for Prosthetics & Orthotics (Heavy Duty with Warranty) Features:
Single/ Three Phase
Outside Area (WxDxH) L” X W” X H” 36″X30″ 36 (Controller on Top)
Inside Area (WxDxH) 30” X 24” X 21”
Double Door With Toggle/Spring loaded locking System
SS pan type trolley inside the oven
Interior body made of Mild steel.
Microprocessor PID switch and LED display
Provide Temperature controller Digital Temperature display
Temperature Up to 300 degree
Air Circulating Fan, optional
*Digital Technical Specification- On Request

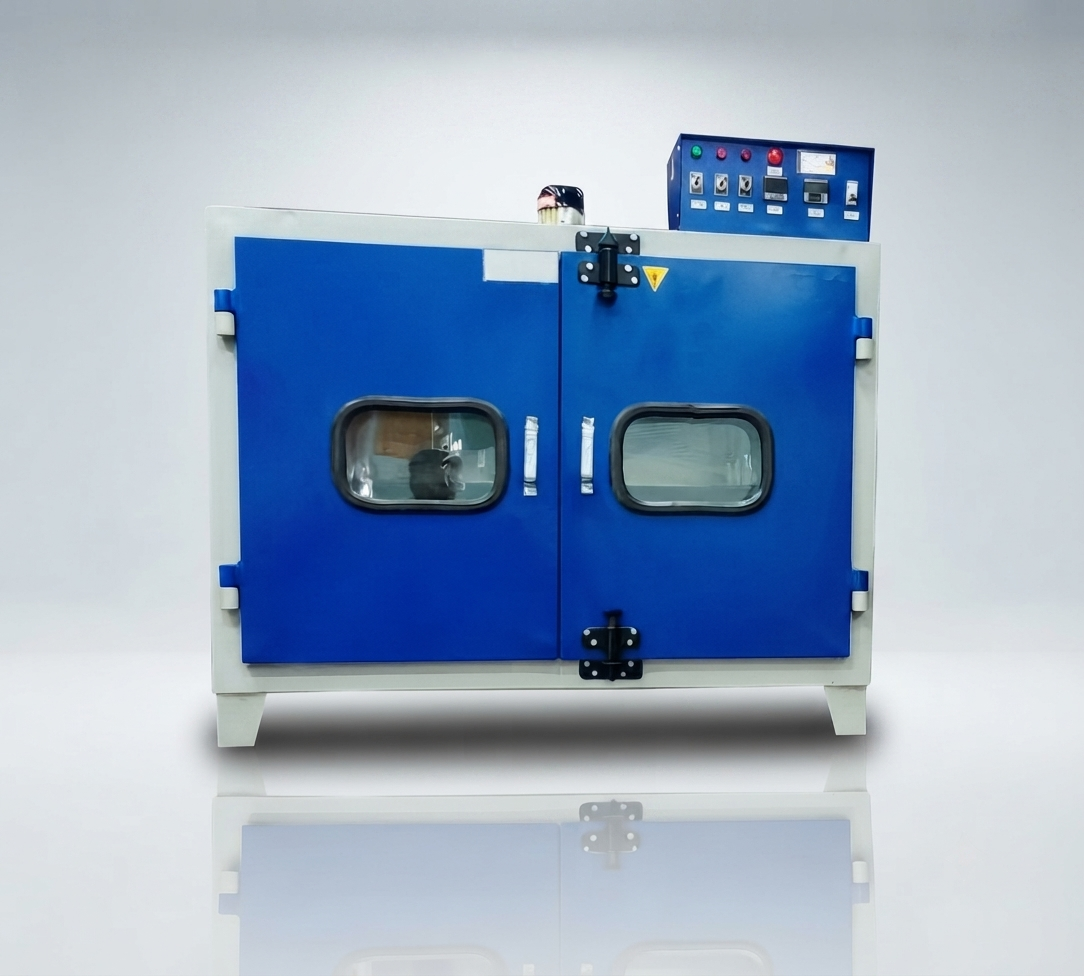

Electric Oven (Medium)

Part Code
PTO-MC01-2

Electric Oven (Medium) for Prosthetics & Orthotics (Heavy Duty with Warranty) Features:
Single/ Three Phase
Outside Area (WxDxH) 51″ x 41″ x 46″
Inside Area (WxDxH) 36” X 24” X 24”
Double Door With locking & view toughened glass
SS pan type trolley inside the oven ¦ Interior body made of Stainless steel.
Microprocessor PID switch and LED display
Provide Temperature controller Digital Temperature display
Temperature Up to 300 degree
Air Circulating Fan, Optional
*Digital Technical Specification- On Request.

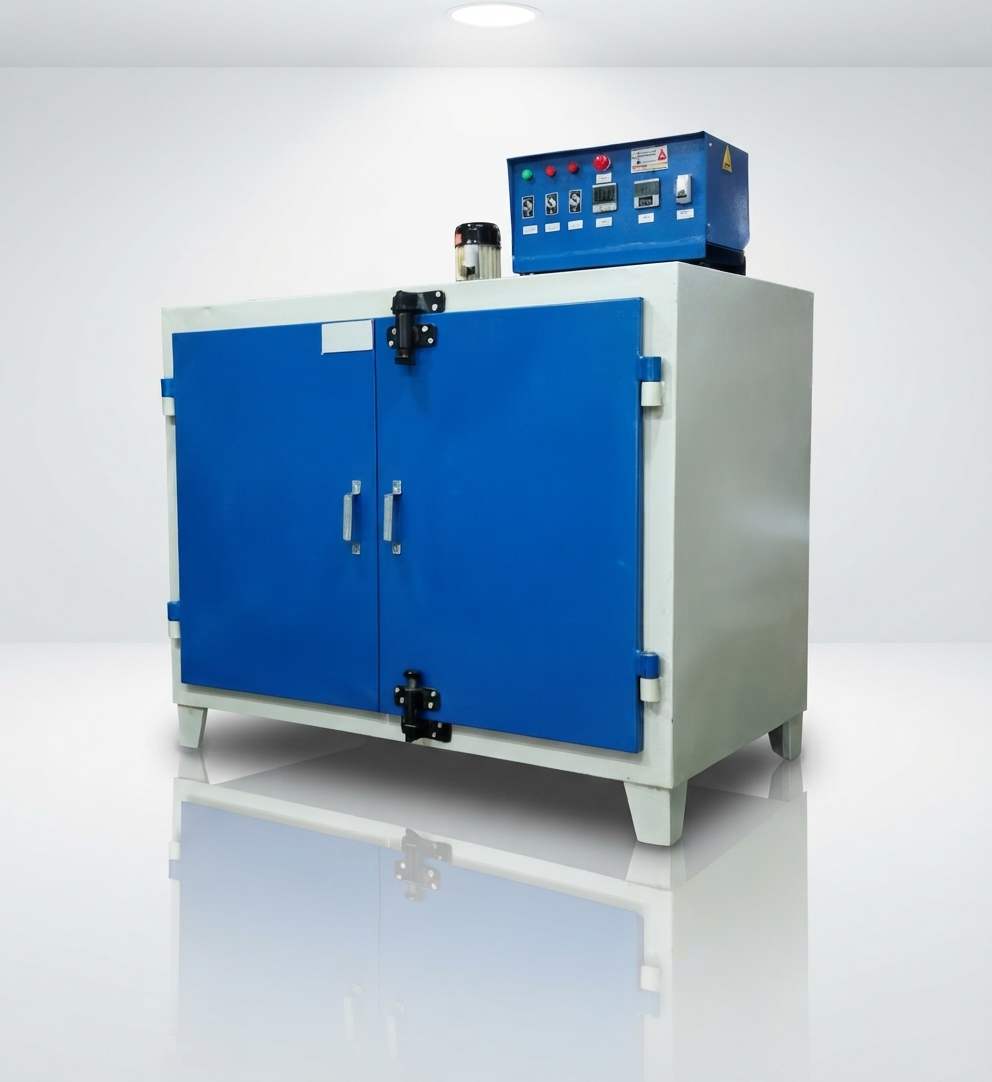

Electric Oven (Jumbo)

Part Code
PTO-MC01-3

Electric Oven (Jumbo) for Prosthetics & Orthotics (Heavy Duty with Warranty) Features: ¦
Single/ Three Phase
Outside Area (WxDxH) 54” X 46” X 51”
Inside Area (WxDxH) 39” X 31” X 31”
Double Door With locking & view toughened glass
Body duly powder coated
SS pan type trolley inside the oven
Interior body made of Stainless steel.
Microprocessor PID switch and LED display
Provide Temperature controller Digital Temperature display
Temperature Up to 300 degree
Air Circulating Fan, Integrated
*Digital Technical Specification- On Request.

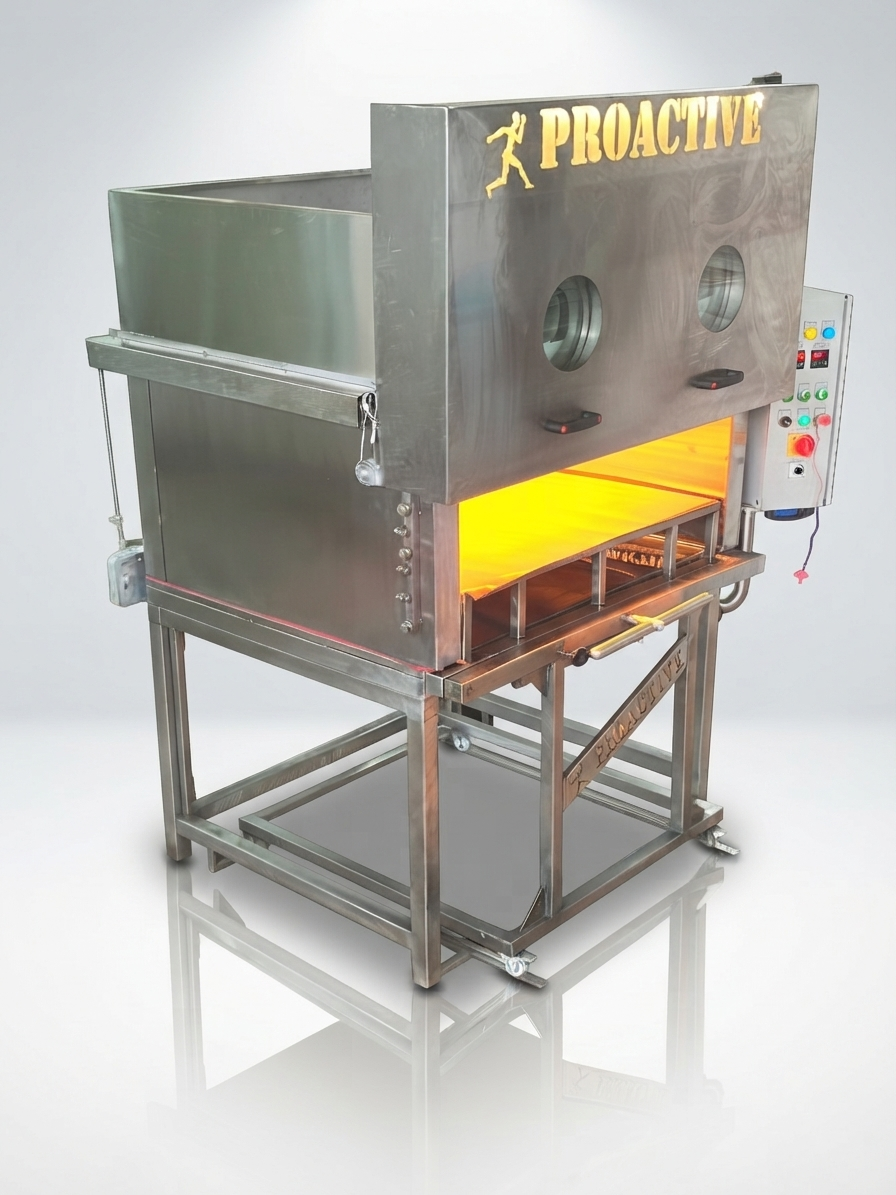

Infra Red Oven

Part Code
PTO-MC01-4

Infrared Oven for Prosthetics & Orthotics For quick heating of large plastic materials and for production of Pre-preg orthoses Suitable for deep-drawing technology with deep-drawing frame

Features :

Inner & Outer body Stainless Steel
Movable Job Trolley
Total fabrication in stainless steel.
Infrared quartz-tube heating system.
Temperature sensor gauge/meter.
Thyristor + PID fitted control panel.
Toughened glass viewing window.
Exhaust system with air circulating blower fans.
Up-lifting door with tilting moveable trolley
Power cord with cee- plug, 5-pole, 16a.
Inside dimension: – l x w x h – 1050 x 900 x 560 mm. (Can be Customized)
Temperature: – ambient to 6000°C (working up to) operating with controller.
Power configuration :- 415v/ 3 phase, 12 to 18 kw – 3 phase 240 volts
Weight (approx):- 390 kg
All is Assembled
All machine are disassemble
Height Adjustable IR Tube
2) IR Enclosure An insulated enclosure from sides is fabricated and IR modular units fit inside the enclosure. small fans provided from the top and non-contact sensor is placed at top of the oven for temperature measurement. Dead weight mechanism concept is provided for easy up and down movement of the door at front. A small window is provided at front side for visual inspection. A trolley is provided for material movement and placement of component inside IR oven… The heating is done by quartz infra red lamp with modular housing and reflector on the backside.
*Digital Technical Specification- On Request.

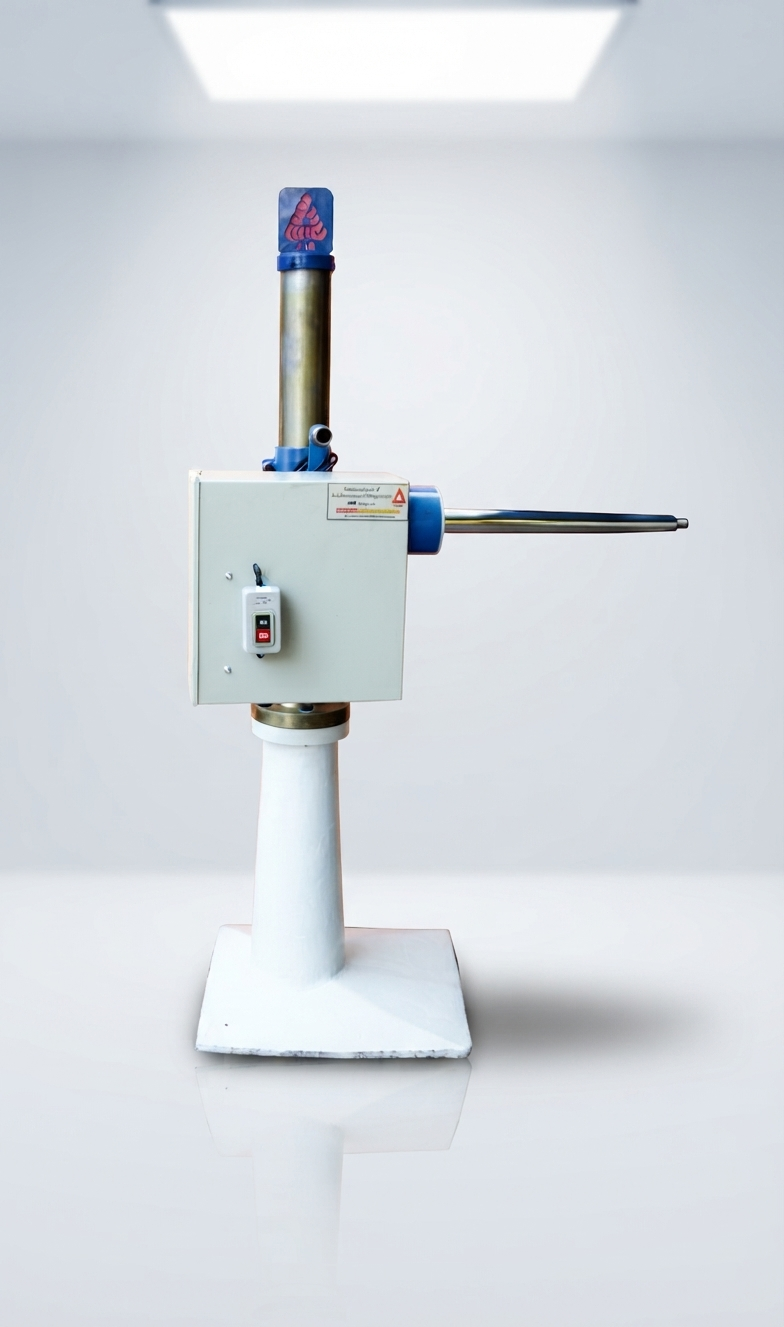

Router Machine without tools (Economic Quality)

Part Code
PTO-MC02-1

Router Machine – Economic Quality
Features: Industrial Casting Base Shaft adjustment range: a. Motor shaft:- 00 to 90 b. Vertical shaft: 700mm to 1200mm c. Z-axis :- 3600 On / Off Switch Single Speed Motor 2850 RMP Tempered and hardened, En 535 grade hard-chrome plated, Mirror Finish steel Shaft Color:- RAL 5005 Royal Blue and RAL 7035 Siemens Gray
*Digital Technical Specification- On Request.

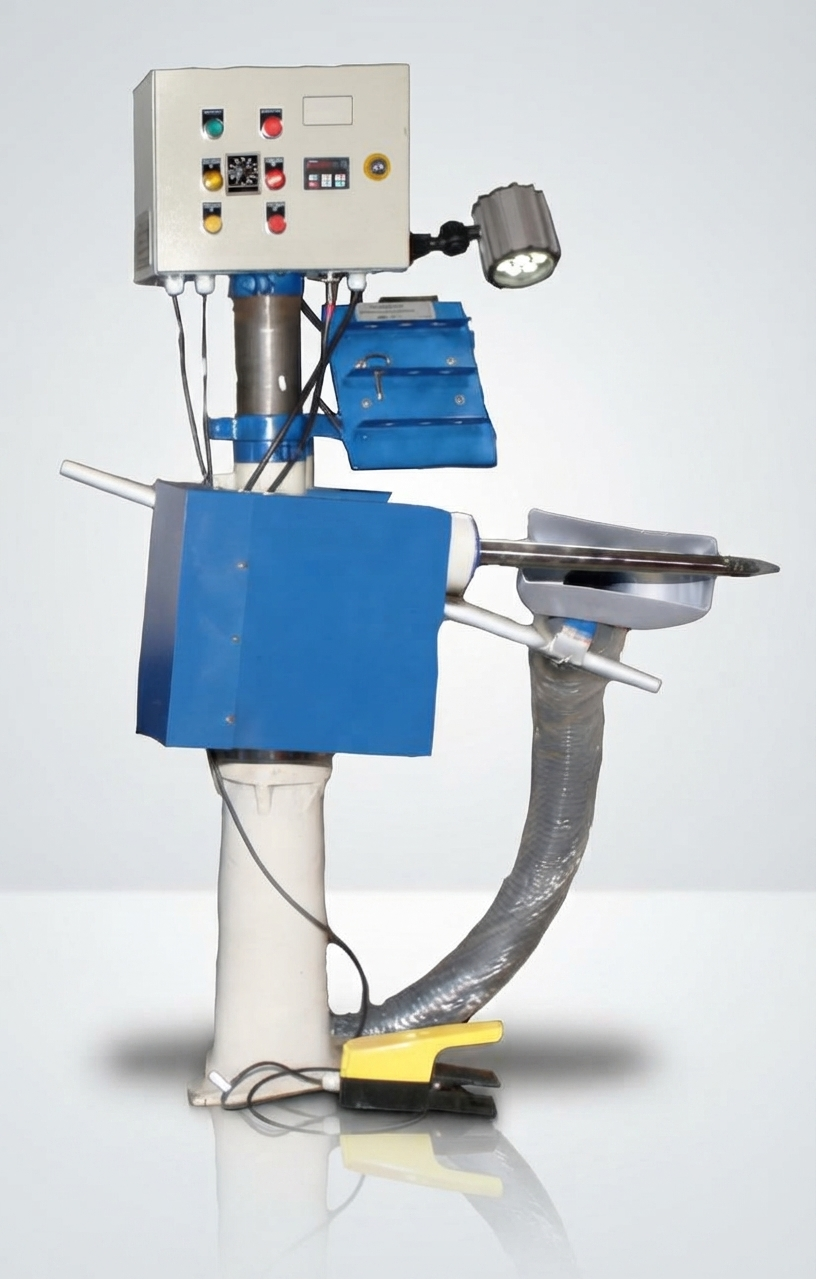

Router Machine without tools (Export Quality)

Part Code
PTO-MC02-2

Router Machine – Export Quality
Features:
3 phase Multi Speed – Export Quality without tools VFD flow multi- Speed router motor a. Motor Shaft: 00 to 900 b. Vertical Shaft: 700mm to 1200mm c. Z axis: 3600 Control panel with digital display Seamless pipe- industrial pillar manufacturing Casted heavy-duty base results minimum noise Mounted Tool holder Emergency Pedestal braking Mechanism Focus light on job Tempered and hardened, En 535 grade shaft hard- chrome plated, Mirror Finish steel Shaft. Color:- RAL 5005 Royal Blue and RAL 7035 Siemens Gray.
*Digital Technical Specification- On Request.

Mini Router

Part Code
PTO-MC02-2/1

*Digital Technical Specification- On Request.

Open Type Dust Collector (Economic)

Part Code
PTO-MC02-3

Dust Collector Economic Open Type Powder coated mild steel body. Manually Detachable dust cleaning bag. Dust collection capacity is 100 to 120 litters. Motor Rating – 2HP. Machine dimension:- L x W x H – 1000 x 575 x 1875mm. Motor rating:- ½ HP. Filtration capacity:- 1m2. Airflow in CMH:- 1200 to 1850. Static pressure:- 150mm of H2O. Suction fuel pipe – Diameter 100 mm x Length 3000 mm. Power – 415V/1.5kw/Triple Phase Extract health and safety tested residual dust content H2 (< 0.2 mg/m3 ) Color –RAL 5005 Royal blue + RAL 7035 Siemens grey
*Digital Technical Specification- On Request.

Dust Collector (Mobile Extractor) Export Quality (Closed Type)

Part Code
PTO-MC02-4

Salient Features:
Powder-coated mild steel body. Dust collection capacity is 100 to 135 litres. Motor rating – 2hp. Machine dimensions:- l x w x h – 1175 x 625 x 1600mm. Filtration capacity:- 1m2. Airflow in cmh:- 1850 to 2200 Suction fuel pipe – diameter 100 mm x length 3000 mm. Volume flow -770m3 /h Static pressure:- 150mm of h2o or more Power – 415v/1.5kw/triple phase (motor used is branded such as crompton greaves, havells india ltd, kirloskar electric co ltd. Abb india ltd. Of similar Chip collection volume max 135 litters Extract health and safety tested residual dust content h2 (< 0.2 mg/m3 ) Color –ral 5005 royal blue + ral 7035 siemens grey
*Digital Technical Specification- On Request.

Set of Tools for Router Machine

Part Code
PTO-MC02-5

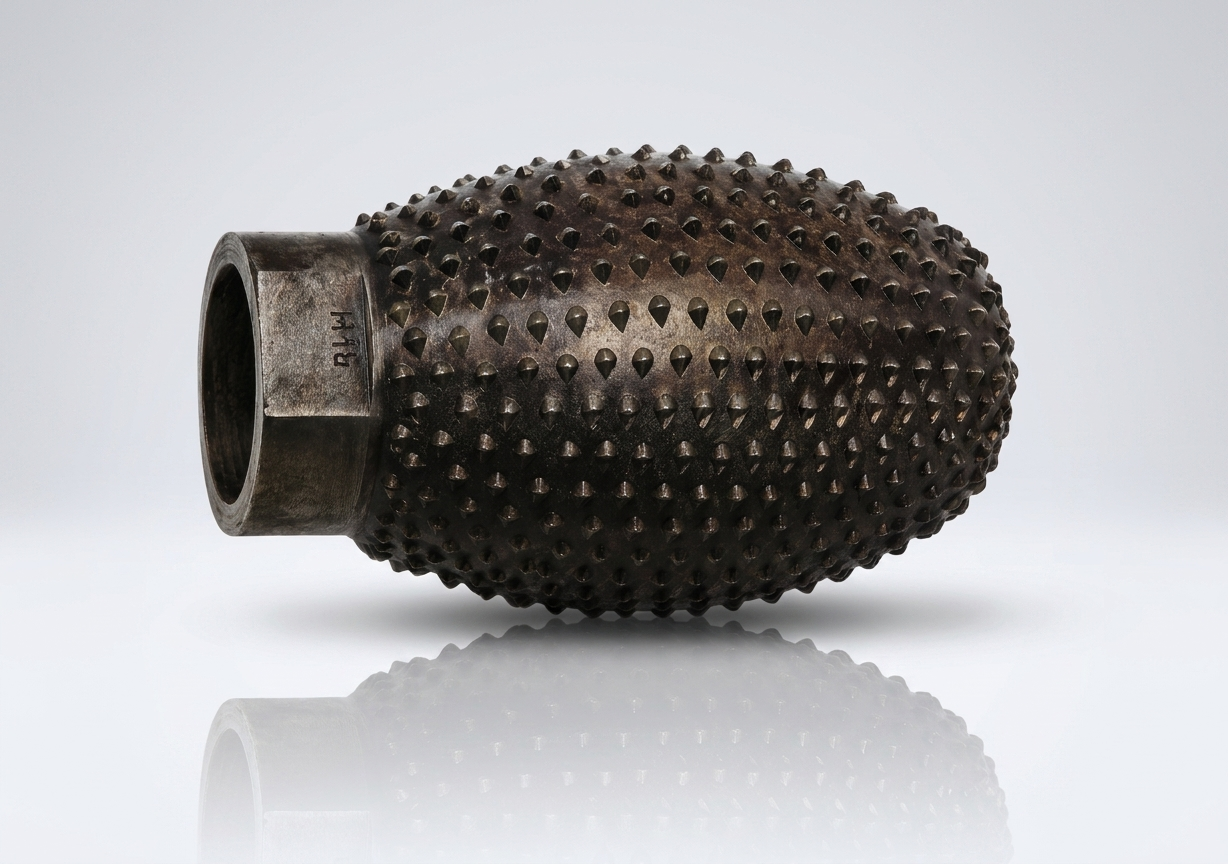

Router Machine set of Tools – (1 each) Rasp Head (Dia 36 mm) Rasp Head (Dia 50 mm) Rasp Conical Head (Dia 28 mm) Sanding Drum (D72.5 X L200 mm) Sanding Sleeves (Grit 40) Sanding Sleeves (Grit 60) Sanding Sleeves (Grit 80)

Router Machine With Open Type Dust Collector (Economic Quality)

Part Code
PTO-MC02-6

Router Machine – Economic Quality
Features:
Industrial Casting Base Shaft adjustment range: a. Motor shaft:- 00 to 90 b. Vertical shaft: 700mm to 1200mm c. Z -axis :- 3600 On / Off Switch Single Speed Motor 2850 RPM Tempered and hardened, En 535 grade hard-chrome plated, Mirror Finish steel Shaft Dust Collector Economic Open Type Powder coated mild steel body. Manually Detachable dust cleaning bag. Dust collection capacity is 100 to 120 litters.
*Digital Technical Specification- On Request.

Router Machine With Open Type Dust Collector (Export Quality)

Part Code
PTO-MC02-7

Router Machine – Export Quality
Features:
3 phase Multi Speed – Export Quality without tools VFD flow multi- Speed router motor a. Motor Shaft: 00 to 900 b. Vertical Shaft: 700mm to 1200mm c. Z axis: 360 Control panel with digital display Seamless pipe- industrial pillar manufacturing Casted heavy-duty base results minimum noise Mounted Tool holder Emergency Pedestal braking Mechanism Focus light on job Tempered and hardened, En 535 grade hard-chrome plated, Mirror Finish steel Shaft Dust Collector Economic Open Type Powder coated mild steel body. Manually Detachable dust cleaning bag. Dust collection capacity is 100 to 120 litters.
*Digital Technical Specification- On Request.

Router Machine With Close Type Dust Collector (Export Quality)

Part Code
PTO-MC02-8

Router Machine – Export Quality
Features:
3 phase Multi Speed – Export Quality without tools VFD flow multi- Speed router motor a. Motor Shaft: 00 to 900 b. Vertical Shaft: 700mm to 1200mm c. Z axis: 360 Control panel with digital display Seamless pipe- industrial pillar manufacturing Casted heavy-duty base results minimum noise Mounted Tool holder Emergency Pedestal braking Mechanism Focus light on job Tempered and hardened, En 535 grade hard-chrome plated, Mirror Finish steel
Shaft Salient Features:
Powder coated mild steel body.
Dust collection capacity is 100 to 135 litters.
*Digital Technical Specification- On Request.

Router Machine with set of Tools (Economic)

Part Code
PTO-MC02-9

Router Machine – Economic Quality
Features:
Industrial Casting Base Shaft adjustment range: a. Motor shaft:- 00 to 90 b. Vertical shaft: 700mm to 1200mm. c. Z -axis:- 3600
On / Off SwitchSingle Speed Motor 2850 RMP Tempered and hardened, En 535 grade hard-chrome plated, Mirror Finish steel Shaft Color:- RAL 5005 Royal Blue and RAL 7035 Siemens Gray Router Machine set of Tools Rasp Graining Head (Dia 36 mm) Rasp Graining Head (Dia 50 mm) Rasp Conical Graining Head (Dia 28 mm) Sanding Drum (D72.5 X L200 mm) Sanding Sleeves (Grit 40) Sanding Sleeves (Grit 60) Sanding Sleeves (Grit 80)
*Digital Technical Specification- On Request. Router Machine with set of Tools (Export Quality

Router Machine with set of Tools (Export Quality)

Part Code
PTO-MC02-10

Router Machine – Export Quality
Features:
3 phase Multi Speed – Export Quality without tools VFD flow multi- Speed router motor Self adjustment range a. Motor Shaft: 00 to 900 b. Vertical Shaft: 700mm to 1200mm c. Z axis: 3600 Seamless pipe- industrial pillar adjustment manufacturing Casted heavy-duty base results minimum noise Router Machine set of Tools Rasp Graining Head (Dia 36 mm) Rasp Graining Head (Dia 50 mm) Rasp Conical Graining Head (Dia 28 mm) Sanding Drum (D72.5 X L200 mm) Sanding Sleeves (Grit 40) Sanding Sleeves (Grit 60) Sanding Sleeves (Grit 80)
*Digital Technical Specification- On Request.

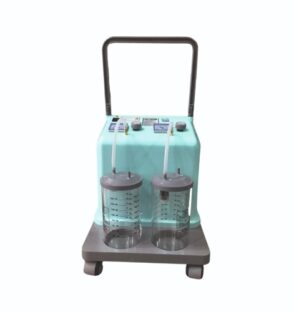

Vacuum Machine for Lamination

Part Code
PTO-MC03

Vacuum Machine for Lamination (IMPORTED) number of glass jars : 2 noise (decibel) : less than 60 db (a) power supply : ac 220v, +-22v, 05+-1hz max negative pressure : greator than 0.09 mpa input power : less than 180 va flow rate : greator than 180 va jars capacity : 2500ml/pc, 2 pieces
*Digital Technical Specification- On Request.

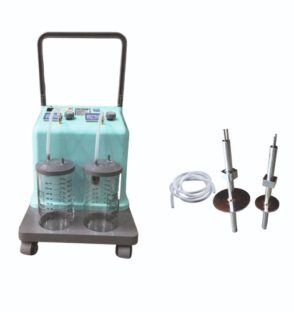

Vacuum Machine for Lamination Mandrill (AK+BK) 1 each

Part Code
PTO-MC03-1

Vacuum Machine for Lamination (IMPORTED) number of glass jars : 2 noise (decibel) : less than 60 db (a) power supply : ac 220v, +-22v, 05+-1hz max negative pressure : greator than 0.09 mpa input power : less than 180 va flow rate : greator than 180 va jars capacity : 2500ml/pc, 2 pieces Lamination Mandrill (AK+BK) 1 each Mild Steel body with nickel chrome plating Square piece for enhanced vice grip Round plate for batter mold resting to way holes for inner and outer bag suction
*Digital Technical Specification- On Request.
