Prosthetic Kits - Modular Above Knee Kits

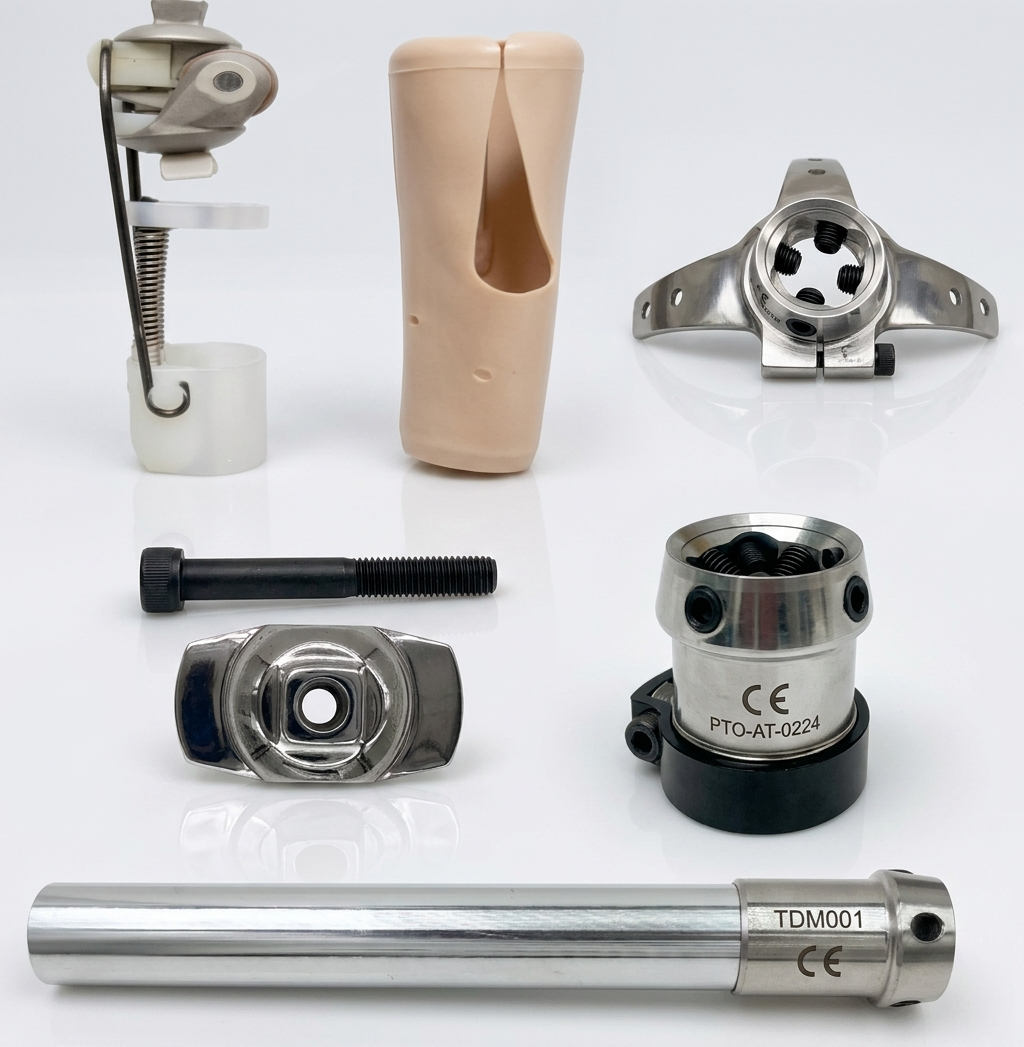

Above Knee Kit With J01 Joint (ECO/EXQ)

PTO AKECO01
PTO-AKECO01
PTO BKEXQ
PTO-AKEXQ01
Part Code Material Part Weight Standard Body Weight Limit
PTO-AKECO01
Casting Steel & Aluminium
1304 gm
Economic
100 kg
PTO-AKEXQ01
Castin Steel, Stainless Steel & Aluminium
1289 g
Export Quality
120 kg
  • PTO-AKECO01 consists of-
  • Knee Joint – Single Axis (PTO – J01) Constant friction.
  • Three Prong Socket adapter for Direct Lamination with rotatable pyramidal receiver (PTO-05-1EXQ)
  • Adapter to clamp the tube (PTO-11ECO)
  • Long Pylon with Integrated Adapter (400mm) (PTO-22ECO)
  • Foot adaptor with Bolt (PTO-26ECO)
  • PTO-AKEXQ01 consists of-
  • Knee Joint – Single Axis (PTO – J01) Constant friction.
  • Three Prong Socket adapter for Direct Lamination with rotatable pyramidal receiver (PTO-05-1EXQ).
  • Adapter to clamp the tube (PTO-11EXQ).
  • Long Pylon with Integrated Adapter (400mm) (PTO-22EXQ).
  • Foot adaptor with Bolt (PTO-26EXQ).

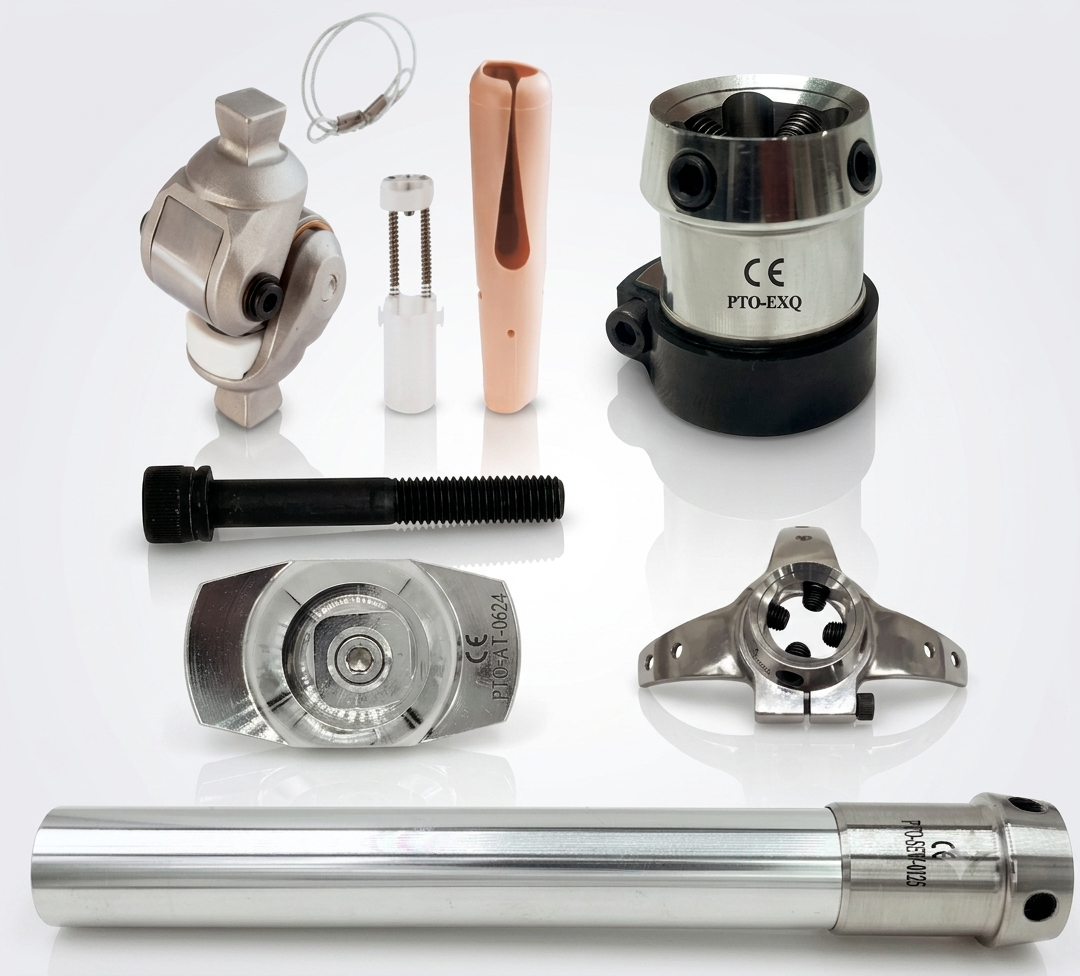

Above Knee Kit With J02 (ECO/EXQ)

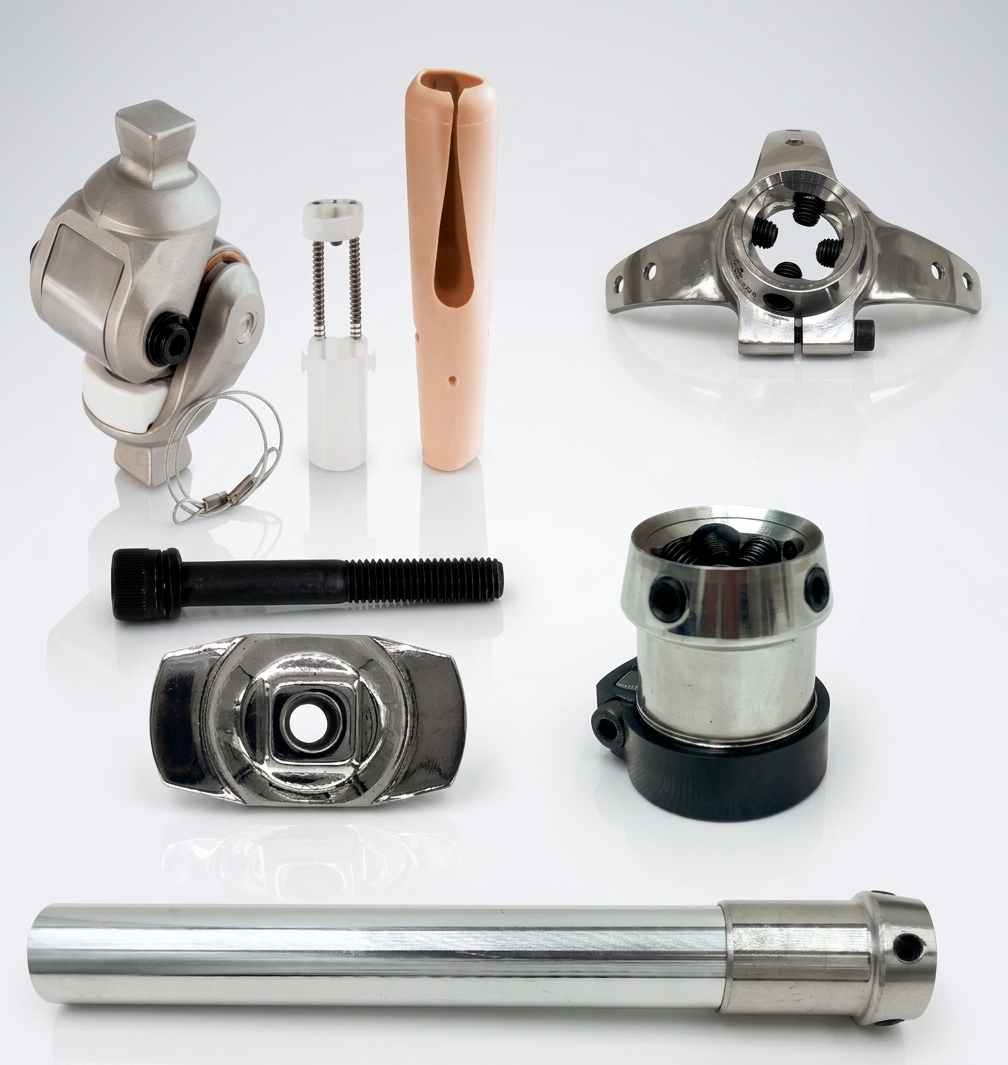

PTO AKECO02
PTO-AKECO02
PTO AKEXQ02
PTO-AKEXQ02
Part Code Material Part Weight Standard Body Weight Limit
PTO-AKECO02
Casting Steel & Aluminium
1189 g
Economic
100 kg
PTO-AKEXQ02
Casting Steel, Stainless Steel & Aluminium
1174 g
Export Quality
120 kg
  • PTO-AKECO02 consists of-
  • Knee Joint- Single Axis (PTO -J02) Load actuated breaking mechanism.
  • Three Prong Socket adapter for Direct Lamination with rotatable pyramidal receiver (PTO-05-1EXQ).
  • Adapter to clamp the tube (PTO-11ECO).
  • Long Pylon with Integrated Adapter (400mm) (PTO-22ECO).
  • Foot adaptor with Bolt(PTO-26ECO).
  • PTO-AKEXQ02 consists of-
  • Knee Joint- Single Axis (PTO -J02) Load actuated breaking mechanism.
  • Three Prong Socket adapter for Direct Lamination with rotatable pyramidal receiver (PTO-05-1EXQ).
  • Adapter to clamp the tube (PTO-11EXQ).
  • Long Pylon with Integrated Adapter (400mm) (PTO-22EXQ)
  • Foot adaptor with Bolt(PTO-26EXQ).

Above Knee Kit With J03 (ECO/EXQ)

PTO AKECO03
PTO-AKECO03

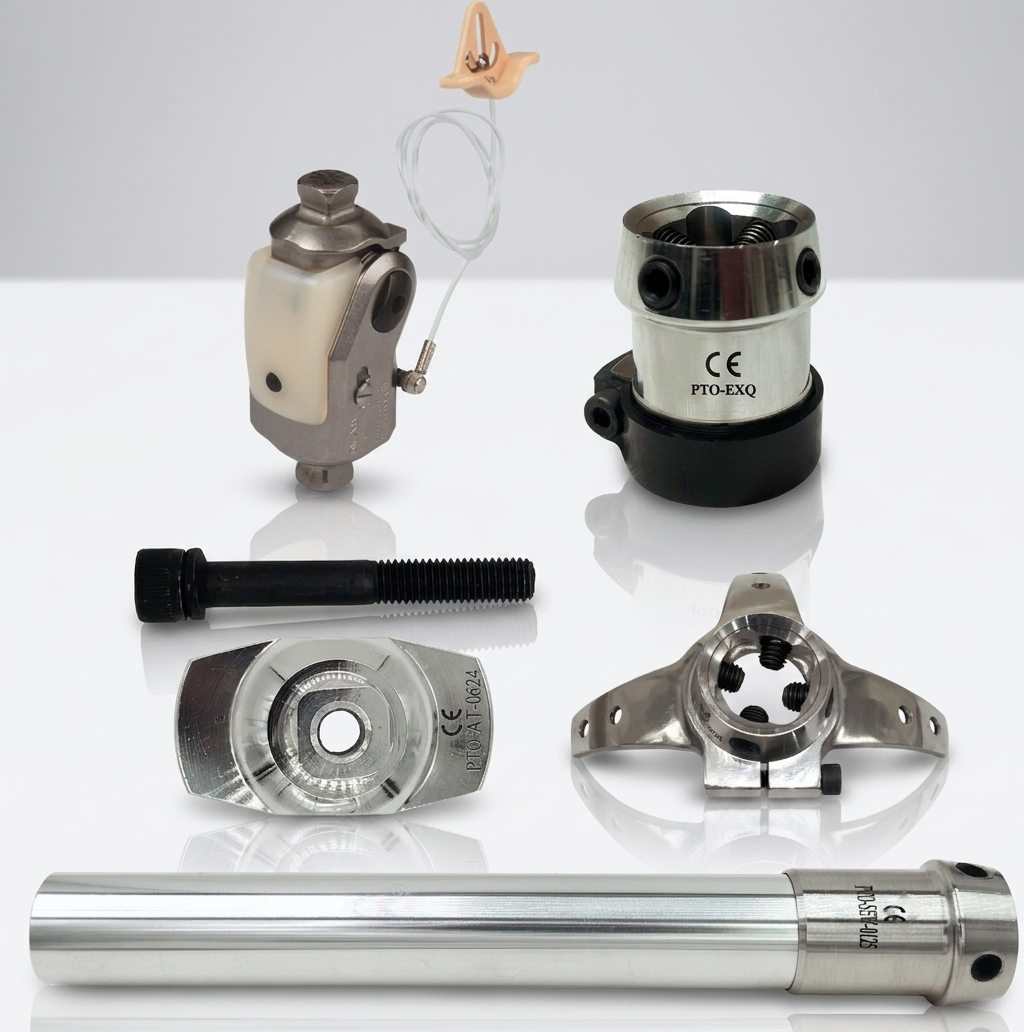

PTO AKEXQ03
PTO-AKEXQ03
Part Code Material Part Weight Standard Body Weight Limit
PTO-AKECO03
Casting Steel & Aluminium
1249 g
Economic
100 kg
PTO-AKEXQ03
Casting Steel, Stainless Steel & Aluminium
1234 g
Export Quality
120 kg
  • PTO-AKECO03 consists of:
  • Knee Joint – Single Axis (PTO-J03) Manual Locking Mechanism.
  • Three Prong Socket adapter for Direct Lamination with rotatable pyramidal receiver (PTO-05-1EXQ).
  • Adapter to clamp the tube (PTO-11ECO).
  • Long Pylon with Integrated Adapter (Pyramidal receiver type) (400mm). With aluminum alloy tube 30 mm. (PTO-22ECO).
  • Foot adaptor with Bolt (PTO-26ECO).
  • PTO-AKEXQ03 consists of:
  • Knee Joint – Single Axis (PTO-J03) Manual Locking Mechanism.
  • Three Prong Socket adapter for Direct Lamination with rotatable pyramidal receiver (PTO-05-1EXQ).
  • Adapter to clamp the tube (PTO-11EXQ).
  • Long Pylon with Integrated Adapter (Pyramidal receiver type) (400mm). With aluminum alloy tube 30 mm. (PTO-22EXQ).
  • Foot adaptor with Bolt (PTO-26EXQ).

Above Knee Kit- J05 Joint (ECO/EXQ)

PTO BKECO07 1
PTO-AKECO05
PTO BKEXQ07 1
PTO-AKEXQ05
Part Code Material Part Weight Standard Body Weight Limit
PTO-AKECO05
Casting Steel & Aluminium
1329 g
Economic
90 kg
PTO-AKEXQ05
Casting Steel, Stainless Steel & Aluminium
1134 g
Export Quality
120 kg
  • PTO-AKECO05 consists of:
  • Knee Joint- Polycentric- Integrated spring extension assist mechanism (PTO-J 05). ¦
  • Three-prong socket adapter for Direct Lamination with rotatable pyramidal receiver (PTO-05-1EXQ).
  • Adapter to clamp the tube (PTO-11ECO).
  • Long Pylon with Integrated Adapter (400mm) (PTO-22ECO).
  • Foot adaptor with Bolt (PTO-26ECO).
  • PTO-AKEXQ05 consists of:
  • Knee Joint- Polycentric- Integrated spring extension assist mechanism (PTO-J 05).
  • Three-prong socket adapter for Direct Lamination with rotatable pyramidal receiver (PTO-05-1EXQ).
  • Adapter to clamp the tube (PTO-11EXQ).
  • Long Pylon with Integrated Adapter (400mm) (PTO-22EXQ).
  • Foot adaptor with Bolt (PTO-26EXQ).

Through Knee Kit- J06 Joint (ECO/EXQ)

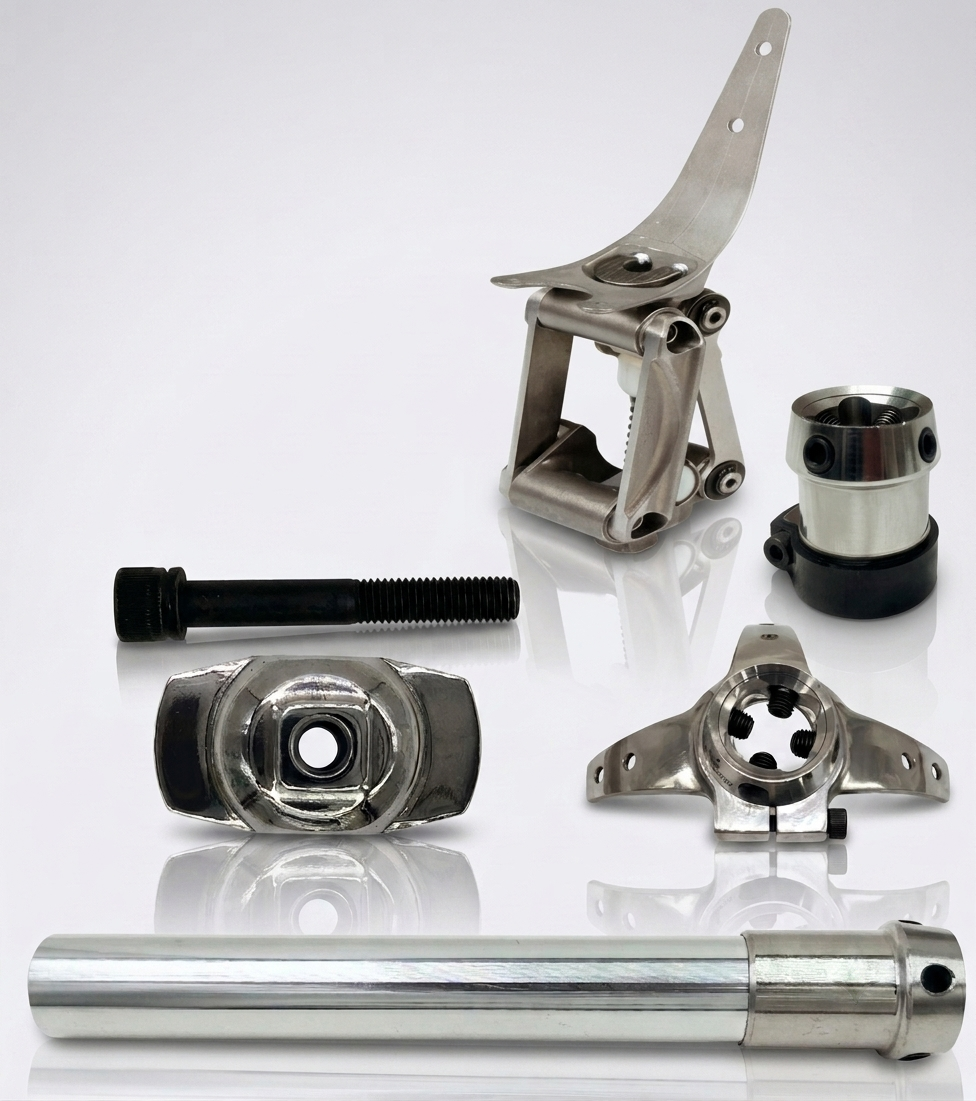

PTO TKECO06
PTO-TKECO06

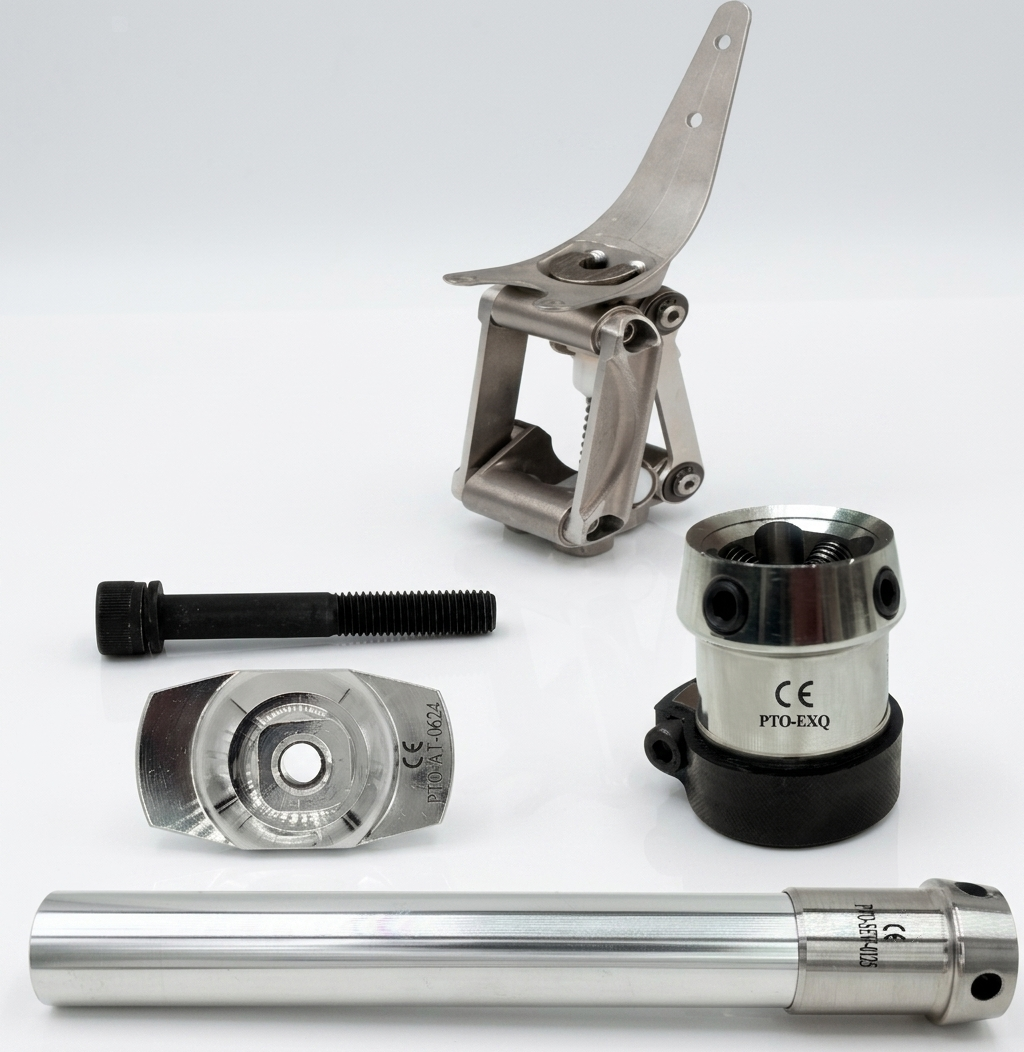

PTO TKEXQ06
PTO-TKEXQ06
Part Code Material Part Weight Standard Body Weight Limit
PTO-TKECO06
Casting Steel & Aluminium
1320 g
Economic
100 kg
PTO-TKEXQ06
Casting Steel, Stainless Steel & Aluminium
1305 g
Export Quality
100 kg
  • PTO-TKECO06 (Through Knee Kit) consists of:
  • Knee Joint- Polycentric knee disarticulation joint with J-shape socket adaptor (PTO- J06).
  • Adapter to clamp the tube (PTO-11ECO).
  • Long Pylon with Integrated Adapter (400mm) (PTO-22ECO).
  • Foot adaptor with Bolt (PTO-26ECO).
  • PTO-TKEXQ06 (Through Knee Kit) consists of:
  • Knee Joint- Polycentric knee disarticulation joint with J-shape socket adaptor (PTO- J06).
  • Adapter to clamp the tube (PTO-11EXQ).
  • Long Pylon with Integrated Adapter (400mm) (PTO-22EXQ).
  • Foot adaptor with Bolt (PTO-26EXQ).

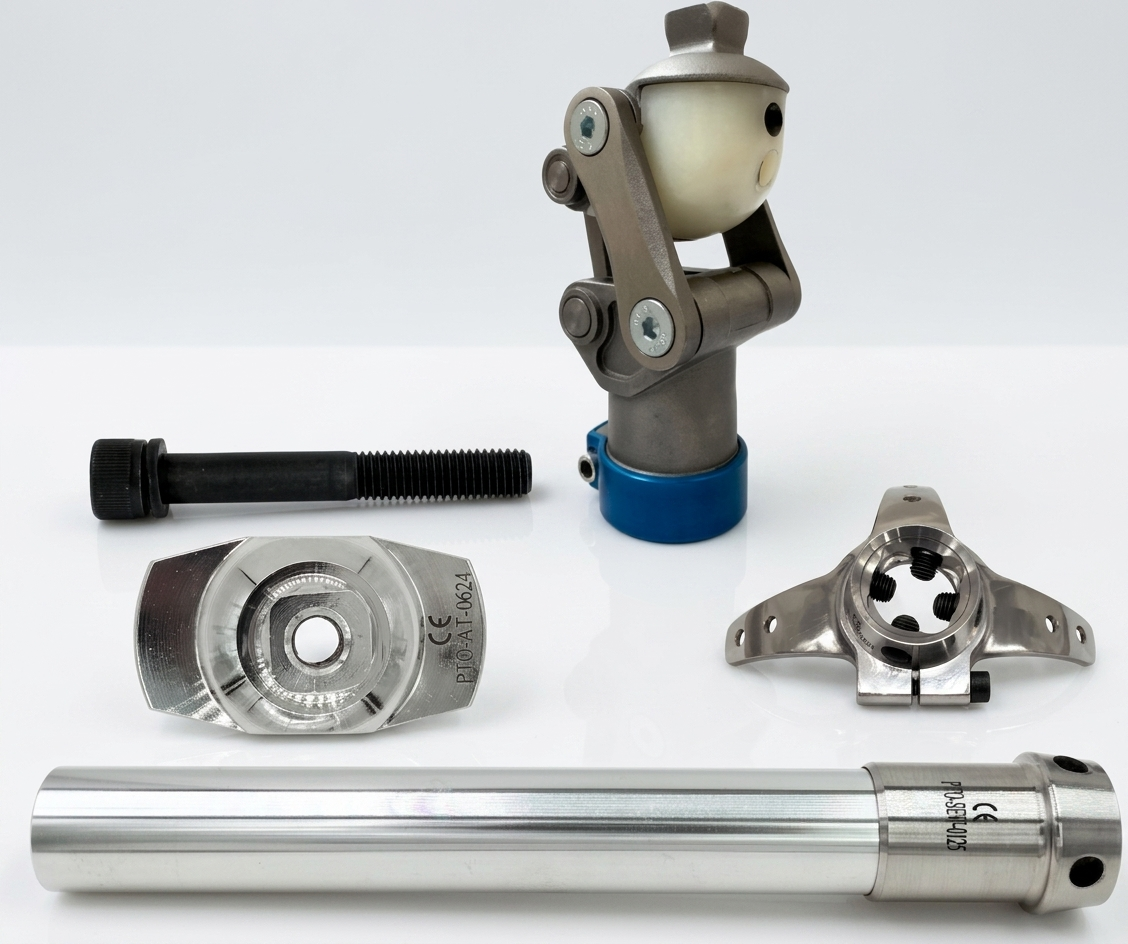

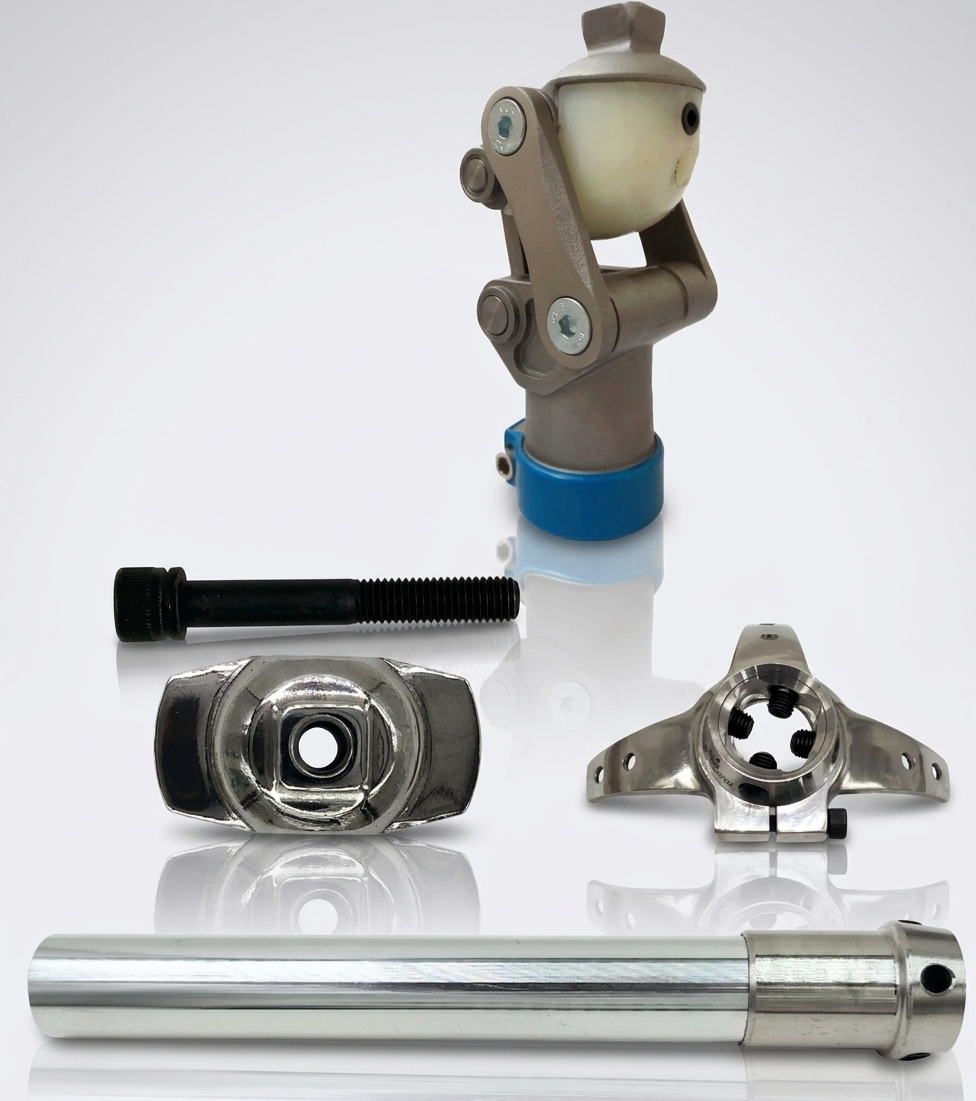

Above Knee Kit- J09 Joint (ECO/EXQ)

PTO AKECO09
PTO-AKECO09
PTO AKEXQ09
PTO-AKEXQ09
Part Code Material Part Weight Standard Body Weight Limit
PTO-AKECO09
Casting Steel & Aluminium
1229 g
Semi Export
100 kg
PTO-AKEXQ09
Casting Steel, Stainless Steel & Aluminium
1214 g
Export Quality
100 kg
  • PTO-AKECO09 consists of:
  • Polycentric Knee Joint (integrated spring-loaded extension assist mechanism with pyramidal top and lower end is integral tube adaptor) (PTO-J09).
  • Three Prong Socket adapter for Direct Lamination with rotatable pyramidal receiver (PTO-05-1EXQ).
  • Long Pylon with Integrated Adapter (400mm) (PTO-22ECO).
  • Foot adaptor with Bolt (PTO-26ECO).
  • PTO-AKEXQ09 consists of:
  • Polycentric Knee Joint (integrated spring-loaded extension assist mechanism with pyramidal top and lower end is integral tube adaptor) (PTO-J09).
  • Three Prong Socket adapter for Direct Lamination with rotatable pyramidal receiver (PTO-05-1EXQ).
  • Long Pylon with Integrated Adapter (400mm) (PTO-22EXQ).
  • Foot adaptor with Bolt (PTO-26EXQ).

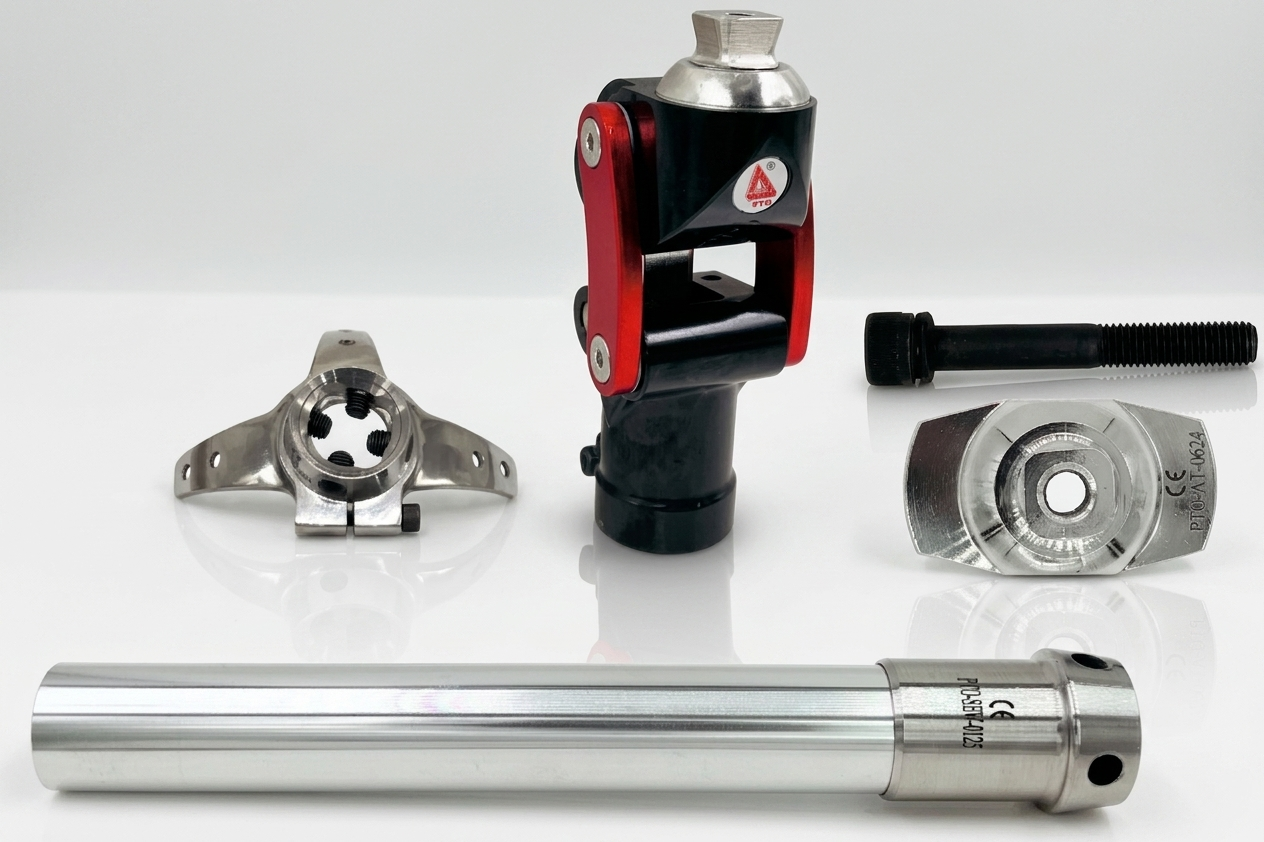

Above Knee Kit- J10 Joint (ECO/EXQ)

PTO AKECO10
PTO-AKECO10
PTO AKEXQ10
PTO-AKEXQ10
Part Code Material Part Weight Standard Body Weight Limit
PTO-AKECO10
Stainless Steel & Aluminium
1274 g
Economic
100 kg
PTO-AKEXQ10
Stainless Steel & Aluminium
1276 g
Export Quality
100 kg
  • PTO-AKECO10 consists of:
  • Polycentric Knee Joint (integrated spring loaded extension assist mechanism with pyramidal top and lower end is integral tube adaptor) (PTO-J10).
  • Three Prong Socket adapter for Direct Lamination with rotatable pyramidal receiver (PTO-05-1EXQ).
  • Long Pylon with Integrated Adapter (400mm) (PTO-22ECO).
  • Foot adaptor with Bolt (PTO-26ECO).
  • PTO-AKEXQ10 consists of:
  • Polycentric Knee Joint (integrated spring loaded extension assist mechanism with pyramidal top and lower end is integral tube adaptor) (PTO-J10).
  • Three Prong Socket adapter for Direct Lamination with rotatable pyramidal receiver (PTO-05-1EXQ).
  • Long Pylon with Integrated Adapter (400mm) (PTO-22EXQ).
  • Foot adaptor with Bolt (PTO-26EXQ).

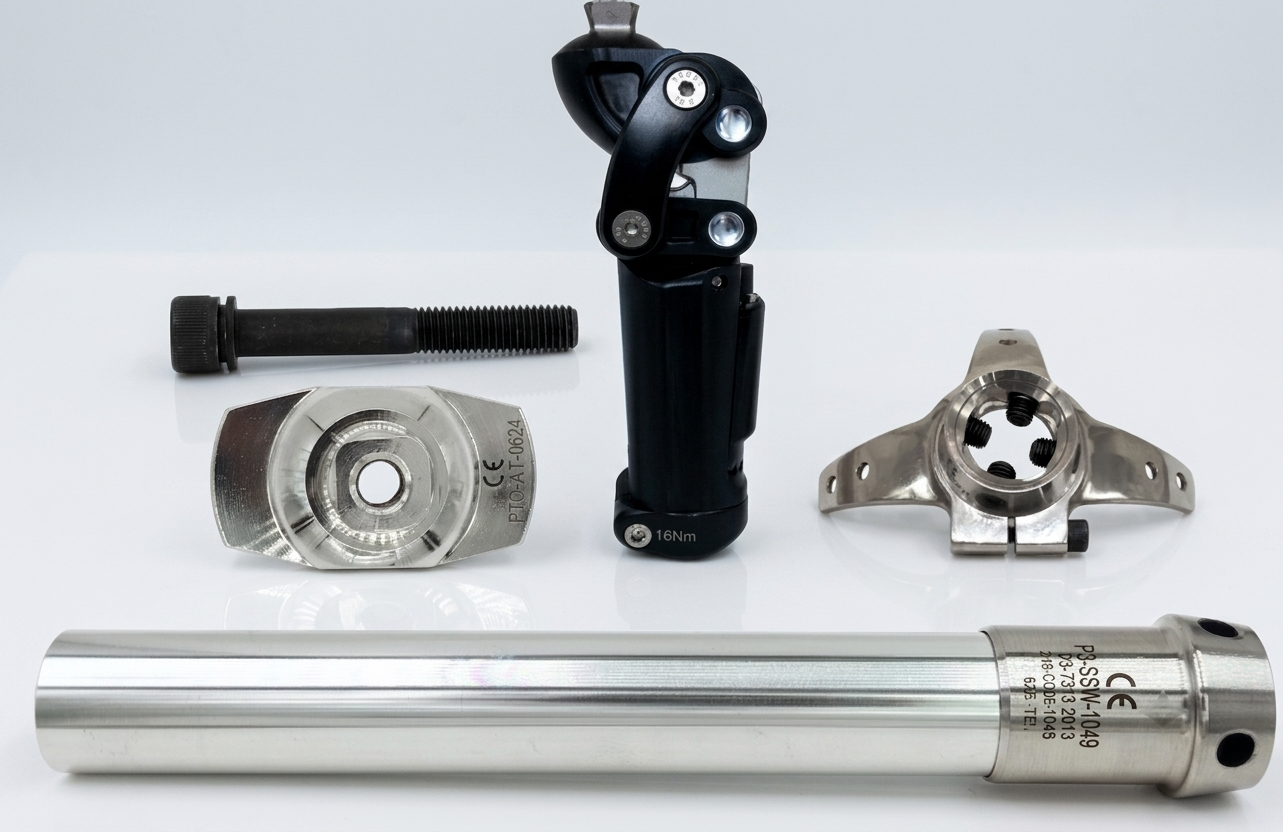

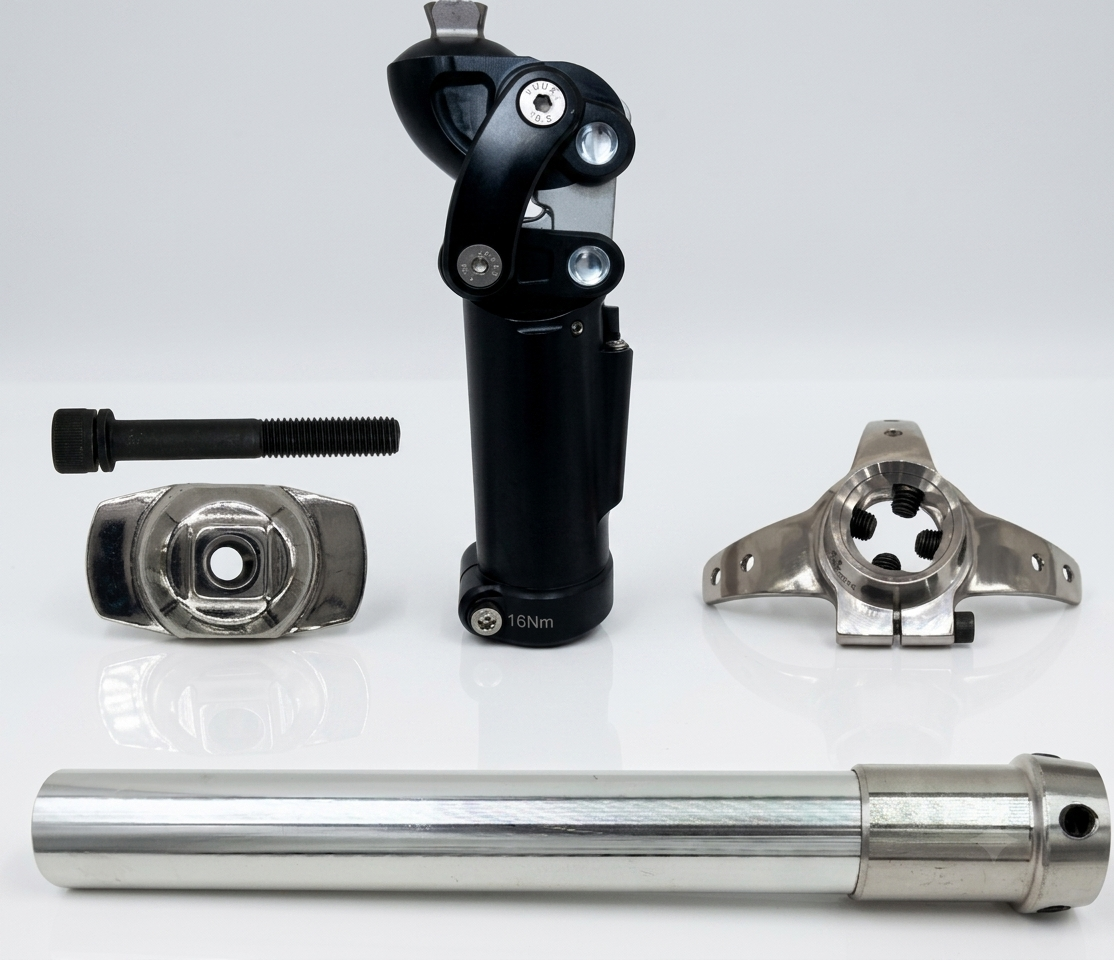

Above Knee Kit- J10 Joint (ECO/EXQ)

PTO AKEXQPN
PTO-AKEXQPN
PTO AKELTPN
PTO-AKELTPN
Part Code Material Part Weight Standard Body Weight Limit
PTO-AKEXQPN
Casting Steel, Stainless Steel & Aluminium
1344 g
Export Quality
100 kg
PTO-AKELTPN
Casting Steel, Aluminium & Titanium
1359 g
Elite Class
100 kg
  • PTO-AKEXQPN consists of:
  • Polycentric Pneumatic Knee Joint (PTO-J13Al-P2).
  • Three-prong socket adapter for Direct Lamination with rotatable pyramidal receiver (PTO-05-1EXQ).
  • Long Pylon with Integrated Adapter (400mm) (PTO-22EXQ).
  • Foot adaptor with Bolt (PTO-26EXQ).
  • PTO-AKELTPN consists of:
  • Polycentric Pneumatic Knee Joint (PTO-J13Al-P2).
  • Three-prong socket adapter for Direct Lamination with rotatable pyramidal receiver (PTO-05-1EXQ)
  • Long Pylon with Integrated Adapter (400mm) (PTO-22TEC)
  • Foot adaptor with Bolt (PTO-26TEC)

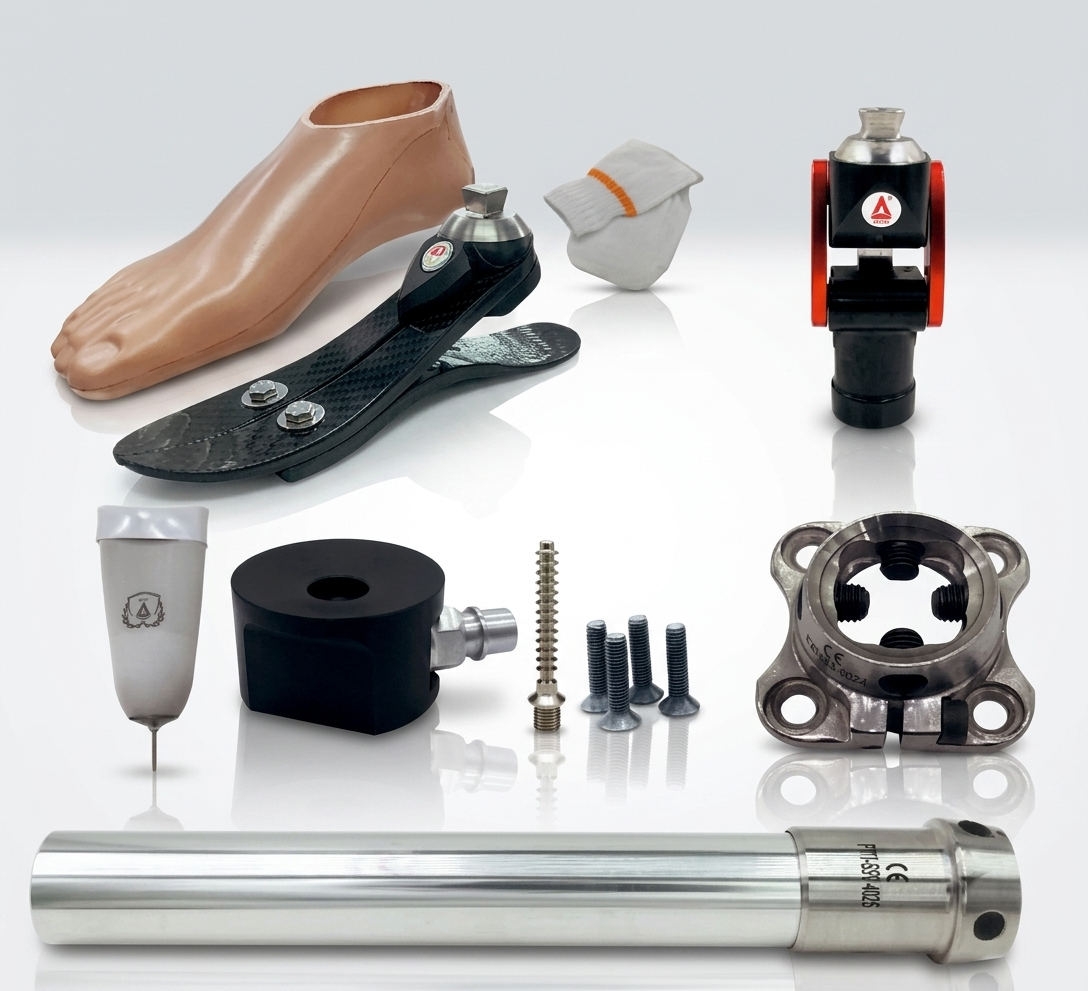

Above Knee Kit

PTO AK EL 1
PTO-AK-EL-1
PTO AK EL 2
PTO-AK-EL-2
PTO AK EL 3
PTO-AK-EL-3
Part Code Material Part Weight Standard Body Weight Limit
PTO-AK-EL-1
Stainless Steel, Carbon & Aluminium
1875 g
Export Quality
100 kg
PTO-AK-EL-2
Stainless Steel, Carbon & Aluminium
2150 g
Export Quality
100 kg
PTO-AK-EL-3
Stainless Steel, Carbon & Aluminium
1955 g
Export Quality
100 kg
  • PTO-AK-EL-1 (Includes):
  • Polycentric Knee Joint (integrated spring loaded extension assist mechanism with pyramidal top and lower end is integral tube adaptor) (PTO-J10).
  • Long Pylon with Integrated Adapter (400 mm) (PTO-22EXQ).
  • Campus Clutch Shuttle Lock (PTO-34). ¦ Perseverance Silicon Liner (PTO-37SLL).
  • Threaded Socket Adapter (Flat Plate type with rotatable pyramidal receiver) (PTO-04-1EXQ).
  • PHOENIX Carbon Foot (Activity 2 – Low ankle).
  • PTO-AK-EL-2 (Includes):
  • Four Bar Pneumatic Knee Joint (PTO-J13AL-P2).
  • Long Pylon with Integrated Adapter (400 mm) (PTO-22EXQ).
  • Campus Clutch Shuttle Lock (PTO-34).
  • Perseverance Silicon Liner (PTO-37SLL).
  • Threaded Socket Adapter (Flat Plate type with rotatable pyramidal receiver) (PTO-04-1EXQ).
  • PHOENIX Carbon Foot (Activity 2 – Low ankle).
  • PTO-AK-EL-3 (Includes):
  • Single Axis Hydraulic Knee Joint KENDALL (PTO-J22).
  • Long Pylon with Integrated Adapter (400 mm) (PTO-22EXQ).
  • Campus Clutch Shuttle Lock (PTO-34).
  • Perseverance Silicon Liner (PTO-37SLL).
  • Threaded Socket Adapter (Flat Plate type with rotatable pyramidal receiver) (PTO-04-1EXQ).
  • PHOENIX Carbon Foot (Activity 2 – Low ankle).
