Modular Pylons, Tube, Misc.

Below Knee Pylon (BK)

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-21ECO	Al & C. Steel	185 g	Economic	100 kg
PTO-21EXQ	Al & S. Steel	120 g	Export Quality	100 kg
PTO-21EXTE	Ti & Al	105 g	Elite Class	125 kg
PTO-21TEC	Ti & Carbon	115 g	Elite Class	150 kg

PTO-21ECO = Consist of Short (200mm) Aluminium alloy tube Pylon (inner dia = 30mm) with Integrated (pasted)
Casting Steel Adapter.

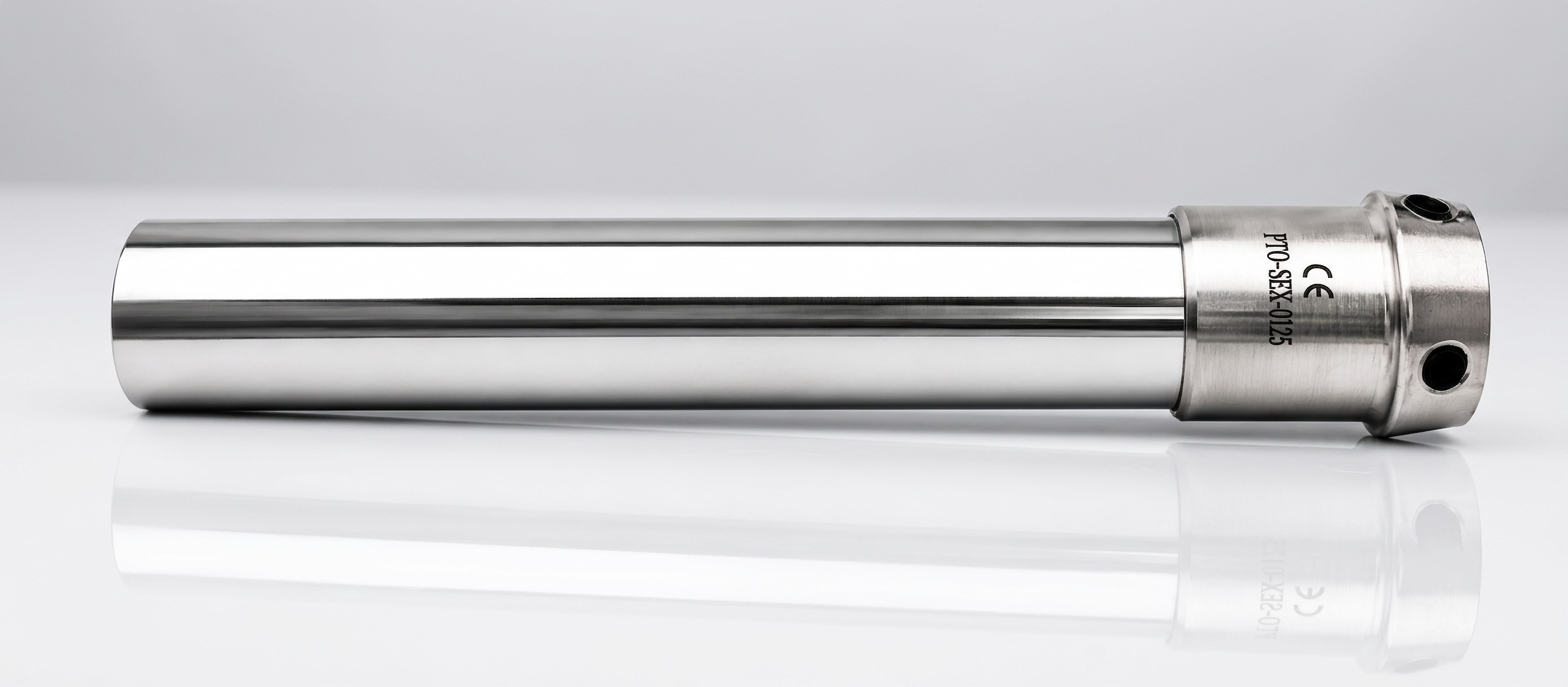

PTO-21EXQ = Consist of Short (200mm) Aluminium alloy tube Pylon (inner dia = 30mm) with Integrated (pasted)
Stainless Steel Adapter.
PTO-21EXTE = Consist of Short (200mm) Aluminium alloy tube Pylon (inner dia = 30mm) with Integrated (pasted)
Titanium Adapter.
PTO-21TEC = Consist of Short (200mm) Carbon alloy tube Pylon (inner dia = 30mm) with Integrated (pasted)
Titanium Adapter.

Above Knee Pylon (AK)

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-22ECO	Al & C. Steel	185 g	Economic	100 kg
PTO-22EXQ	Al & S. Steel	120 g	Export Quality	100 kg
PTO-22EXTE	Ti & Al	105 g	Elite Class	125 kg
PTO-22TEC	Ti & Carbon	115 g	Elite Class	150 kg

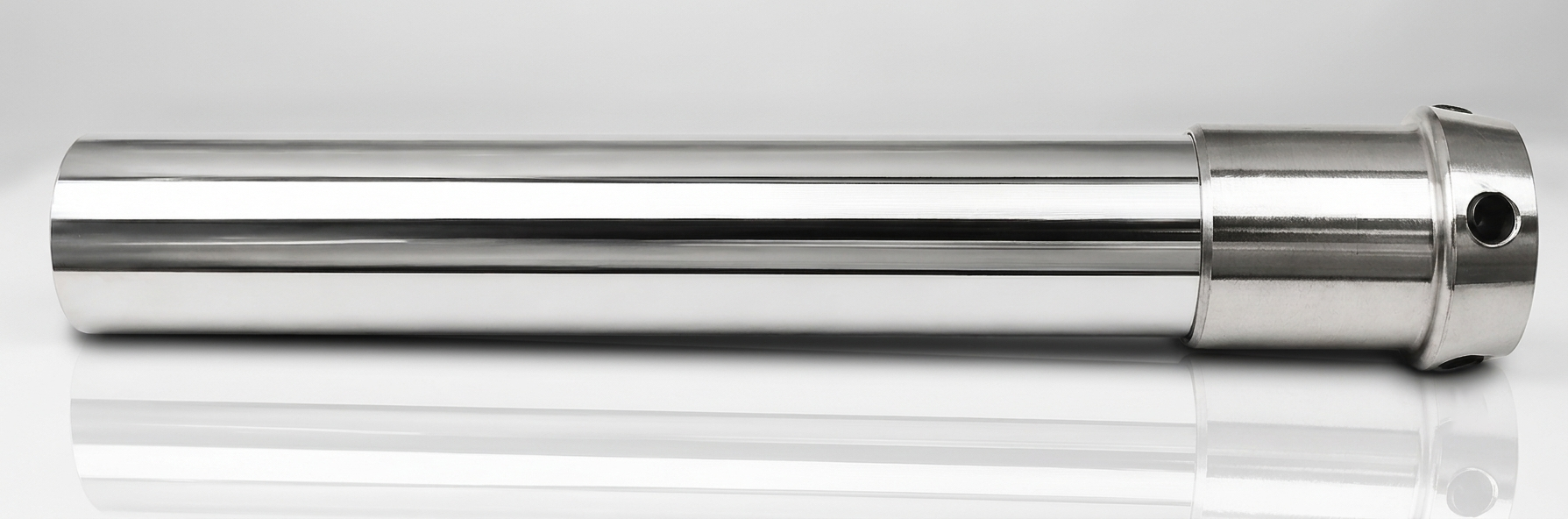

PTO-22ECO = Consist of Long (200mm) Aluminium alloy tube Pylon (inner dia = 30mm) with Integrated (pasted)
Casting Steel Adapter.
PTO-22EXQ = Consist of Long (200mm) Aluminium alloy tube Pylon (inner dia = 30mm) with Integrated (pasted)
Stainless Steel Adapter.

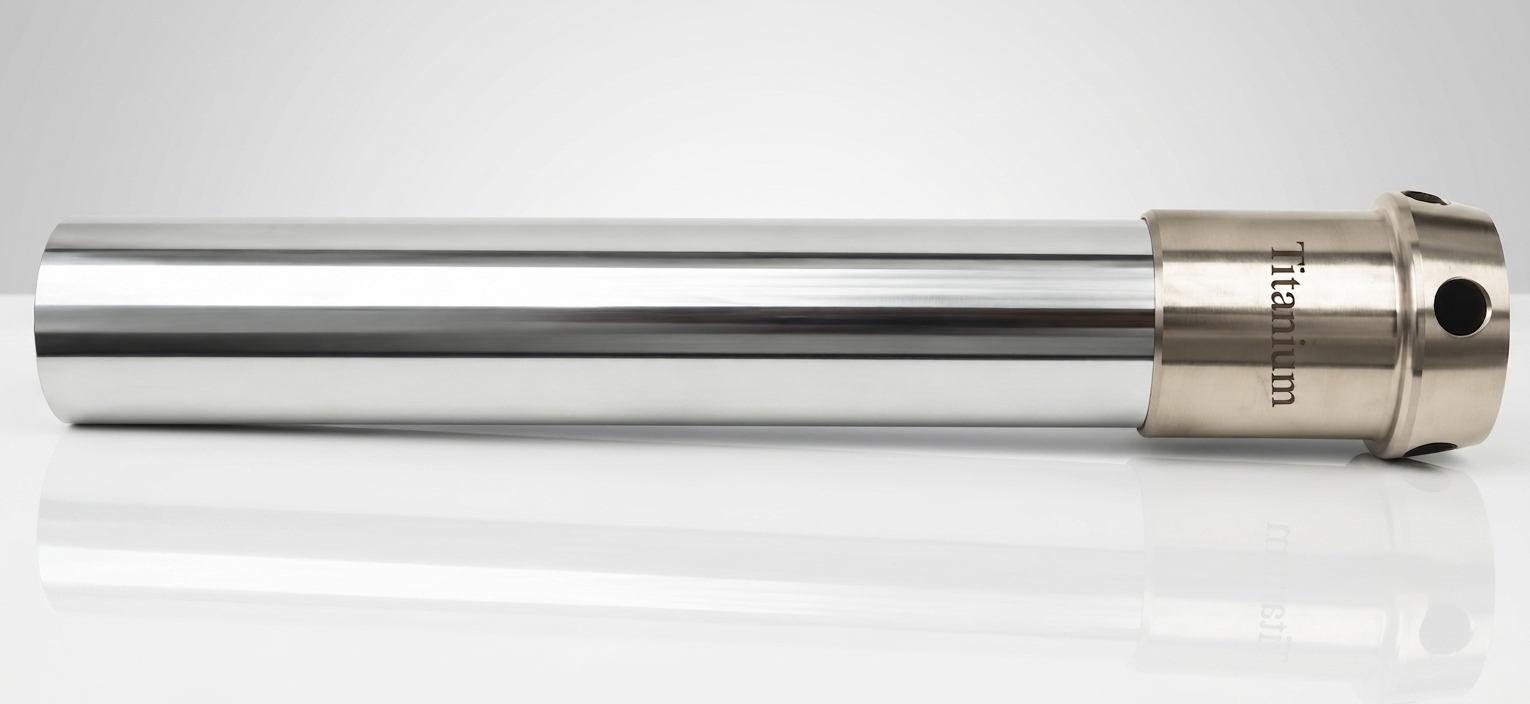

PTO-22EXTE = Consist of Long (200mm) Aluminium alloy tube Pylon (inner dia = 30mm) with Integrated (pasted)
Titanium Adapter.
PTO-22TEC = Consist of Long (200mm) Carbon alloy tube Pylon (inner dia = 30mm) with Integrated (pasted)
Titanium Adapter.

Carbon Tube 400mm

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-23TEC	Carbon	132 g	Elite Class	120 kg

Long Carbon Tube (400mm) (Dia).

Miscellaneous

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-24-1	S. Steel	68 g	Export Quality	120 kg
PTO-24-2	S. Steel	50 g	Export Quality	120 kg
PTO-24-3	S. Steel	50 g	Export Quality	120 kg
PTO-24-4	(Al) Aluminum	50 g	Export Quality	120 kg

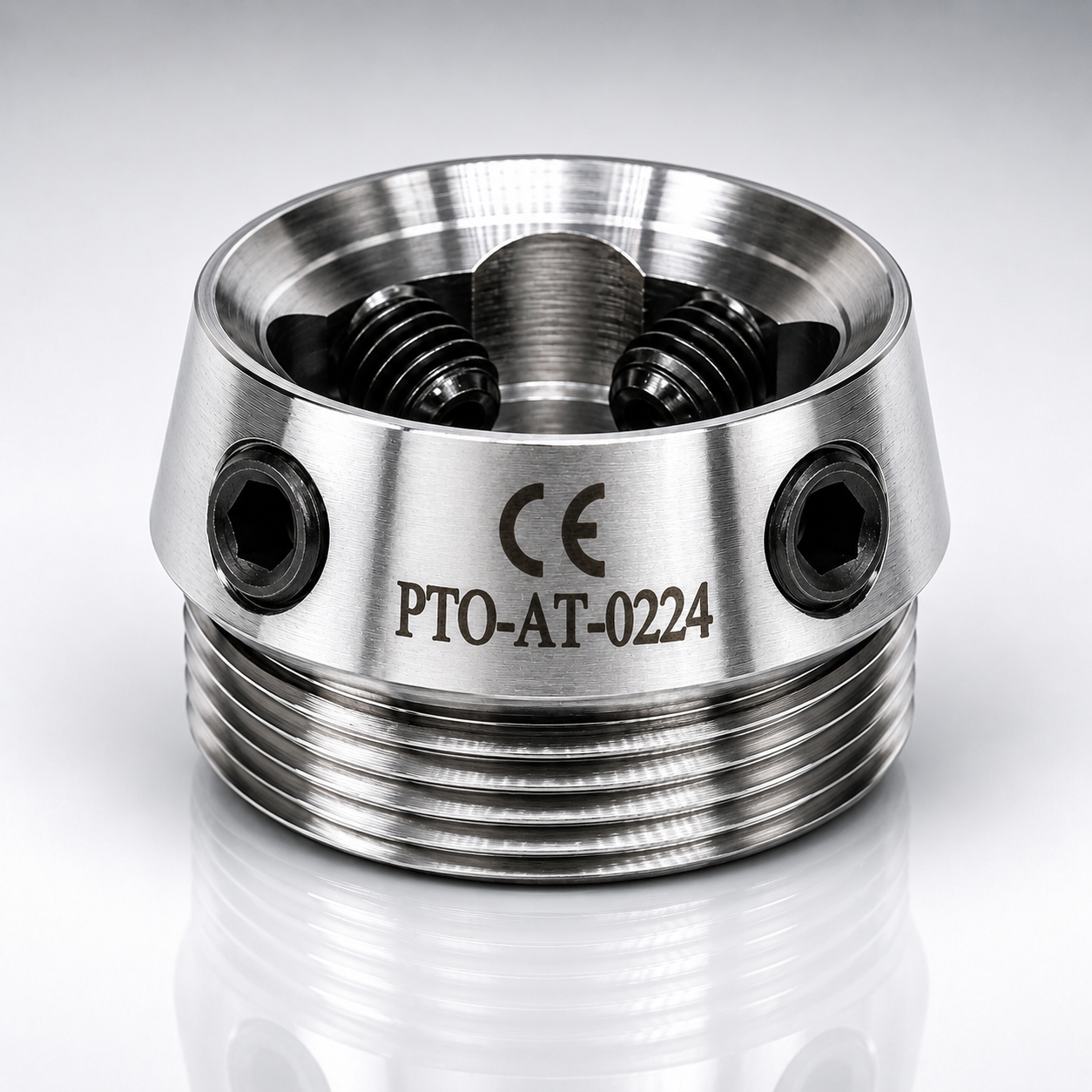

PTO-24-1 Rotatable Pyramidal Receiver Inner (Threaded) With 4 adjustment set screws M8x12.

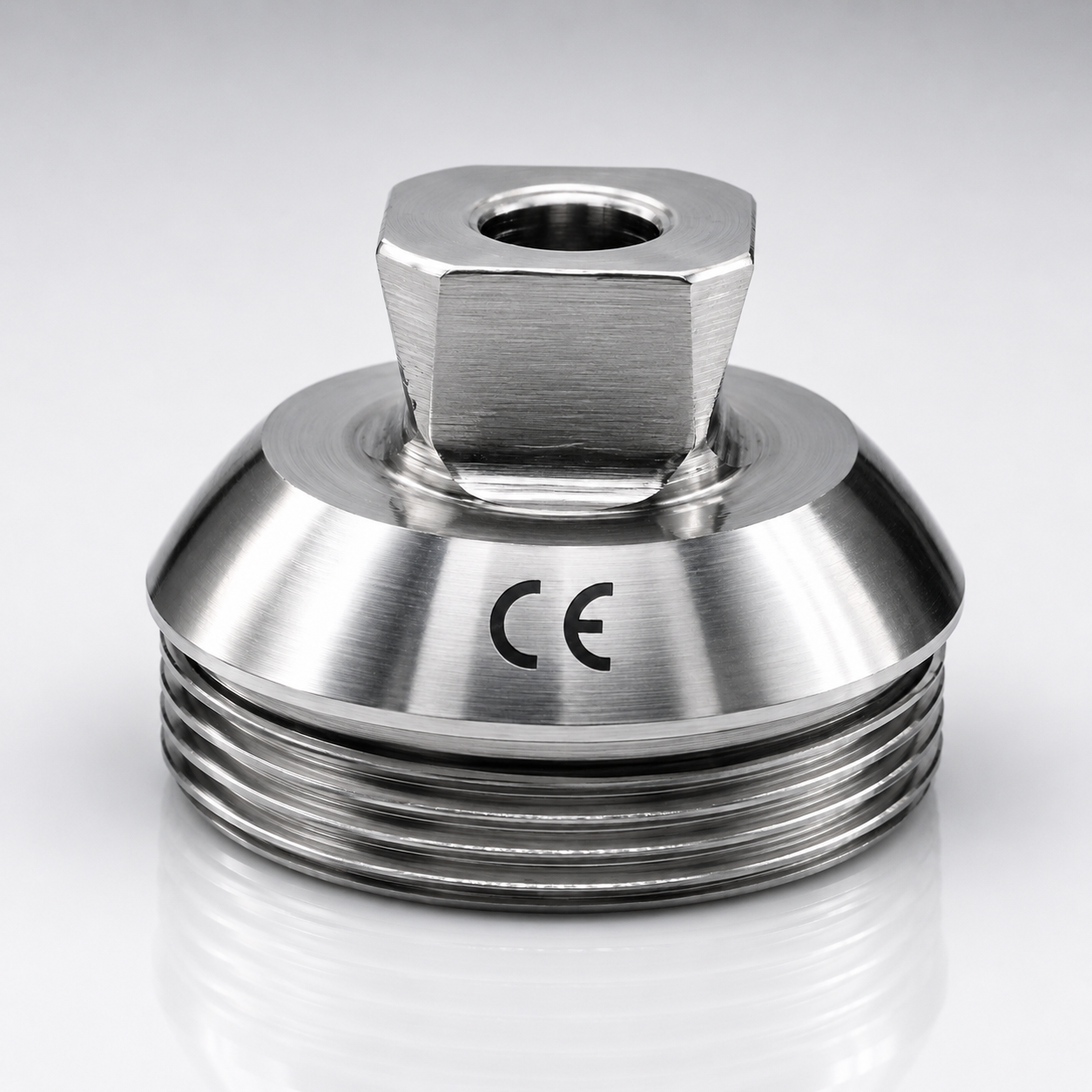

PTO-24-2 Rotatable Pyramid Inner (threaded)

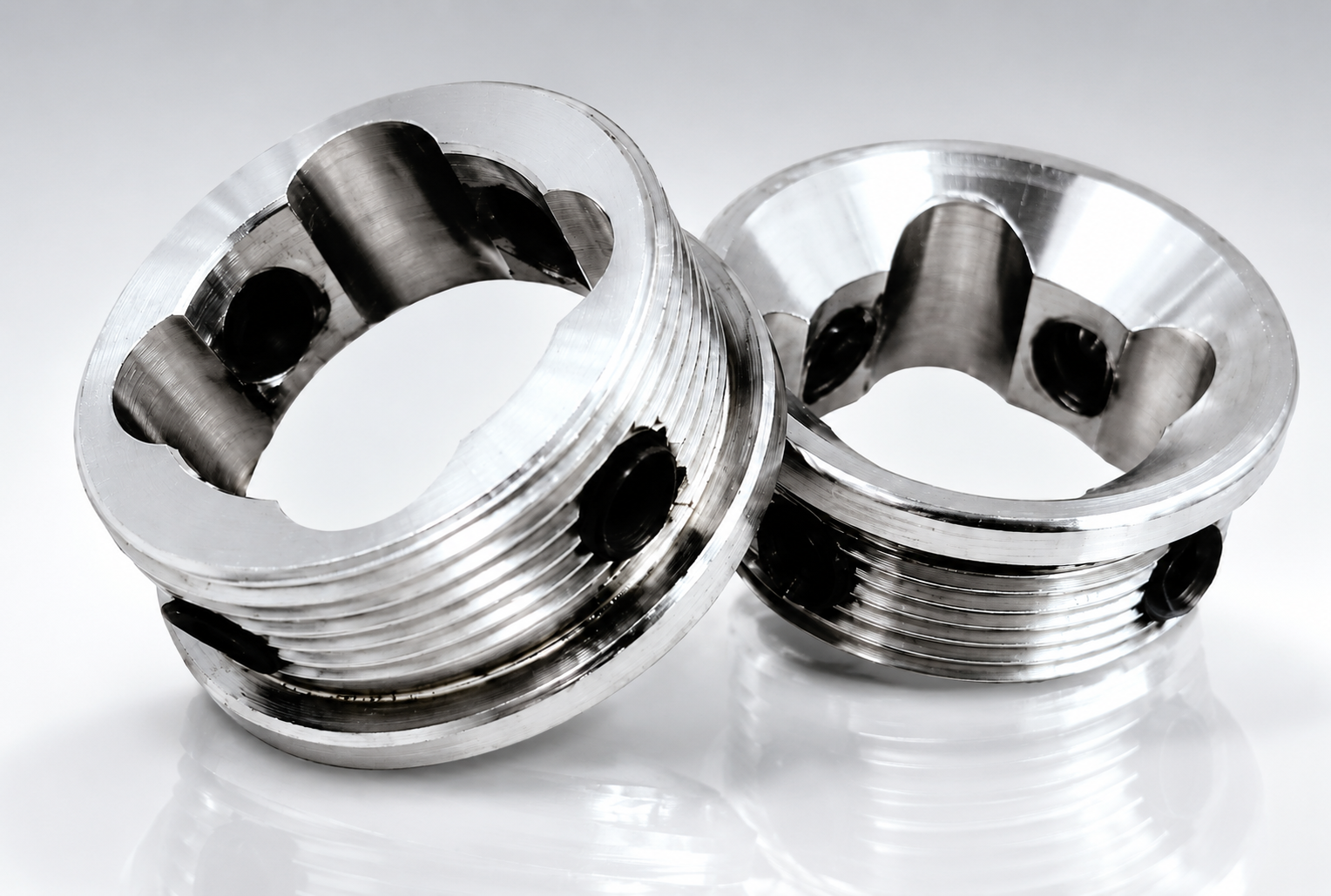

PTO-24-3 Rotatable Pyramidal Receiver Inner (Threaded) With 4 adjustment set screws M8x8.

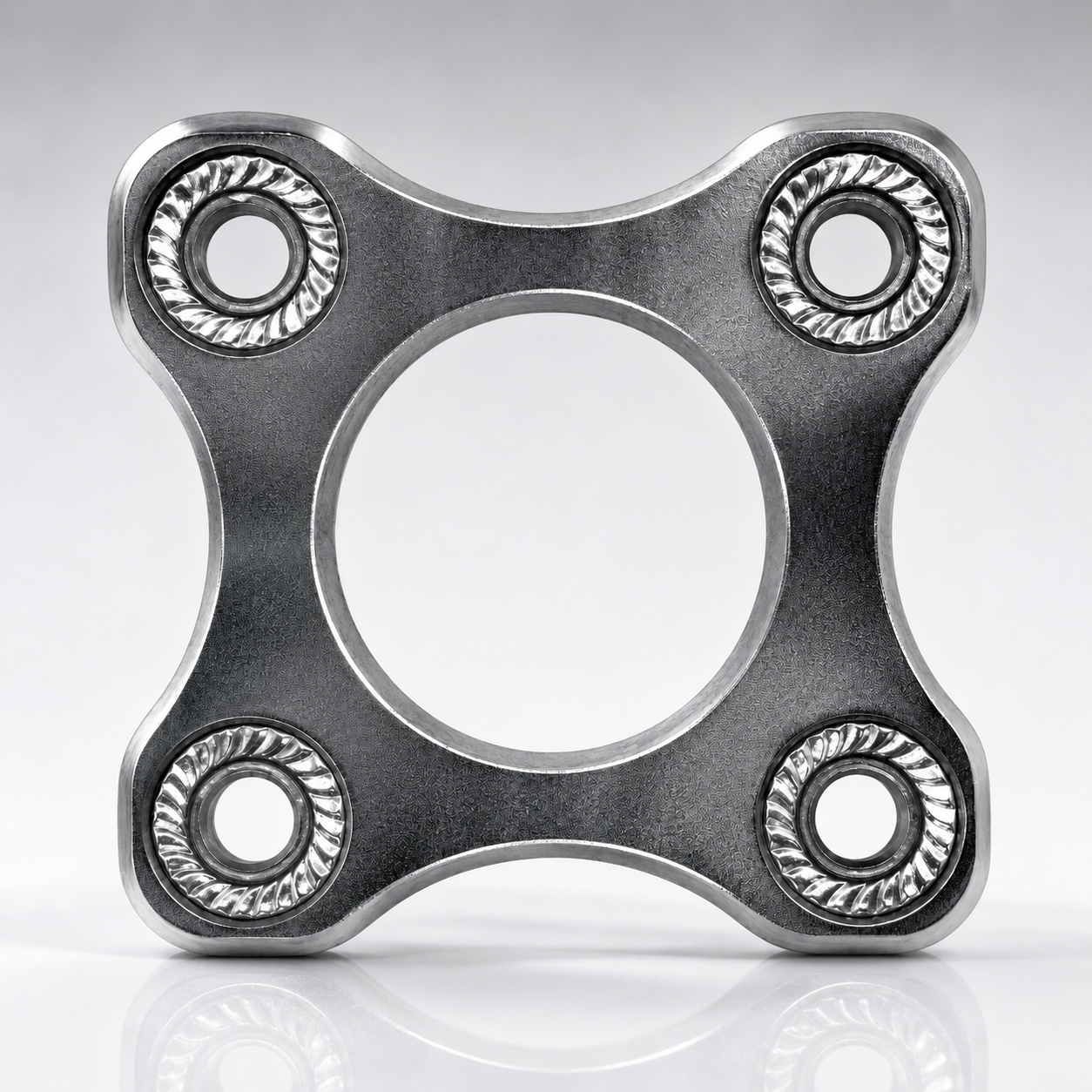

PTO-24-4 Base Plate (Al) Aluminum with 4 Adjustment set screws.

Shifting Adapter Moveable

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-25	S. Steel	325 g	Export Quality	120 kg

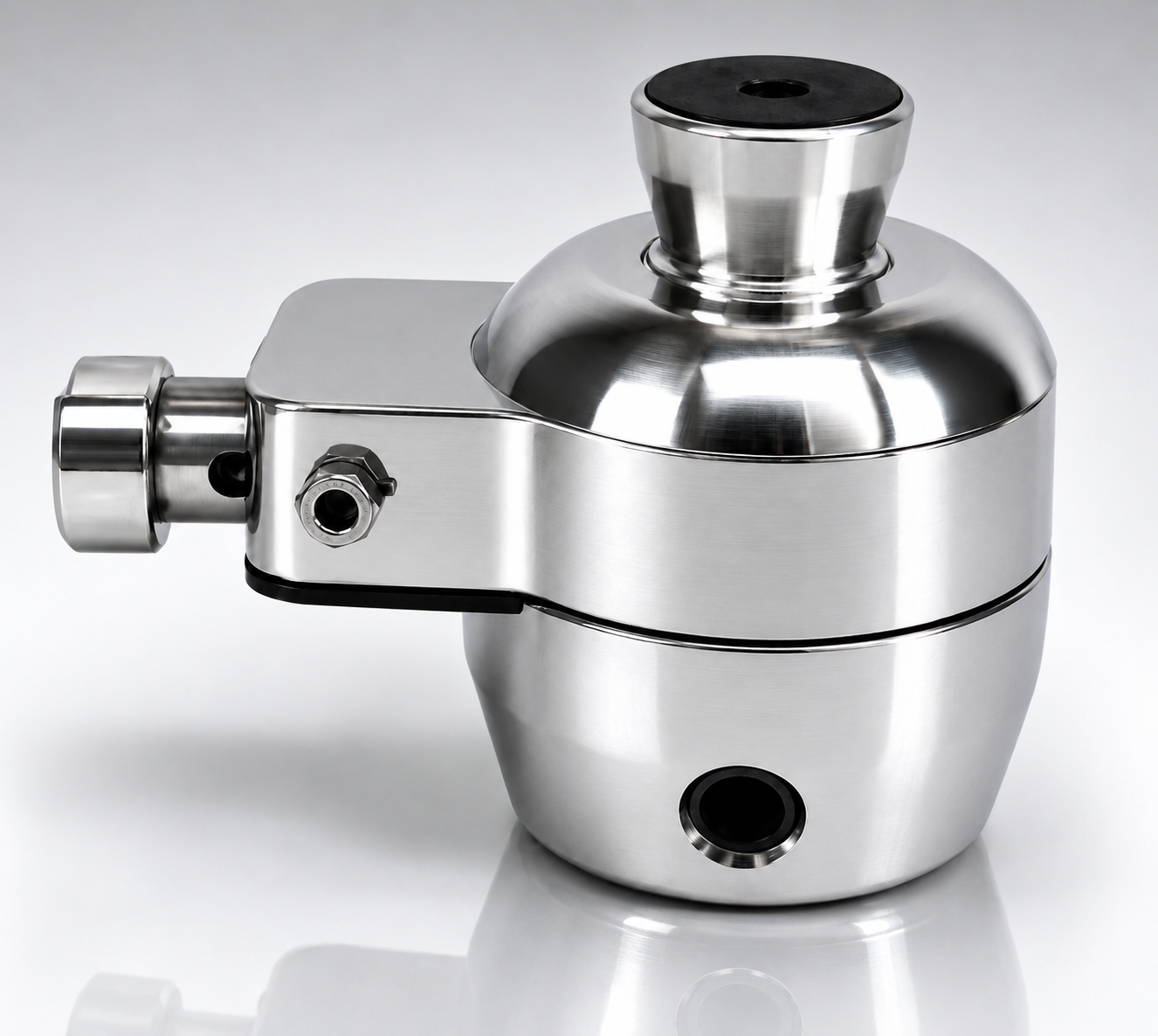

Knee Rotator/ Rotation Socket Adapter with 4 adjustment set screws M8x12.
