Prosthetic Kits - Modular Below Knee Kits

Below Knee Kit - (Economic, Export Quality, Semi Export & Titanium)

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-BKECO	Casting Steel	446 g	Semi Export	80 kg
PTO-BKEXQ	Stainless Steel	387 g	Export Quality	100 kg
PTO-BK-EXTE	Titanium & Aluminum	325 g	Elite Class	120 kg
PTO-BKTEC	Titanium	302 g	Elite Class	125 kg

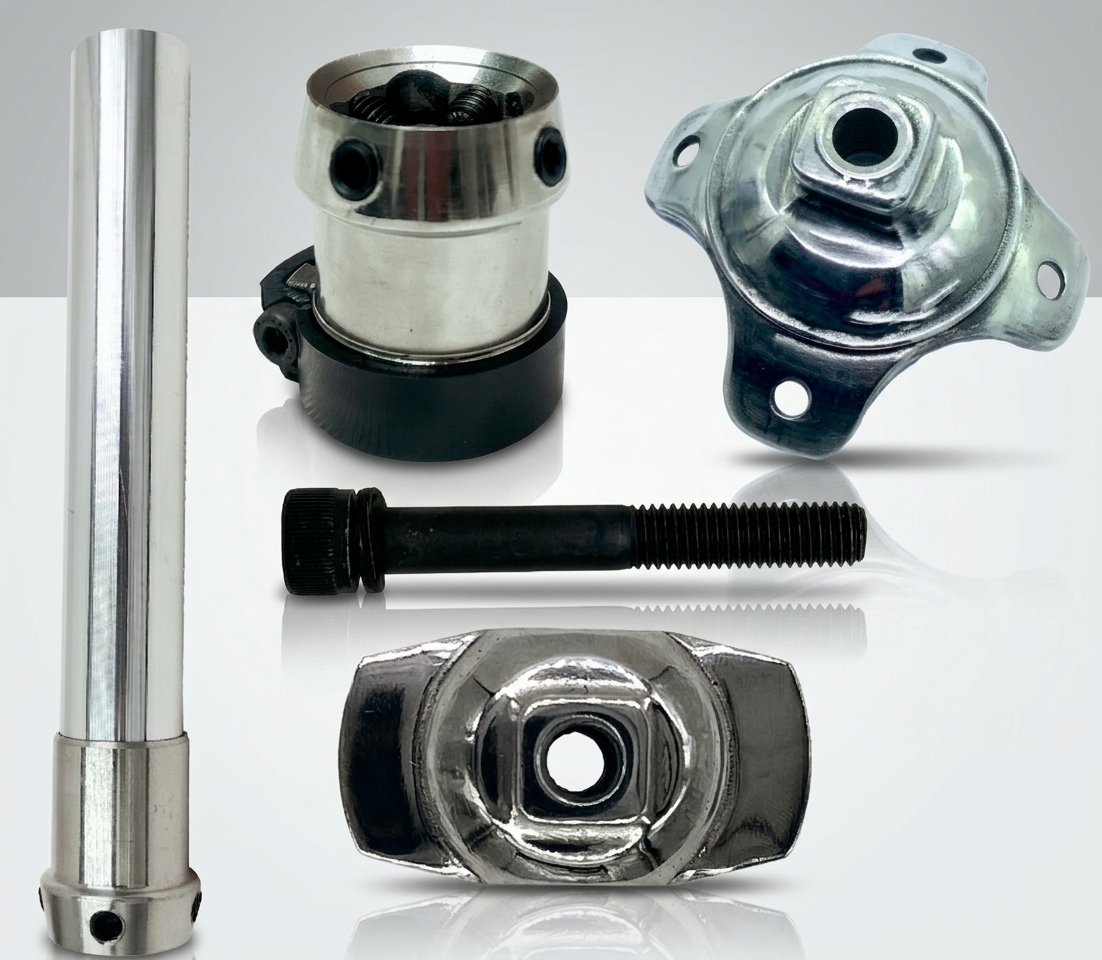

Below Knee Economic Kit – (PTO-BKECO) includes: Pyramidal Socket Adapter for Draping (PTO-01ECO), Adapter to clamp the tube (PTO-11ECO), Short Pylon with integrated adapter (PTO-21ECO), Foot adapter (PTO-26ECO).
Below Knee Export Quality Kit – (PTO-BKEXQ) includes: Pyramidal Socket Adapter for Draping (PTO-01EXQ), Adapter to clamp the tube (PTO-11EXQ), Short Pylon with integrated adapter (PTO-21EXQ), Foot adapter (PTO-26EXQ).
Below Knee Semi Export Kit – (PTO-BKEXTE) includes: Pyramidal Socket Adapter for Draping (PTO-01TEC), Adapter to clamp the tube (PTO-11TEC), Short Pylon with integrated adapter (PTO-21EXTE), Foot adapter (PTO-26TEC).

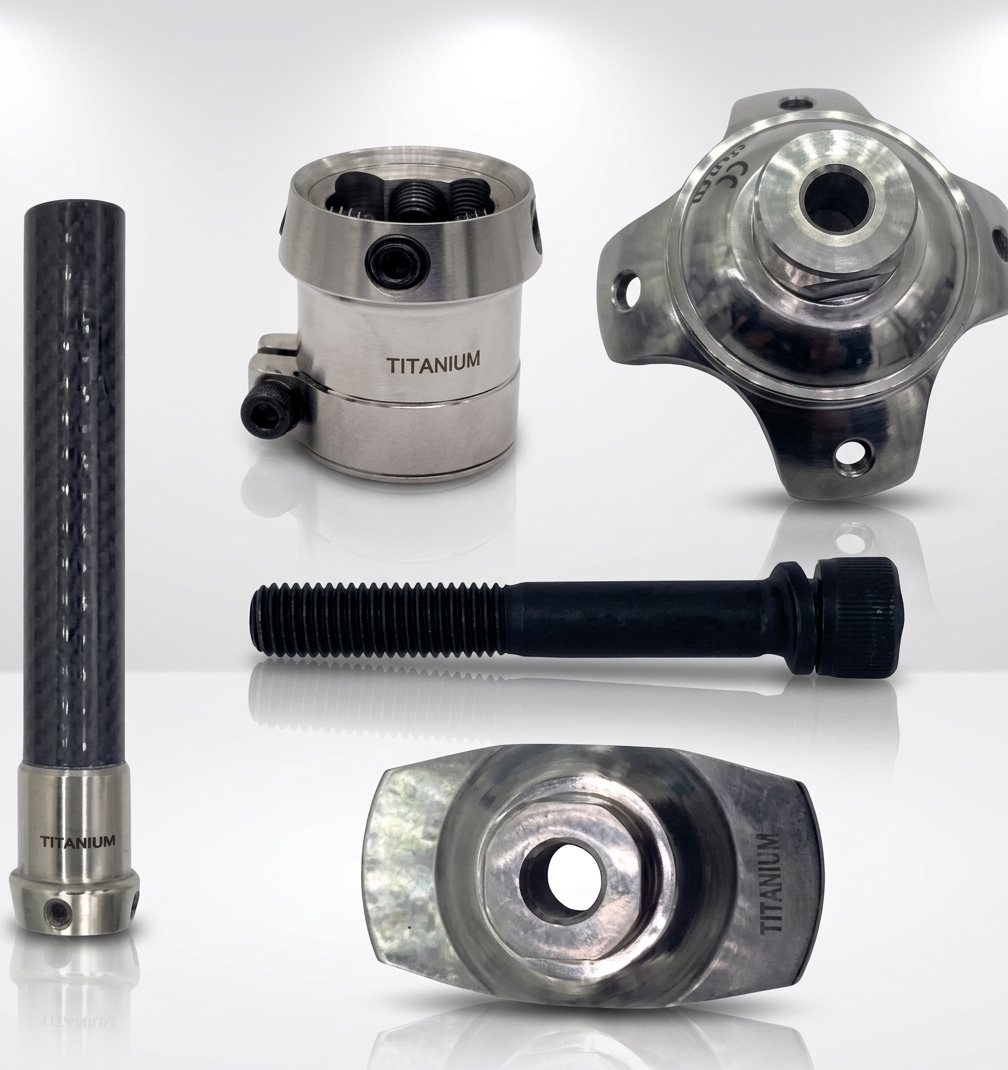

Below Knee Elite Class Kit – (PTO-BKTEC) includes: Pyramidal Socket Adapter for Draping (PTO-01TEC), Adapter to clamp the tube (PTO-11TEC), Short Pylon with integrated adapter (PTO-21TEC), Foot adapter (PTO26TEC).

Below Knee Kit - (BKECO02-1, BKEXQ02-1)

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-BKECO02-1	Casting Steel	483 g	Semi Export	100 kg
PTO-BKEXQ02-1	Stainless Steel	431 g	Export Quality	125 kg

Below Knee Economic Kit – (PTO-ECO02-1) includes- Socket Adapter (Fix Pyramidal- Flat type) with four holes, Base plate & attached Screws. (PTO-02-1ECO), Adapter to clamp the tube (PTO-11ECO), Short Pylon with integrated adapter (PTO21ECO), Foot adapter (PTO-26ECO).
Below Knee Export Quality Kit – (PTO-EXQ02-1) includes- Socket Adapter (Fix Pyramidal- Flat type) with four holes, Base plate & attached Screws. (PTO-02-1EXQ), Adapter to clamp the tube (PTO-11EXQ), Short Pylon with integrated adapter (PTO21EXQ), Foot adapter (PTO-26EXQ).

Below Knee Kit - (BKEXQ04-4)

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-BKEXQ04-4	Stainless Steel	458 g	Export Quality	100 kg

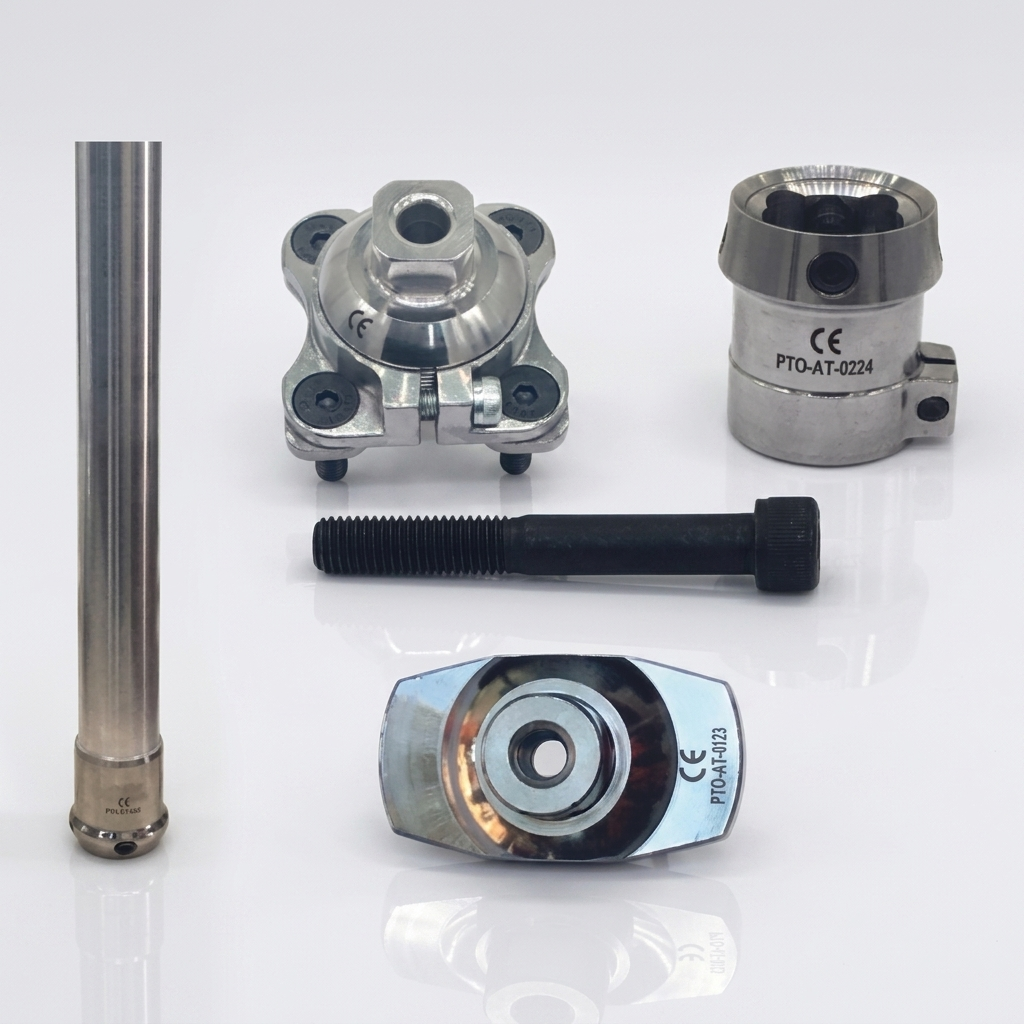

Below Knee Export Kit – (PTO-BKEXQ04-4) includes: Flat Plate type- Threaded Socket Adapter & Rotatable Pyramid With Base Plate (PTO-04-4EXQ), Pyramidal tube clamp adapter(PTO-12EXQ), Short Pylon with integrated adapter (PTO-21EXQ), Foot adapter (PTO-26EXQ).

Below Knee Kit- (ECO07-1, EXQ07-1)

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-BKECO07-1	Casting Steel	446 g	Semi Export	80 kg
PTO-BKEXQ07-1	Stainless Steel	387 g	Export Quality	100 kg

Below Knee Economic Kit – (PTO-BKECO07-1) includes- Plastic Socket Adapter with Flat type- Pyramidal Socket Adapter (PTO-07-1EXQ), Adapter to clamp the tube (PTO-11ECO), Short Pylon with integrated adapter (PTO-21ECO), Foot adapter (PTO26ECO).

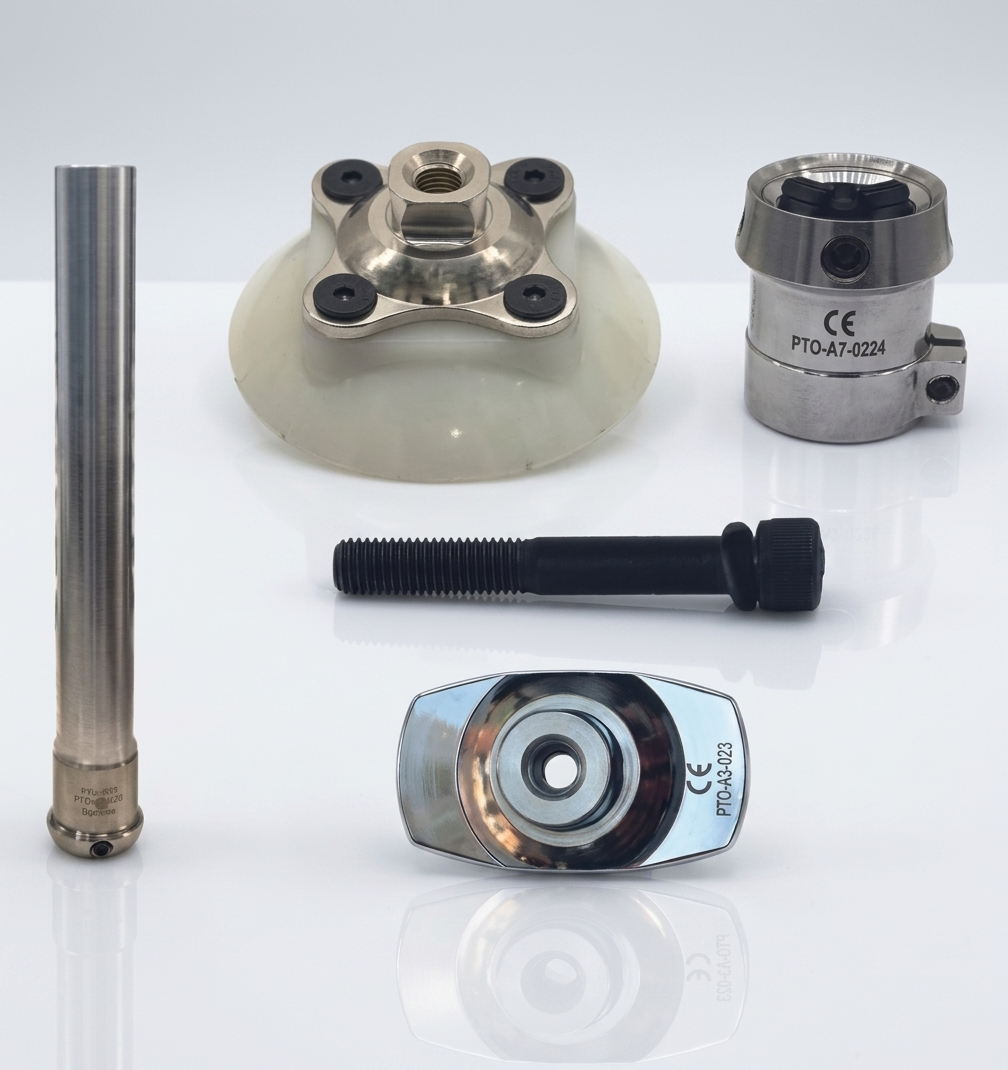

Below Knee Export Quality Kit – (PTO-BKEXQ07-1) includes- Plastic Socket Adapter with Flat type- Pyramidal Socket Adapter (PTO-07-1EXQ), Adapter to clamp the tube (PTO-11EXQ), Short Pylon with integrated adapter (PTO-21EXQ), Foot adapter (PTO26EXQ).

Below Knee Kit- (ECO08, EXQ08)

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-BKECO08	Casting Steel	480 g	Semi Export	80 kg
PTO-BKEXQ08	Stainless Steel	450 g	Export Quality	100 kg

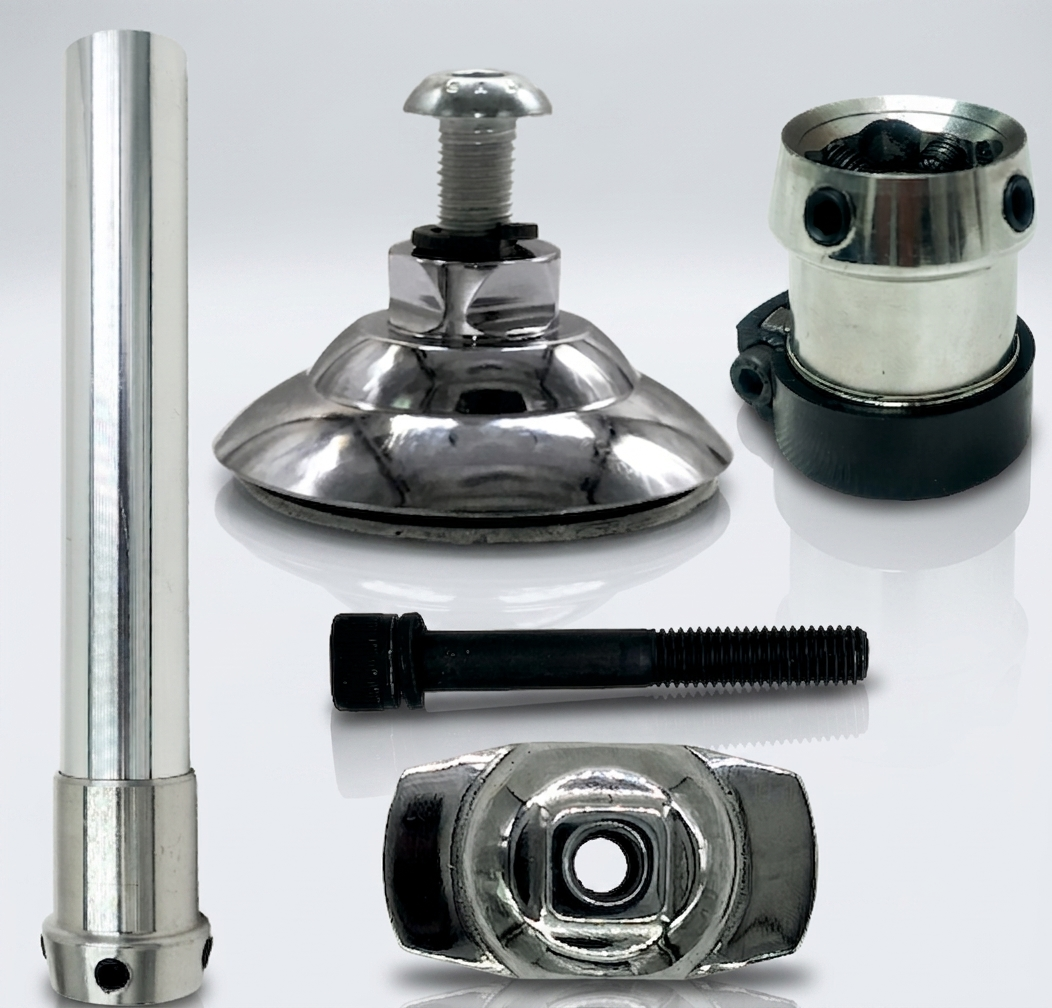

Below Knee Economic Kit – (PTO-BKECO08) includes: Pyramidal Socket Adapter for Draping(PTO-08ECO), Adapter to clamp the tube (PTO-11ECO). Short Pylon with integrated adapter (PTO-21ECO), Foot adapter (PTO-26ECO).
Below Knee Export Quality Kit – (PTO-BKEXQ08) includes: Pyramidal Socket Adapter for Draping(PTO-08EXQ), Adapter to clamp the tube (PTO-11EXQ). Short Pylon with integrated adapter (PTO-21EXQ, Foot adapter (PTO-26EXQ).

Below Knee Export Kit- (PTO-BKEXQ09)

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-BKEXQ09	Stainless Steel	446 g	Export Export	100 kg

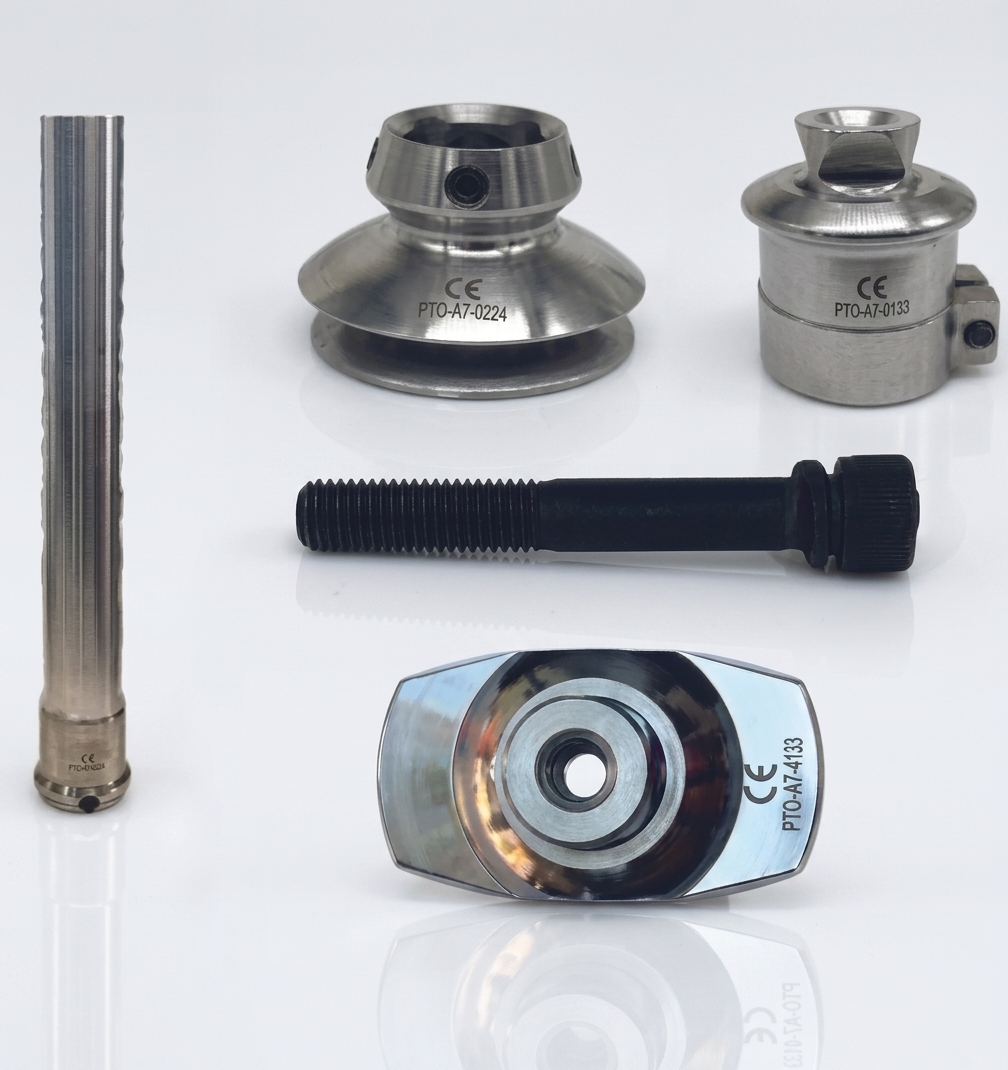

Below Knee Export Quality Kit – (PTO-BKEXQ09) includes: Pyramidal Socket Adapter for Drapping (PTO-09EXQ), Pyramidal tube clamp Adapter(PTO-12EXQ), Short Pylon with integrated adapter(PTO-21EXQ), Foot adapter(PTO-26EXQ).

Below Knee Kit- BKEL-1 / BKEL-2

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-BK-EL-1	Stainless Steel	1250 g	Export Quality	100 kg
PTO-BK-EL-2	Titanium Steel	1110 g	Elite Class	125 kg

Below Knee Export Quality Kit – (PTO-BK-EL-1) includes- Short Pylon with Integrated Adapter (200 mm) (PTO-21EXQ), Campus Clutch Shuttle Lock with Pin (PTO-34), Perseverance Silicon Liner (PTO-37SLL), Flat Type – Pyramidal Socket Adapter (PTO-02EXQ), PHOENIX Carbon Foot (Activity 2 – Low ankle).

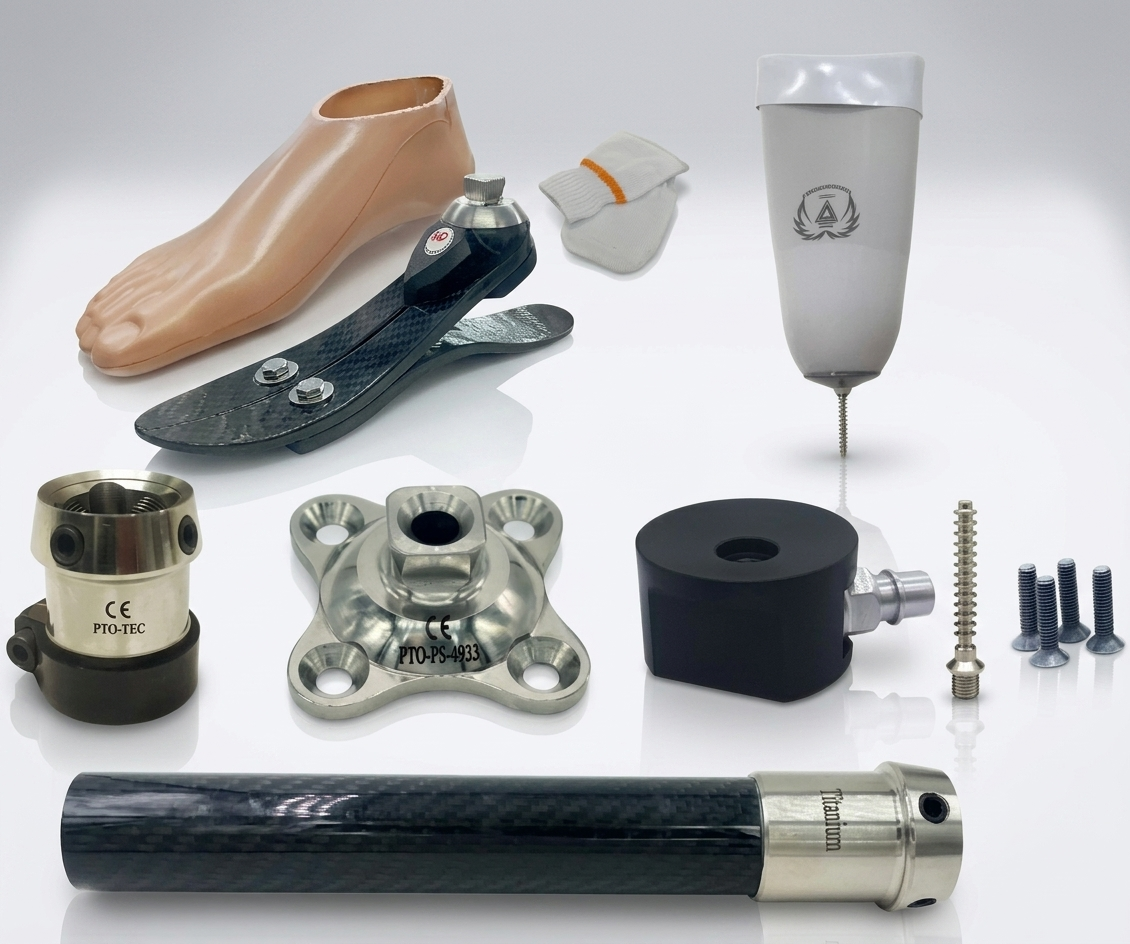

Below Knee Titanium Kit – (PTO-BK-EL-2) includes- Short Pylon with Integrated Adapter (200 mm) (PTO-21TEC), Campus Clutch Shuttle Lock with Pin (PTO-34), Perseverance Silicon Liner (PTO-37SLL), Flat Type – Pyramidal Socket Adapter (PTO02TEC), PHOENIX Carbon Foot (Activity 2 – Low ankle).
