Child Prosthetic

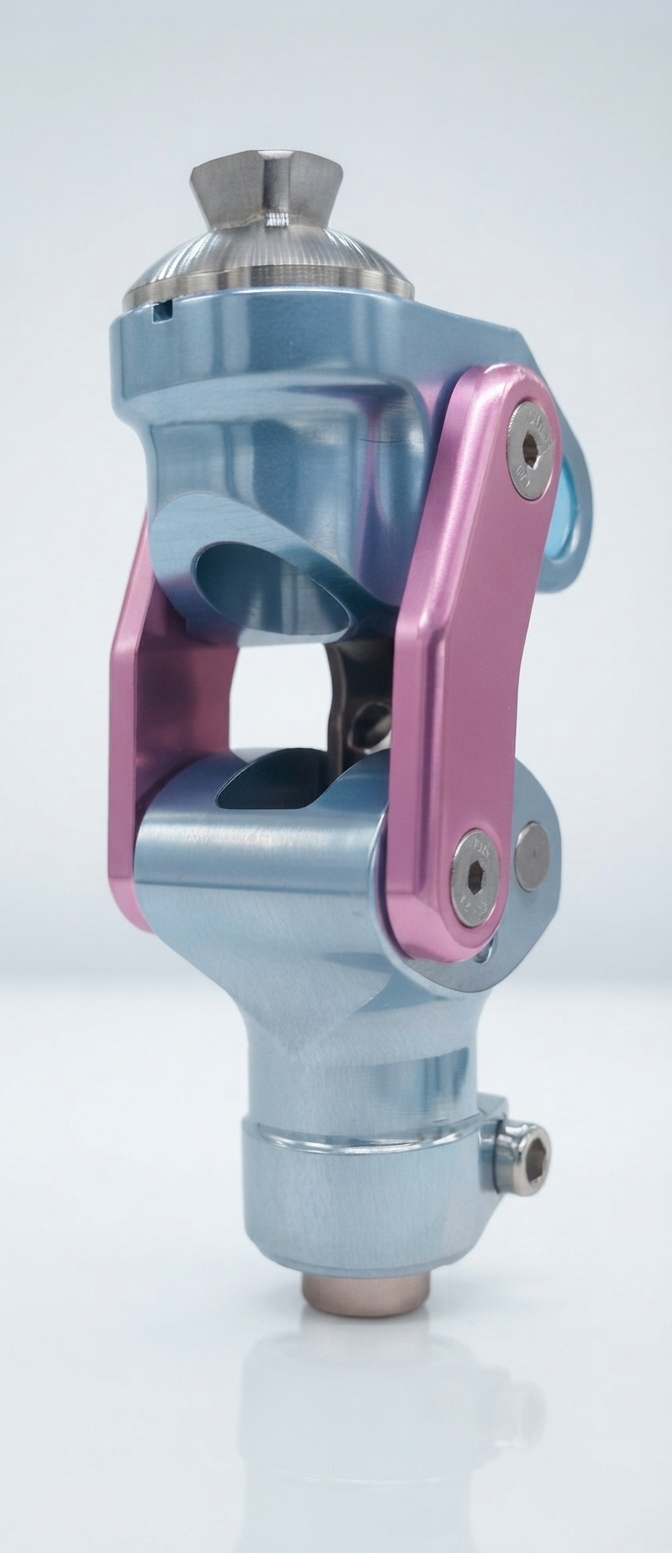

Child Four Bar Mechanical Knee Joint (Al)

Part Code	Material	Standard	Part Weight	Body Weight Limit
PTO-CH01	Al	Export Quality	400 g	45 kg

Pediatric light weight knee joint
Four bar linkage mechanism
Suitable with pediatric tube
Stance face stability

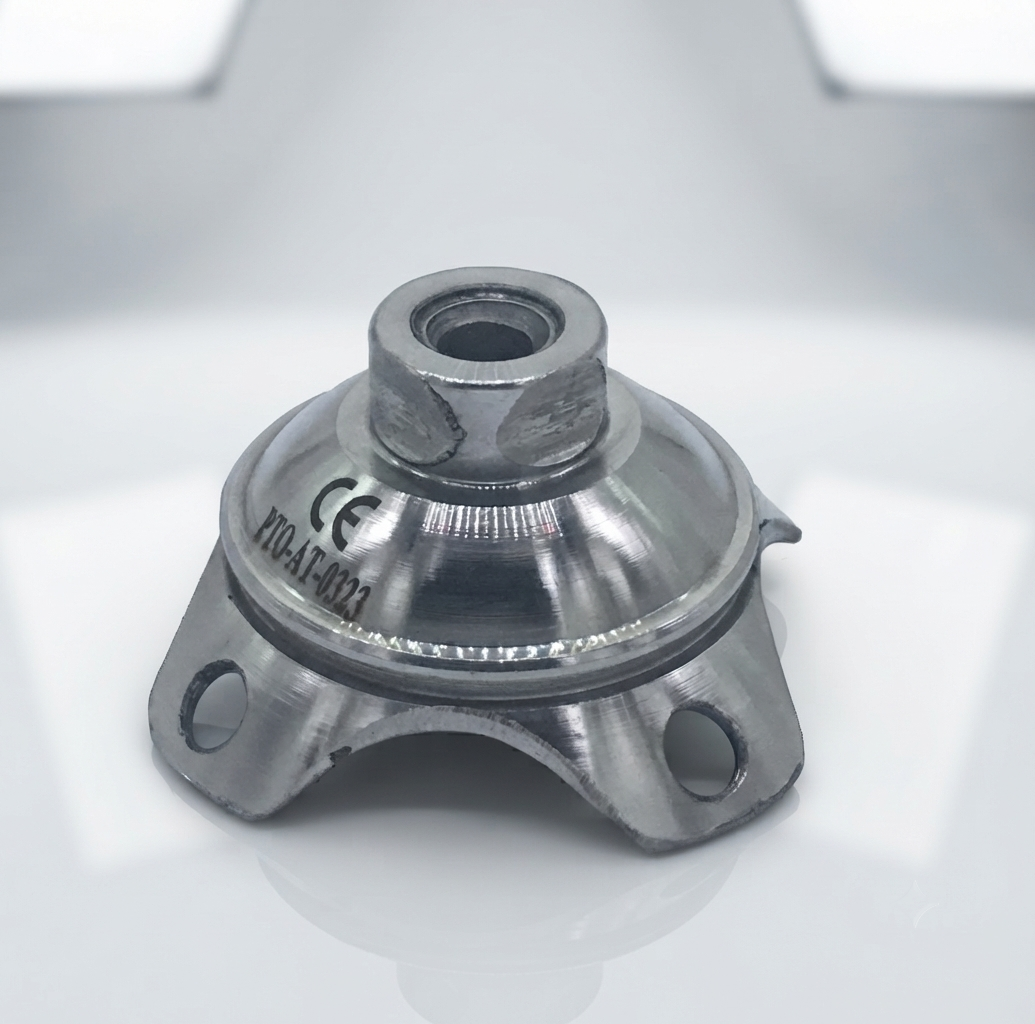

Child 4 Prong BK Socket Adapter

Part Code	Material	Standard	Part Weight	Body Weight Limit
PTO-CH02	S. Steel	Export Quality	45 g	45 kg

With adjustment core and lamination anchor
For trans-tibial sockets
For direct lamination

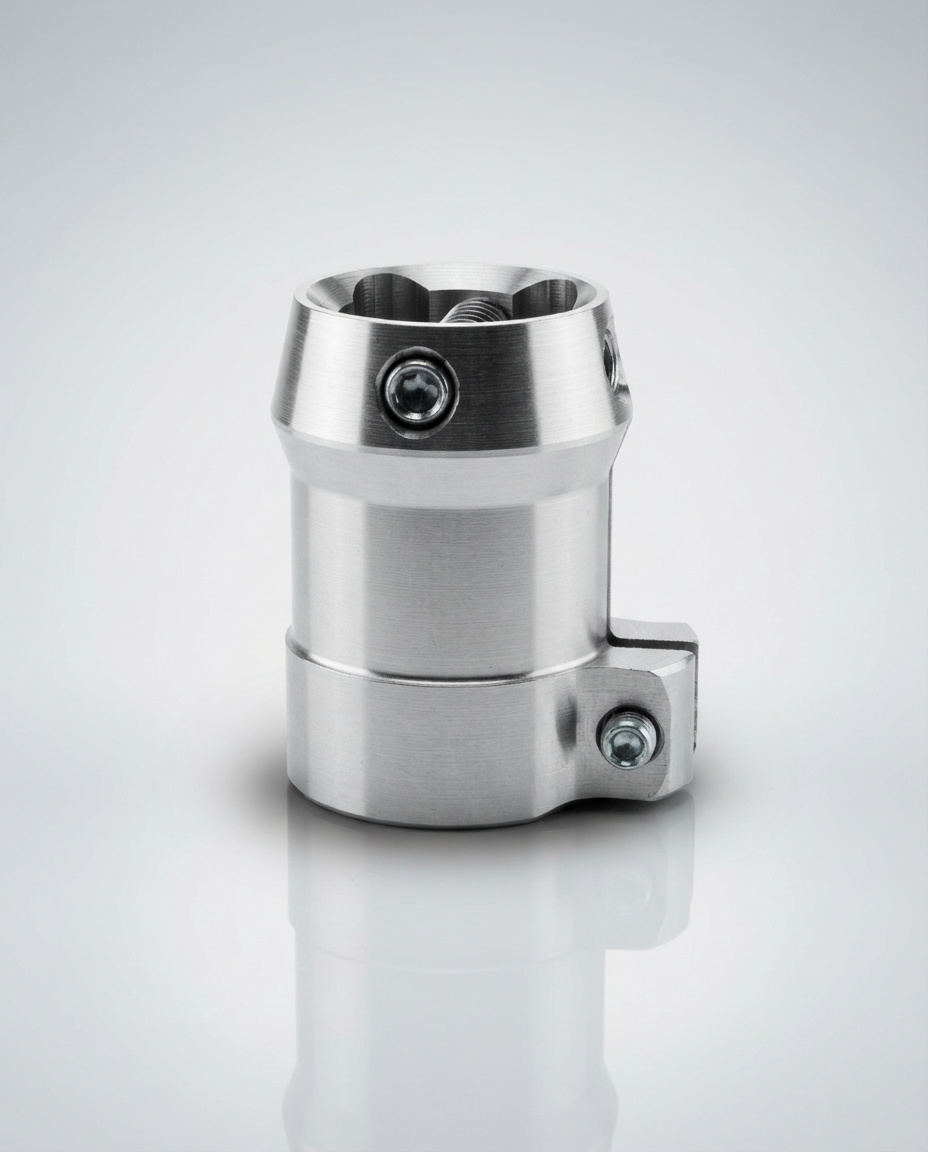

Child Tube Clamp Adapter

Part Code	Material	Standard	Part Weight	Body Weight Limit
PTO-CH03	S. Steel	Export Quality	60 g	45 kg

Adapter to clamp the tube (Pyramidal receiver type)- Regular, inner die. 22 mm.
With 4 adjustment set screws M6x8, zinc-plated.

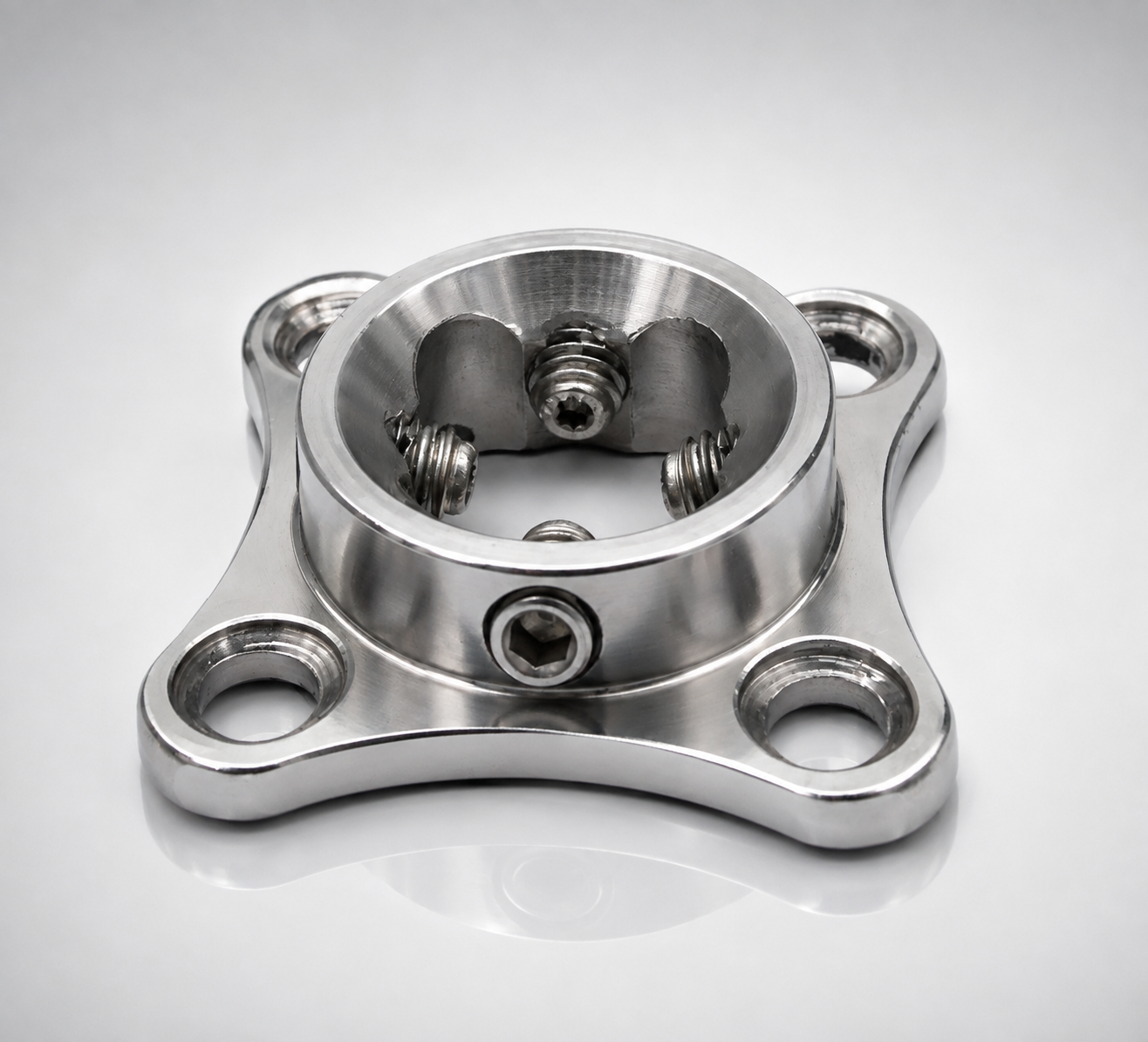

Child Flat Pyramidal Receiver Socket Adapter

Part Code	Material	Standard	Part Weight	Body Weight Limit
PTO-CH04	S. Steel	Export Quality	50 g	45 kg

Socket Adapter (Pyramidal Receiver-Flat type) with four holes.

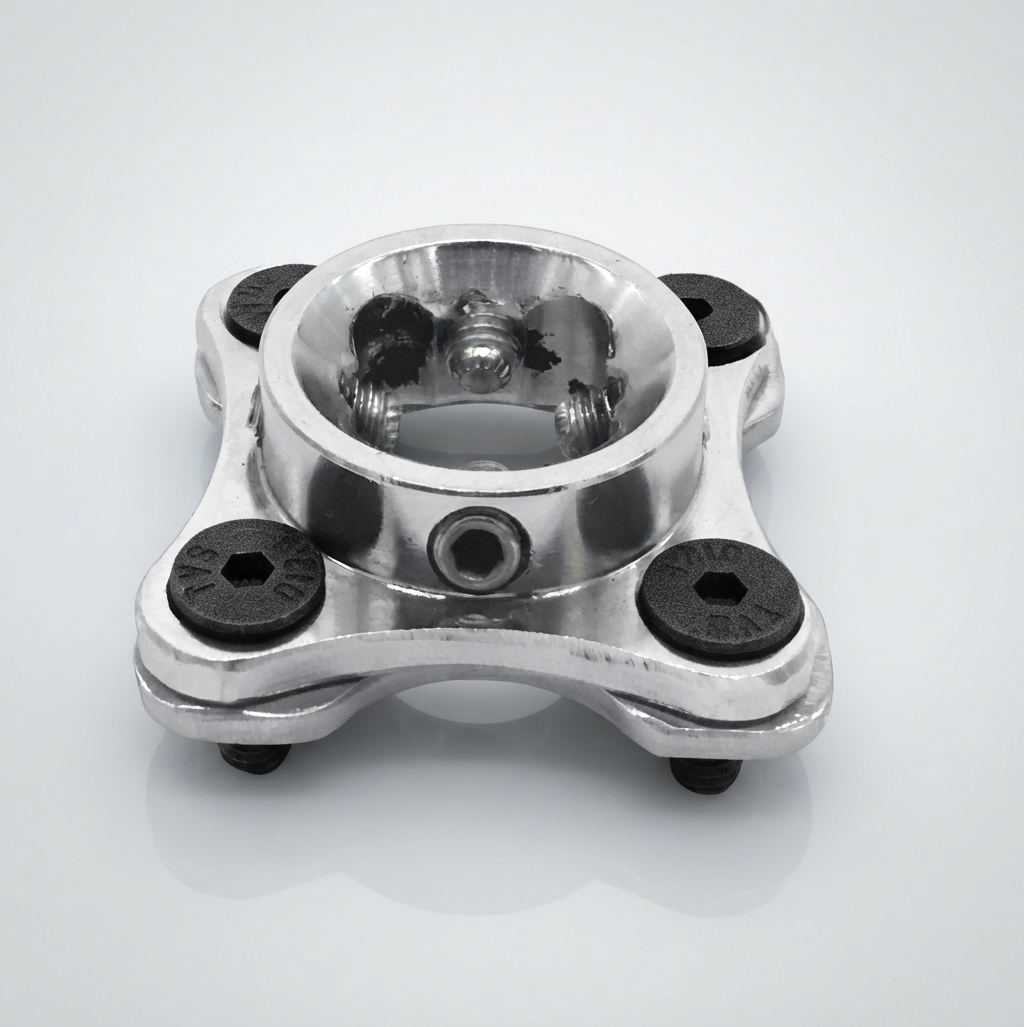

Child Flat Pyramidal receiver Socket Adapter With base plate

Part Code	Material	Standard	Part Weight	Body Weight Limit
PTO-CH04-1	S. Steel	Export Quality	170 g	120 kg

Socket Adapter (Pyramidal Receiver-Flat type) with four holes.
Base plate & attached Screws.

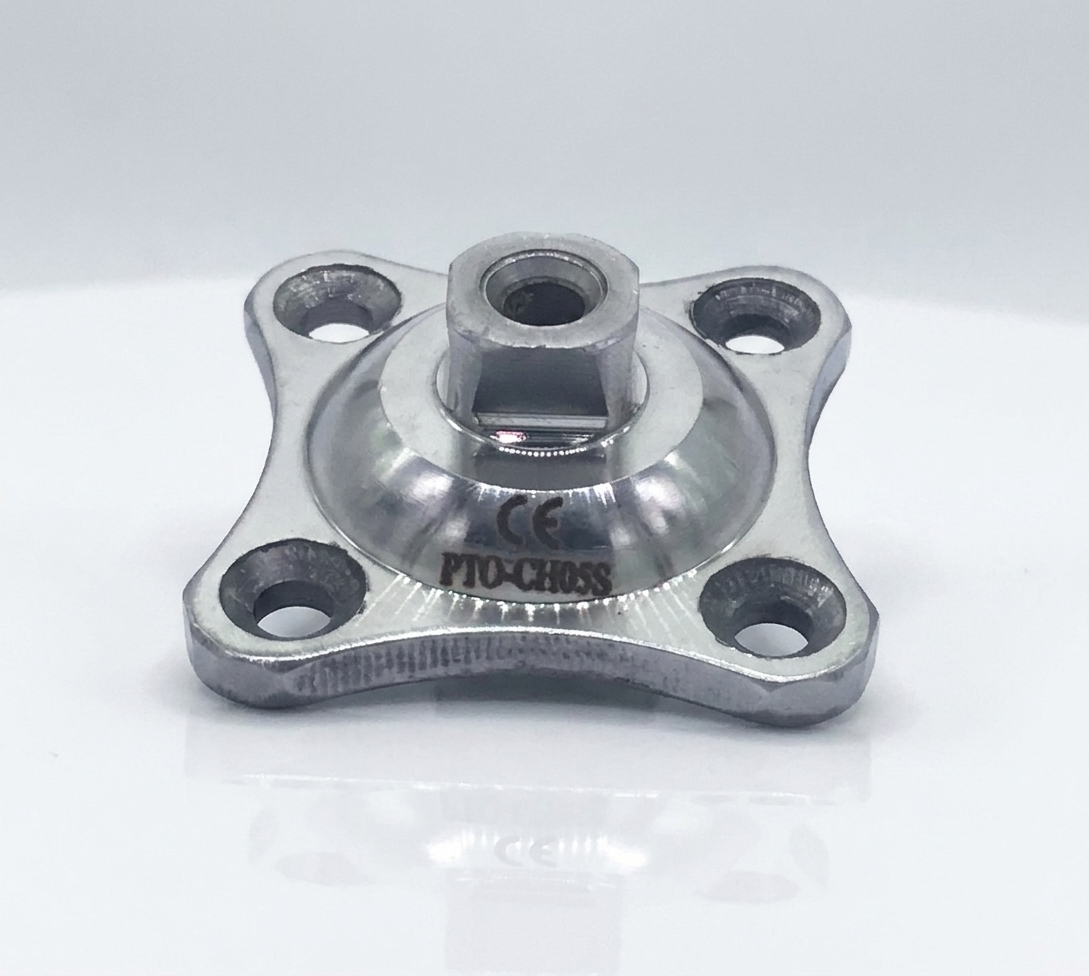

Child Flat Pyramidal Socket Adapter

Part Code	Material	Standard	Part Weight	Body Weight Limit
PTO-CH05	S.Steel	Export Quality	55 g	45 kg

Socket Adapter (Fix Pyramidal-Flat type) with four holes.

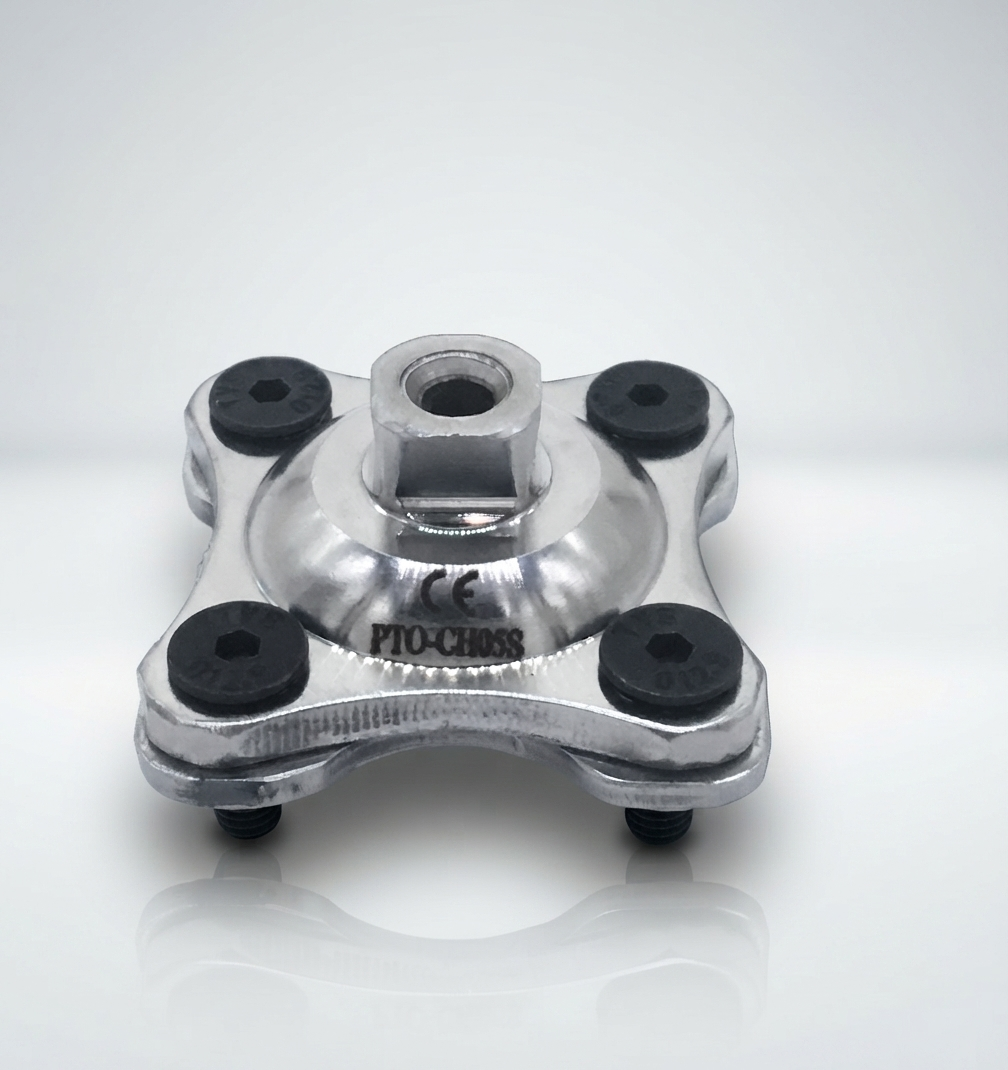

Child Flat Pyramidal Socket Adapter with base plate

Part Code	Material	Standard	Part Weight	Body Weight Limit
PTO-CH05-1	S.Steel	Export Quality	155 g	45 kg

Socket Adapter (Fix Pyramidal- Flat type) with four holes.
Base plate & attached Screws.

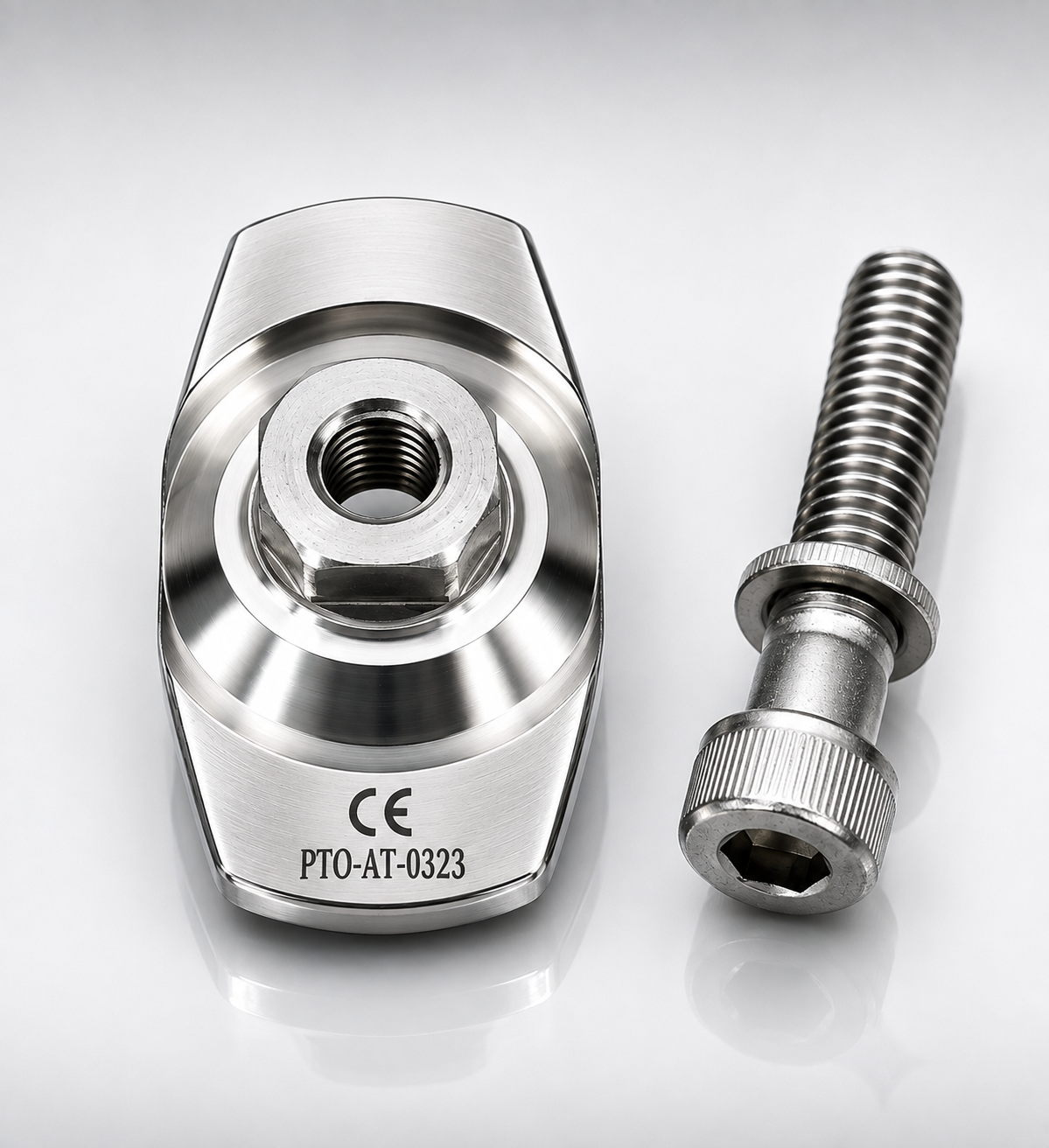

Child Foot Adapter

Part Code	Material	Standard	Part Weight	Body Weight Limit
PTO-CH06	S.Steel	Export Quality	40 g	45 kg

Foot Adapter with Bolt (MS) (M8) (length-50mm) & spring washer.
For connection of different modular part weight or distal. Socket ends.

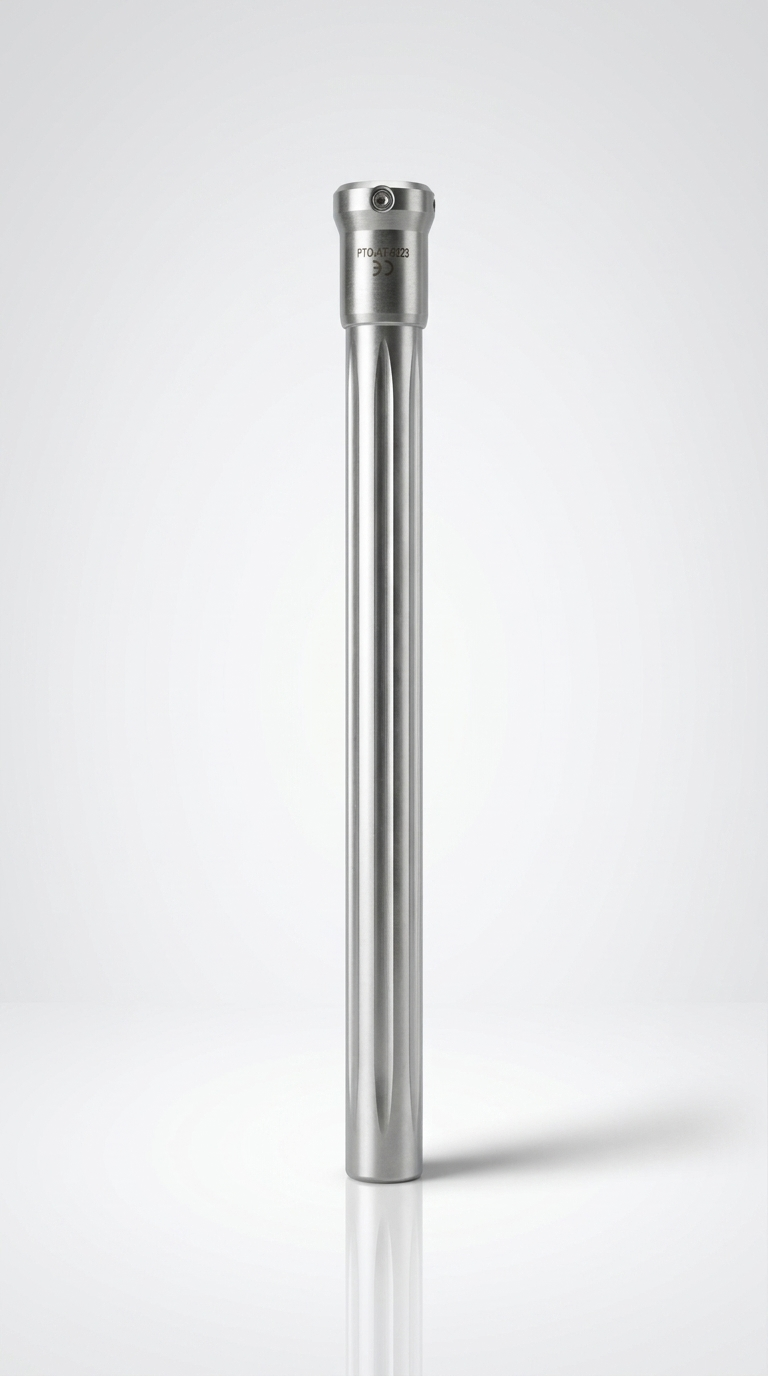

Aluminum Child Pylon

Part Code	Material	Standard	Part Weight	Body Weight Limit
PTO-CH07	Al & S.S	Export Quality	150 g	45 kg

Long – 300 mm with integrated adaptor (Stainless Steel) (Dia : 22 mm)

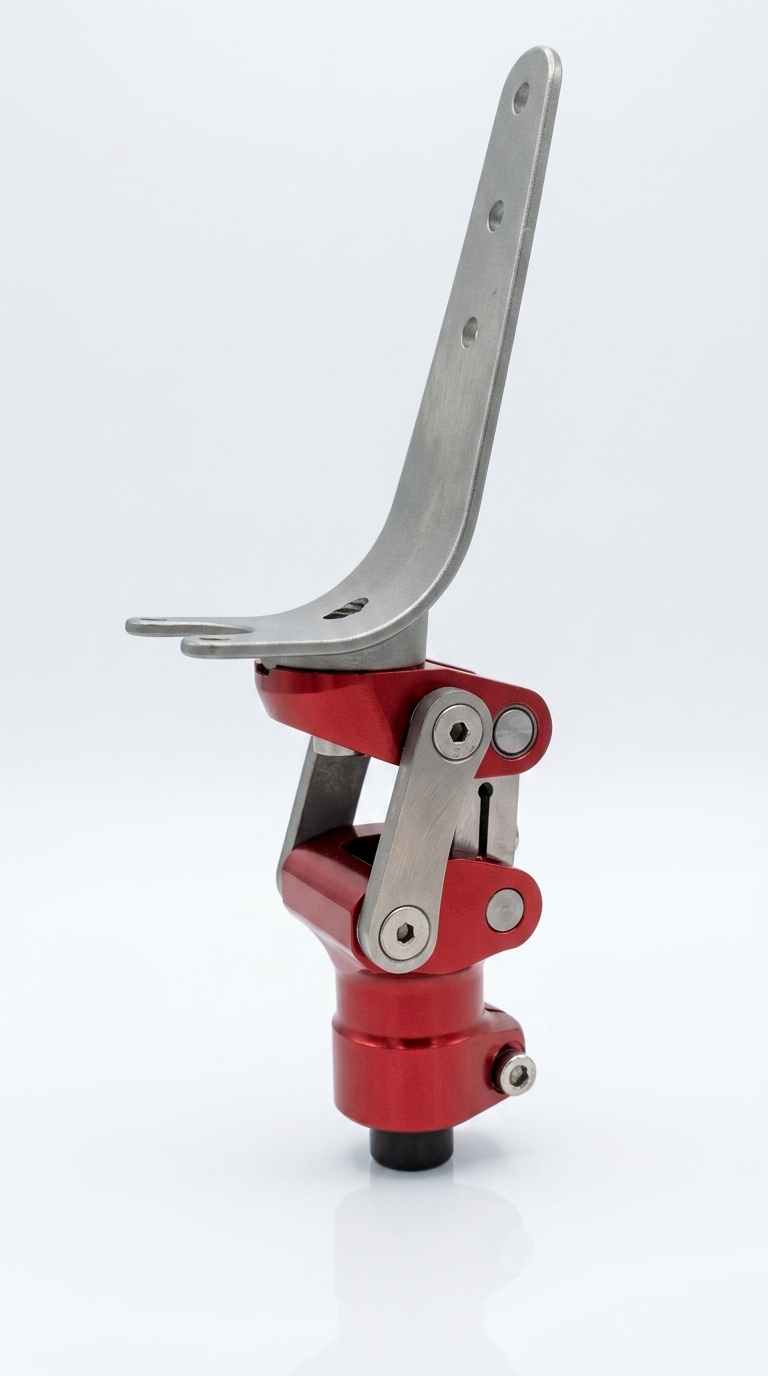

Child Knee Disarticulation knee Joint (Al)

Part Code	Material	Standard	Part Weight	Body Weight Limit
PTO-CH08	Al	Export Quality	310 g	45 kg

Recommendation:
For knee disarticulating (Polycentric)
With mechanical extension assist
For knee disarticulating amputees
Description:
The upper joint section with adjustment core and the lower joint section with anterior and posterior linkage bars. The lamination anchor is the detachable connection to the socket. The stance phase stability is achieved through polycentric kinematic. Extension assist and axial friction are booth adjustable.
With lower functional levels
Normal stability
Not Suitable for insecure amputees and those with higher functional levels

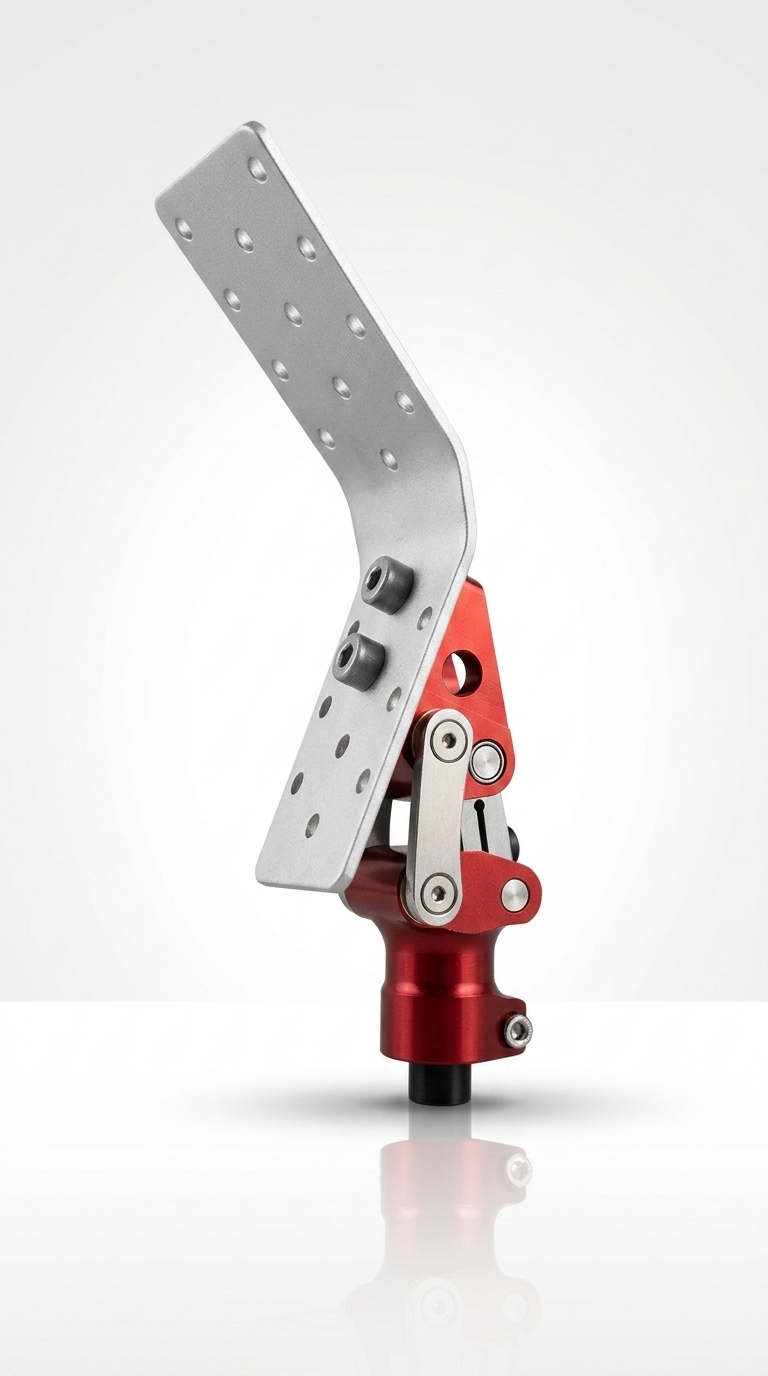

Child Hip Joint (Al)

Part Code	Material	Standard	Part Weight	Body Weight Limit
PTO-CH09	Al	Export Quality	409 g	45 kg

Recommendation:
With adjustment core on both sides
Polycentric
With mechanical extension assist
Description:
Upper and lower joint section is connected with linkage bars. The stance phase stability is achieved with the polycentric kinematic (adjustable of the instant center of rotation by adjustment of the stop). The step-less adjustment of the axis friction and of the extension assist spring controls the swing phase.
For trans-femoral amputees
With moderate functional levels
Medium stance and swing phase stability
Not Suitable for amputees with higher functional levels.

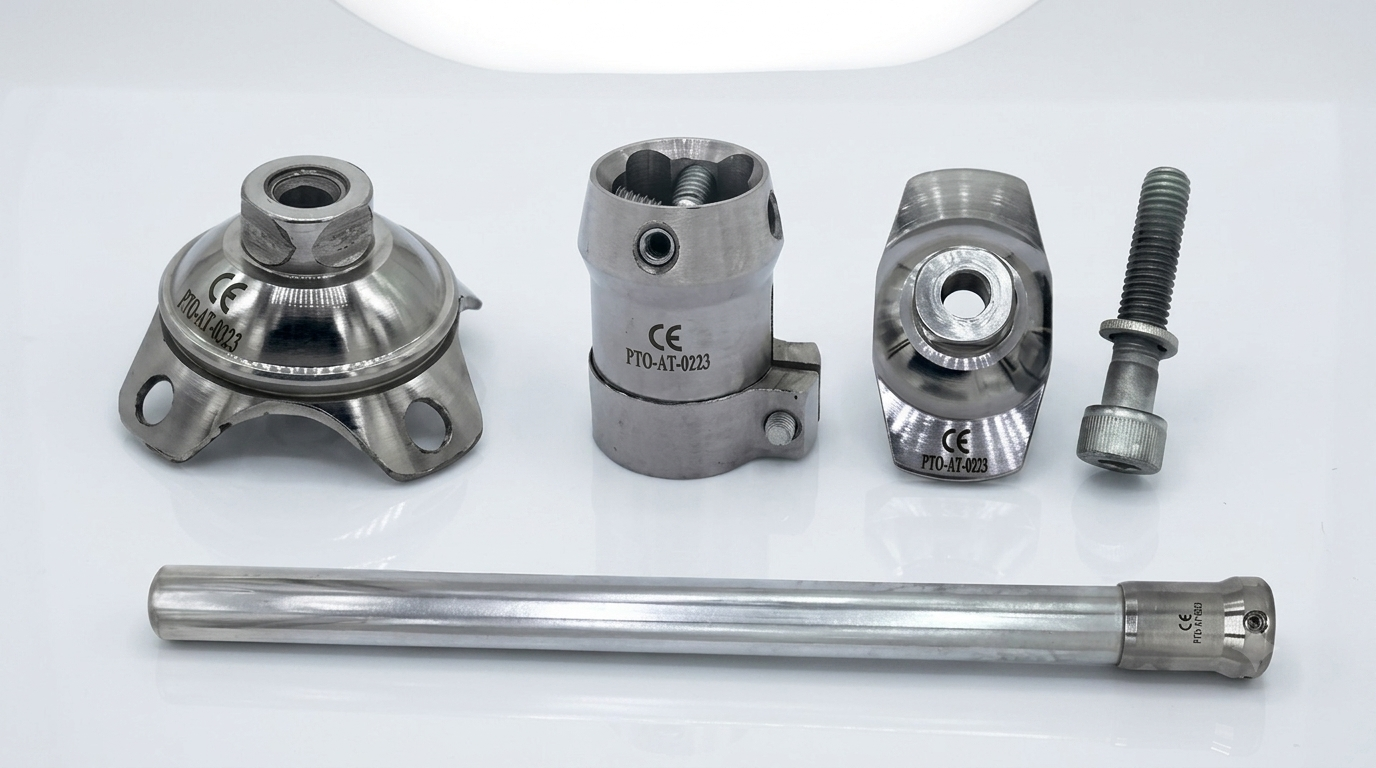

Child Below Knee Export Quality Kit -SS

Part Code	Material	Standard	Part Weight	Body Weight Limit
PTO-CH10	S.Steel	Export Quality	295 g	45 kg

Includes
Four prong Adapter ( ) PTO-CH02
Adapter to clamp the tube (PTO-CH03)
Pylon with integrated adapter (PTO-CH07)
Foot adapter (PTO-CH06)

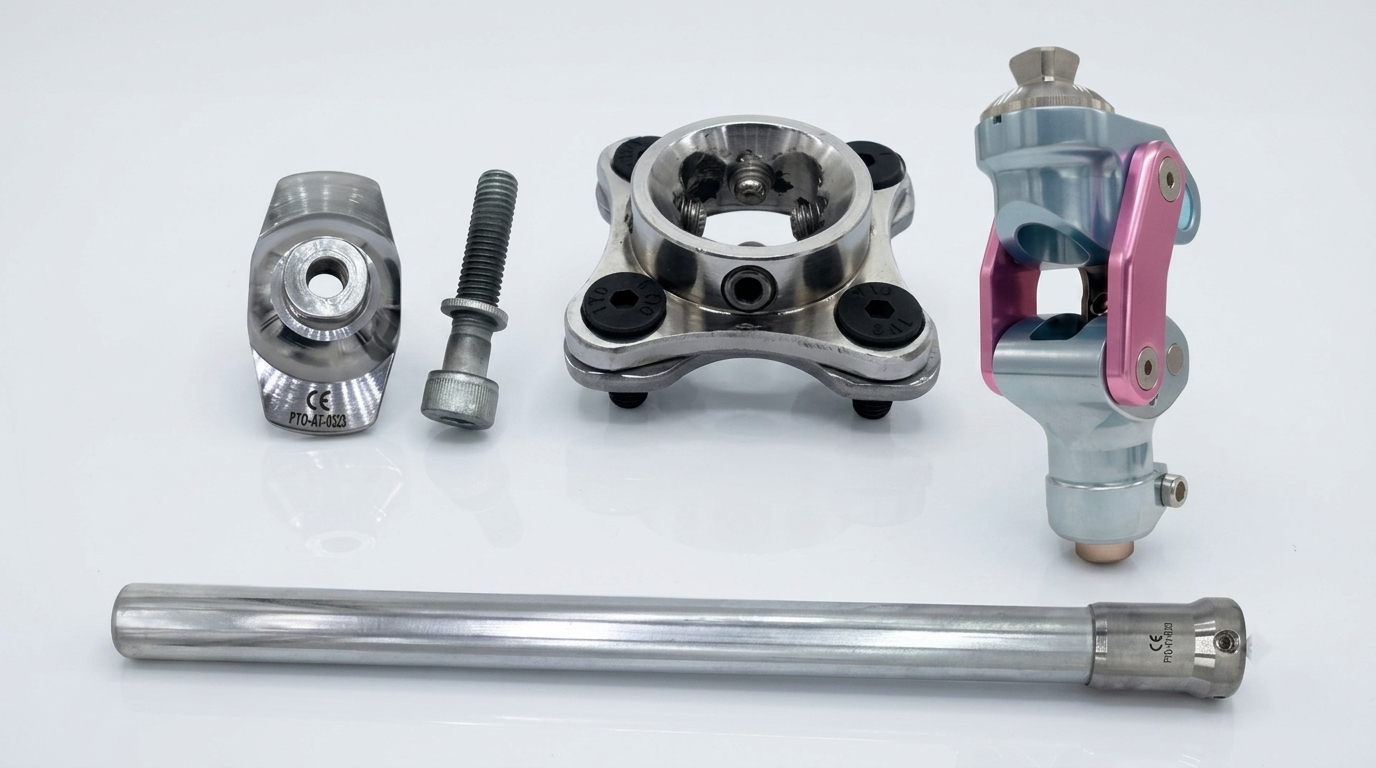

Child Above Knee Export Quality Kit- SS

Part Code	Material	Standard	Part Weight	Body Weight Limit
PTO-CH11	S.S & Al	Export Quality	1.17 kg	45 kg

Includes
Socket Adapter (Pyramidal Receiver-Flat type) with four holes, Base plate & attached Screws (PTO-CH04-1)
Polycentric knee joint (PTO-CH01) ¦Pylon with integrated adapter (PTO-CH07) ¦Foot adapter (PTO-CH06)
