Tube Adapters

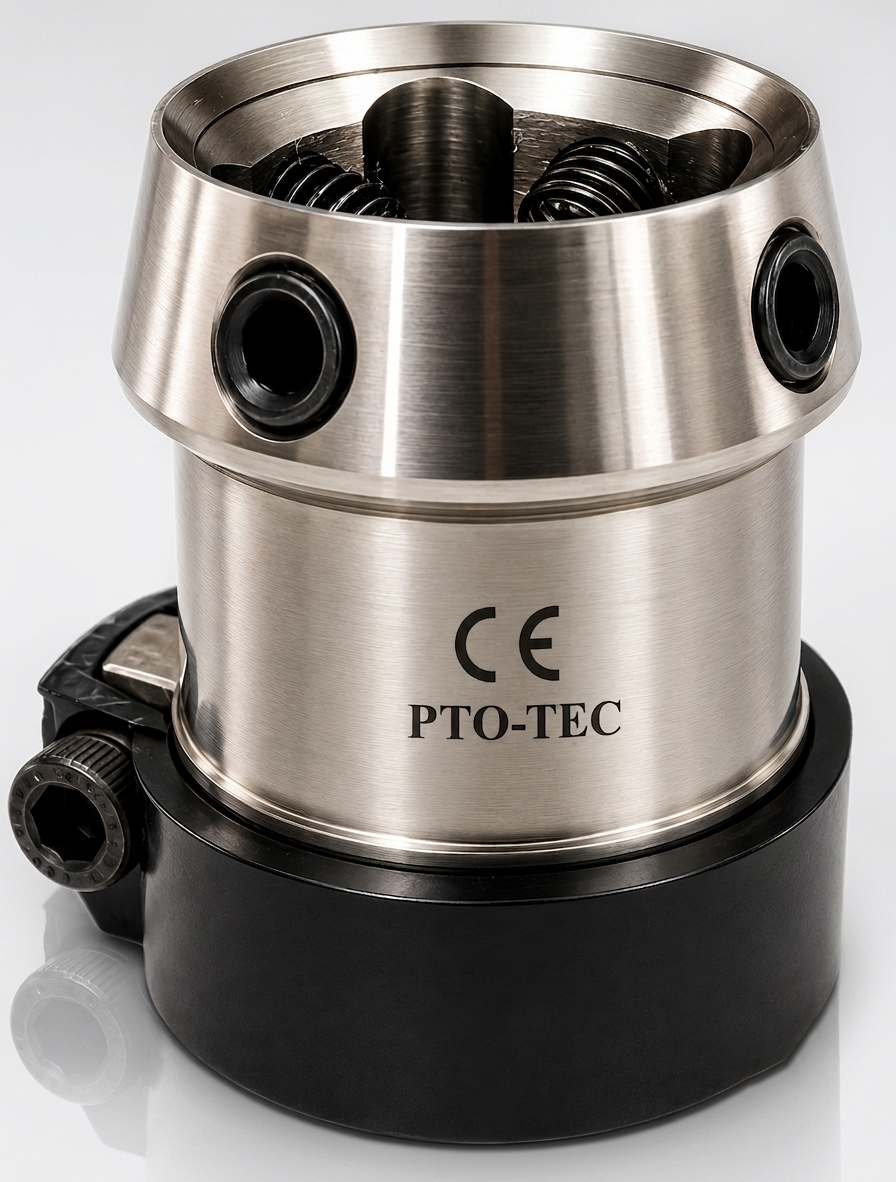

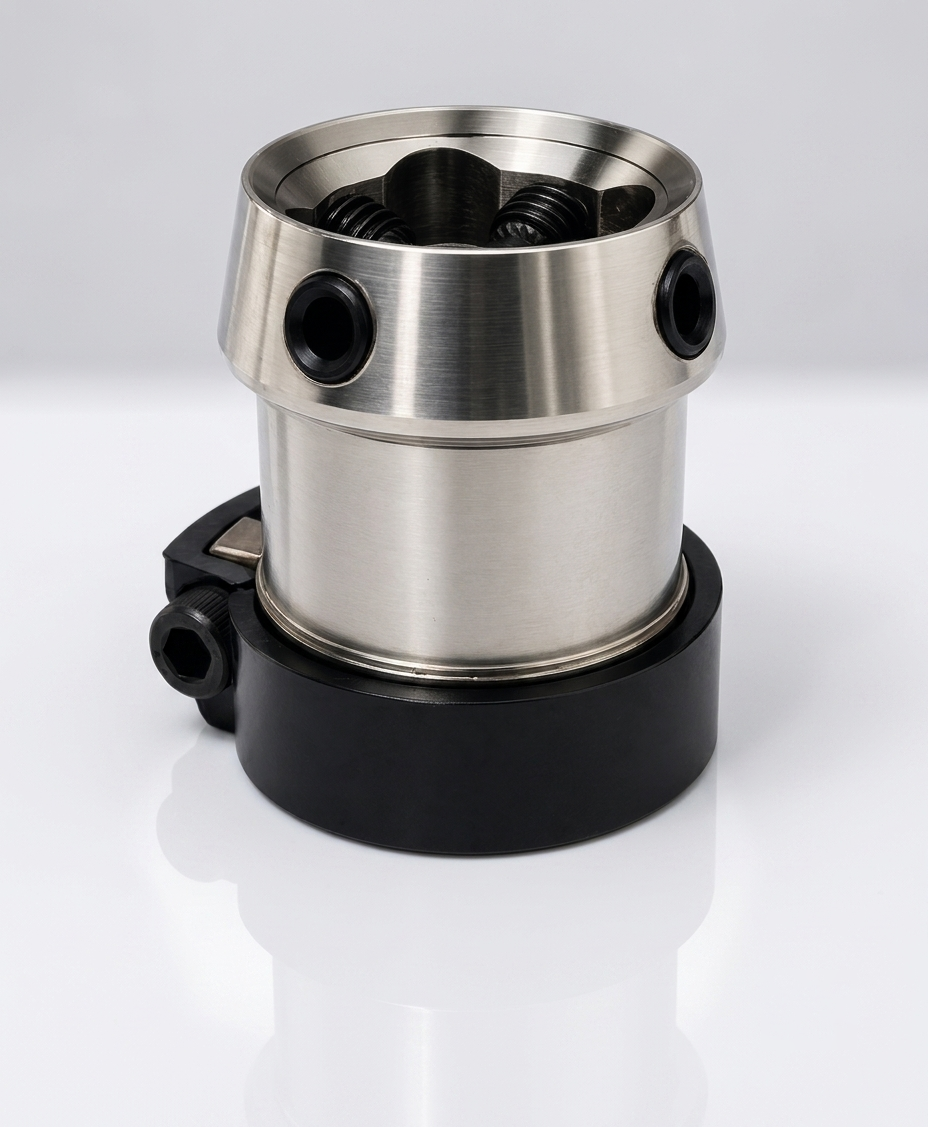

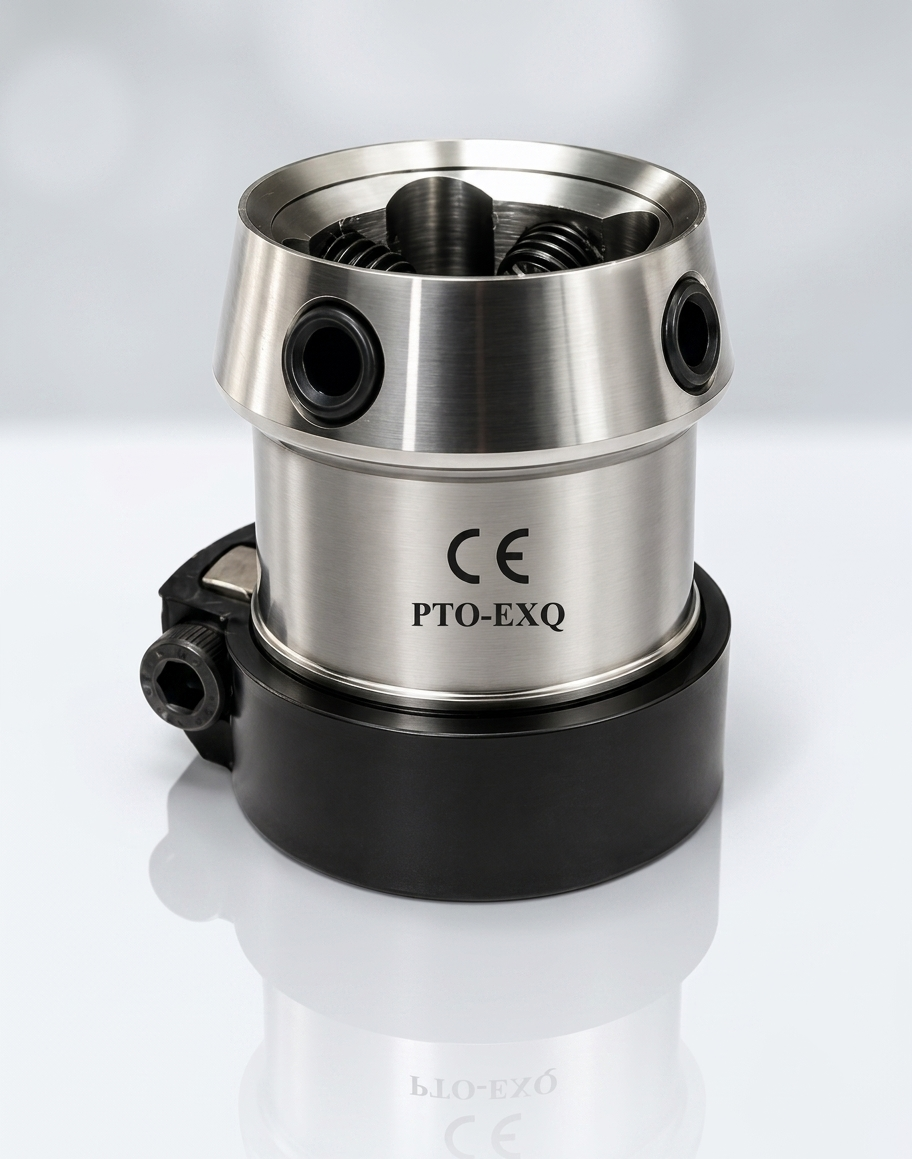

Tube Clamp Adapter

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-11ECO	C. Steel	100 g	Economic	100 kg
PTO-11EXQ	S. Steel	100 g	Export Quality	100 kg
PTO-11TEC	Ti	60 g	Elite Class	125 kg

Adapter to clamp the tube (Pyramidal receiver type)- Regular, inner dia 30 mm.
With 4 adjustment set screws M8x12.

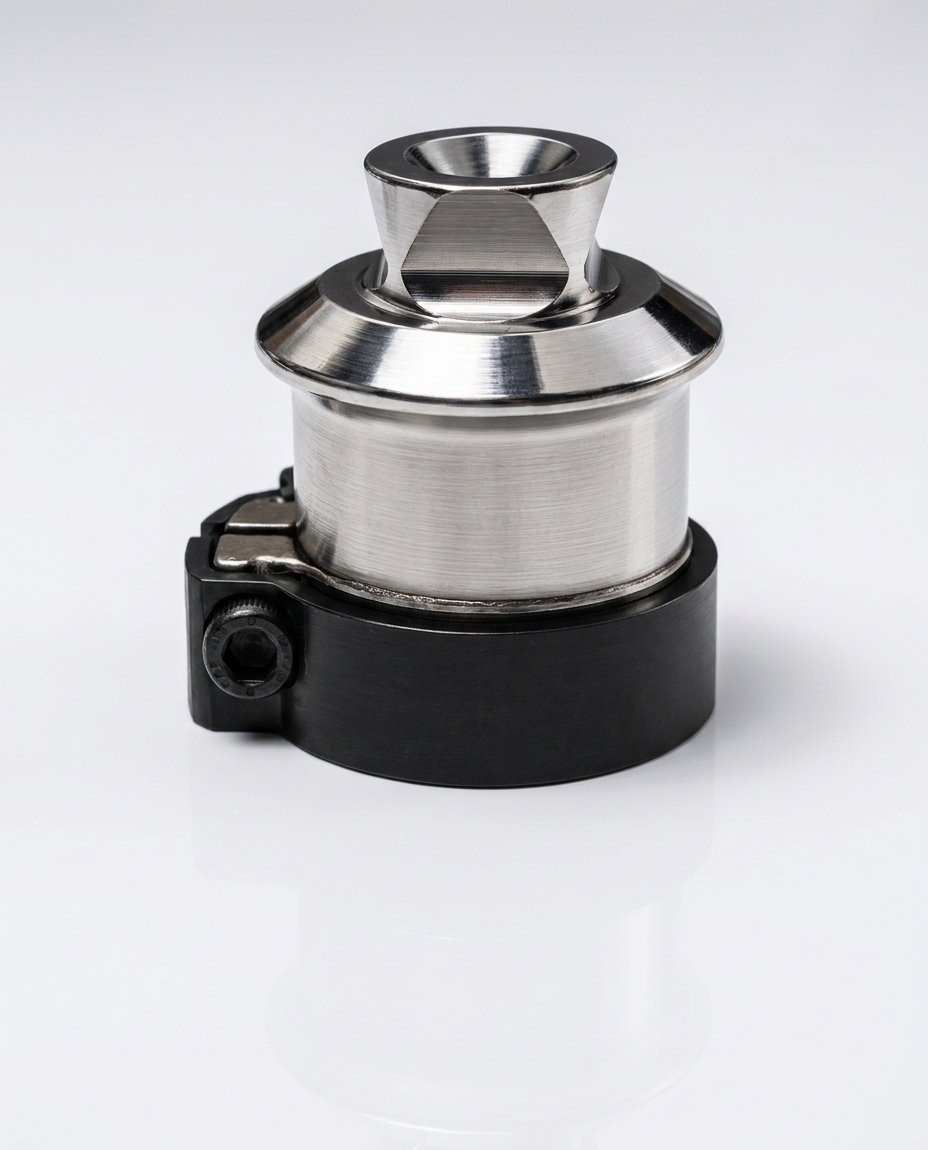

Pyramidal Tube Clamp Adapter

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-12EXQ	S. Steel	90 g	Export Quality	100 kg

Double Adapter (one side Pyramid, other side tube receiver, dia 30 mm).

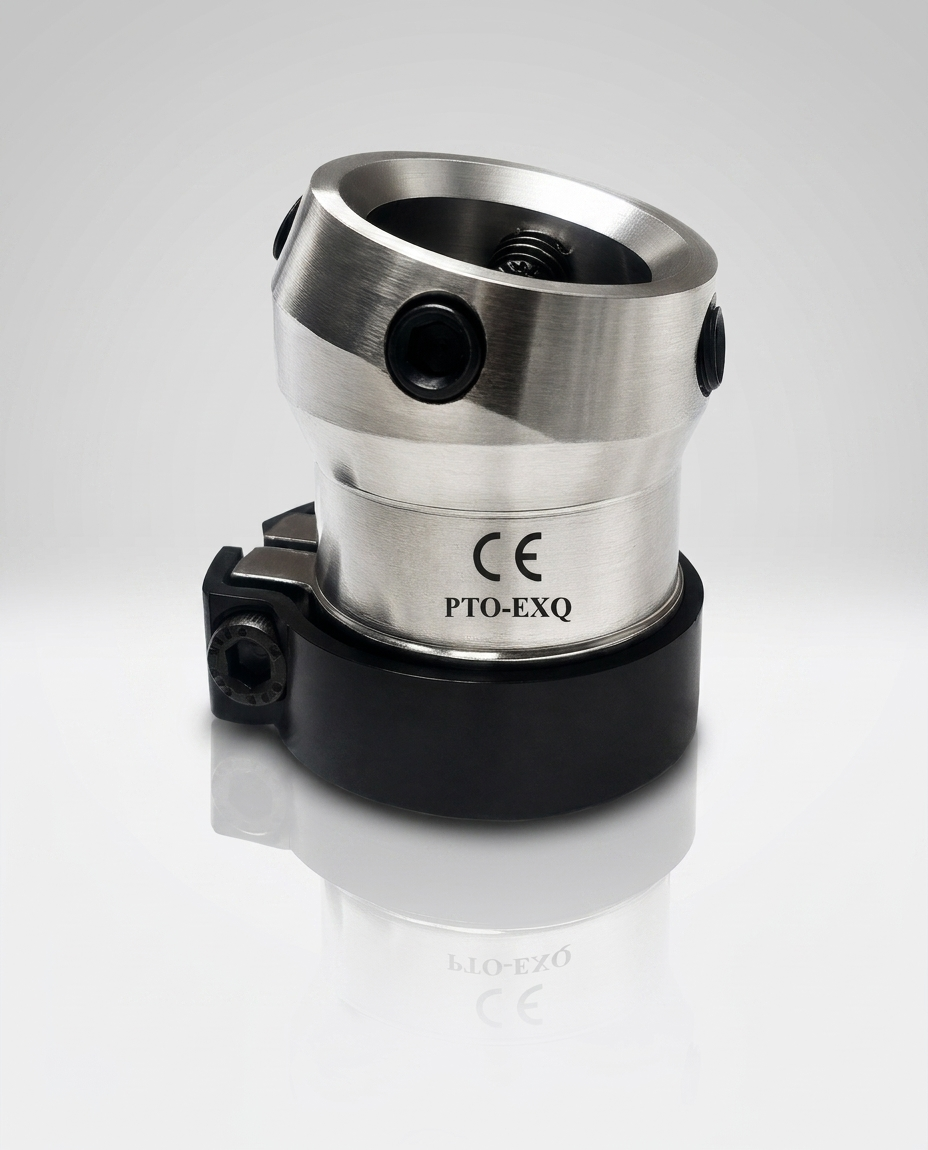

Angular Tube Clamp Adapter

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-13EXQ	S. Steel	70 g	Export Quality	100 kg

Angular Adapter to clamp the tube (15 degree tilt) (one side Pyramid receiver, other side tube receiver, dia 30 mm) With 4 adjustment set screws M8x12.

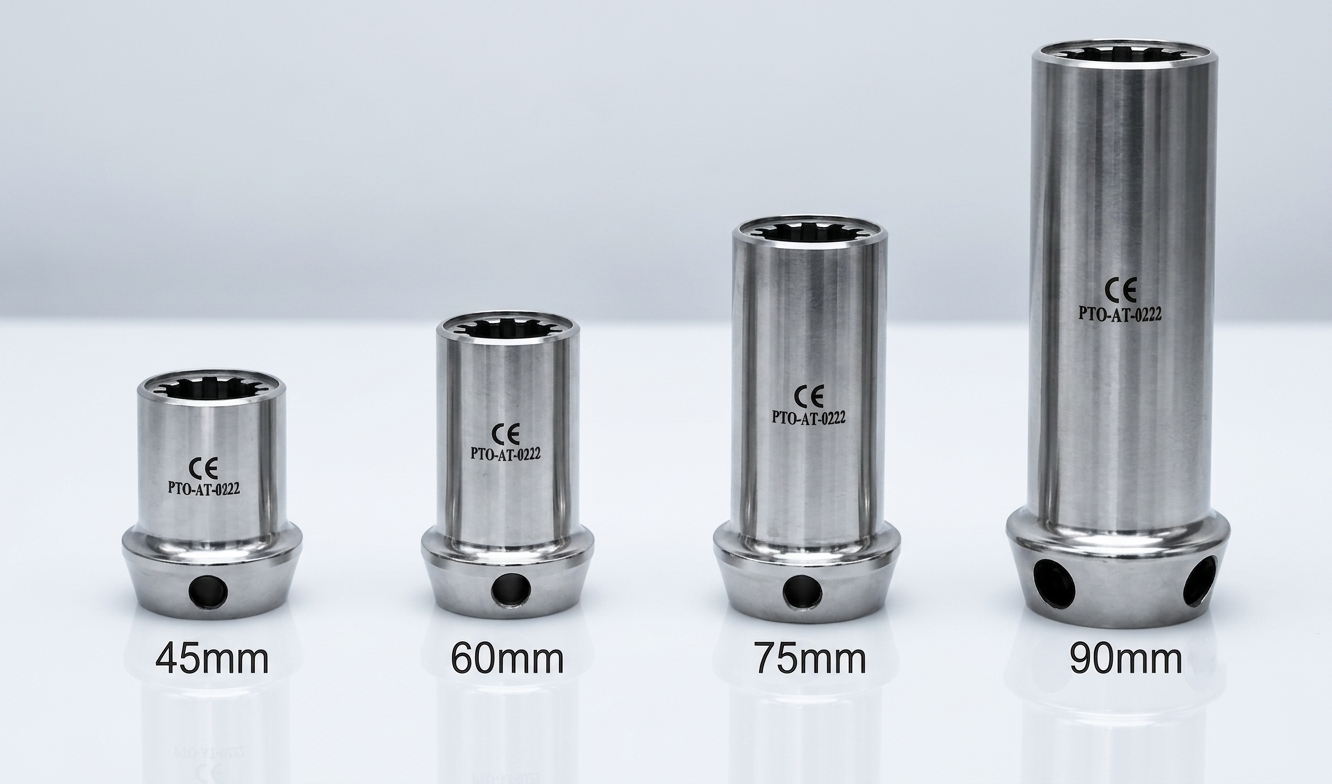

Adapter To Replace the tube

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-14/45EXQ	S. Steel	80 g	Export Quality	100 kg
PTO-14/60EXQ	S. Steel	95 g	Export Quality	100 kg
PTO-14/75EXQ	S. Steel	110 g	Export Quality	100 kg
PTO-14/90EXQ	S. Steel	125 g	Export Quality	100 kg

Adapter to replace the tube- length 45/60/75/90mm (dia-30mm)
Above replace the tube and below pyramidal Receiver
With 4 adjustment set screws M8x12.
For connection between two adjustment cores.

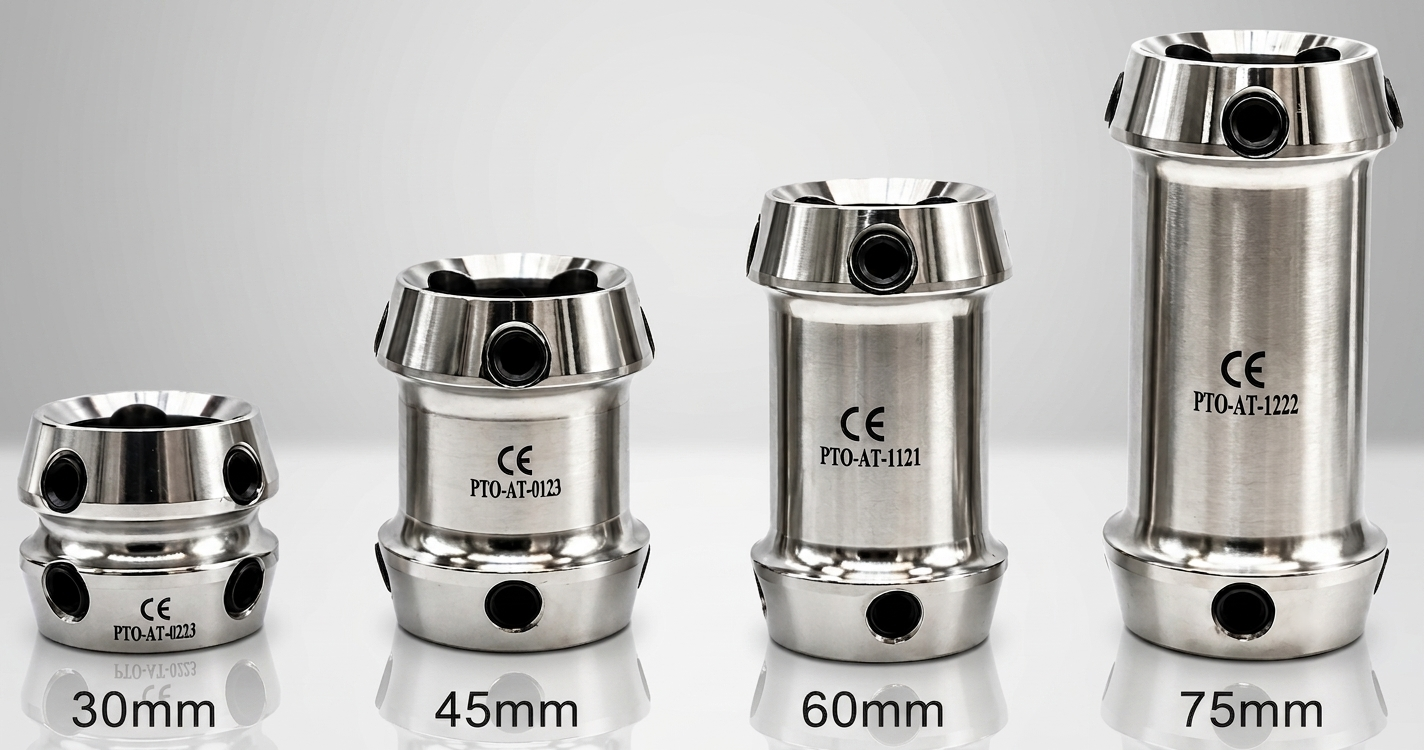

Double Mouth Adapter

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-15/30EXQ	S. Steel	97 g	Export Quality	100 kg
PTO-15/45EXQ	S. Steel	113 g	Export Quality	100 kg
PTO-15/60EXQ	S. Steel	137 g	Export Quality	100 kg
PTO-15/75EXQ	S. Steel	141 g	Export Quality	100 kg

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-15/30TEC	Ti	55 g	Elite Class	120 kg
PTO-15/45TEC	Ti	65 g	Export Quality	120 kg
PTO-15/60TEC	Ti	100 g	Export Quality	120 kg
PTO-15/75TEC	Ti	110 g	Export Quality	120 kg

Double mouth Adapter- length 30/45/60/75mm (dia- 30mm)
(both side pyramid receiver).
With 8 adjustment set screws M8x12.
For connection between two adjustment cores.

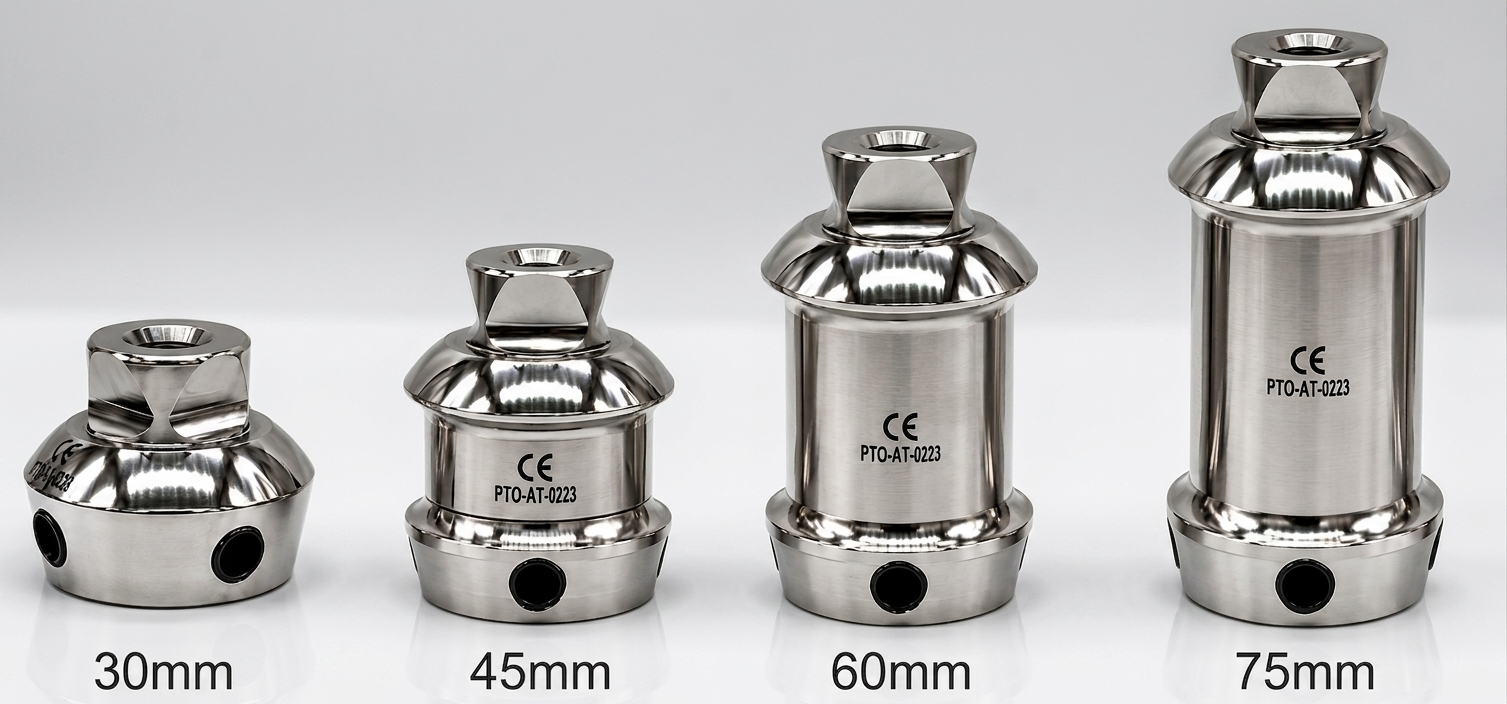

Double Sided Mouth Adapter

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-16/30EXQ	S. Steel	90 g	Export Quality	100 kg
PTO-16/45EXQ	S. Steel	103 g	Export Quality	100 kg
PTO-16/60EXQ	S. Steel	119 g	Export Quality	100 kg
PTO-16/75EXQ	S. Steel	156 g	Export Quality	100 kg

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-16/30TEC	Ti	55 g	Elite Class	100 kg
PTO-16/45TEC	Ti	65 g	Elite Class	100 kg
PTO-16/60TEC	Ti	100 g	Export Quality	100 kg
PTO-16/75TEC	Ti	110 g	Elite Class	100 kg

Double sided mouth Adapter- length 30/45/60/75mm (dia30mm) (one side pyramidal, other side pyramid receiver).
With 4 adjustment set screws M8x12.
For connection between two adjustment cores.

Shifting Adapter Moveable

Part Code	Material	Part Weight	Standard	Body Weight Limit
PTO-17EXQ	S. Steel	103 g	Export Quality	80 kg
PTO-17ALEXQ	Al	92 g	Export Quality	125 kg
PTO-17TEC	Ti	78 g	Elite Class	125 kg

Shifting Adaptor (Moveable)
Both side Pyramid Receiver, dia 30 mm
With 4 adjustment set screws M8x12.
